Product Details:
|
Machine Name: | Automatic Sealing Machine | Max Size: | 2500*4000 |
---|---|---|---|
Glass Thickness: | 58 Mm | Machine Type: | New |
Using Way: | Sealing Insulating Glass | Warranty: | 1 Year |
Brand: | LIJIANG GLASS | ||
High Light: | Insulating Glass Sealant Extruder,58mm Glass Sealant Extruder,Insulating Glass Sealant Robot |

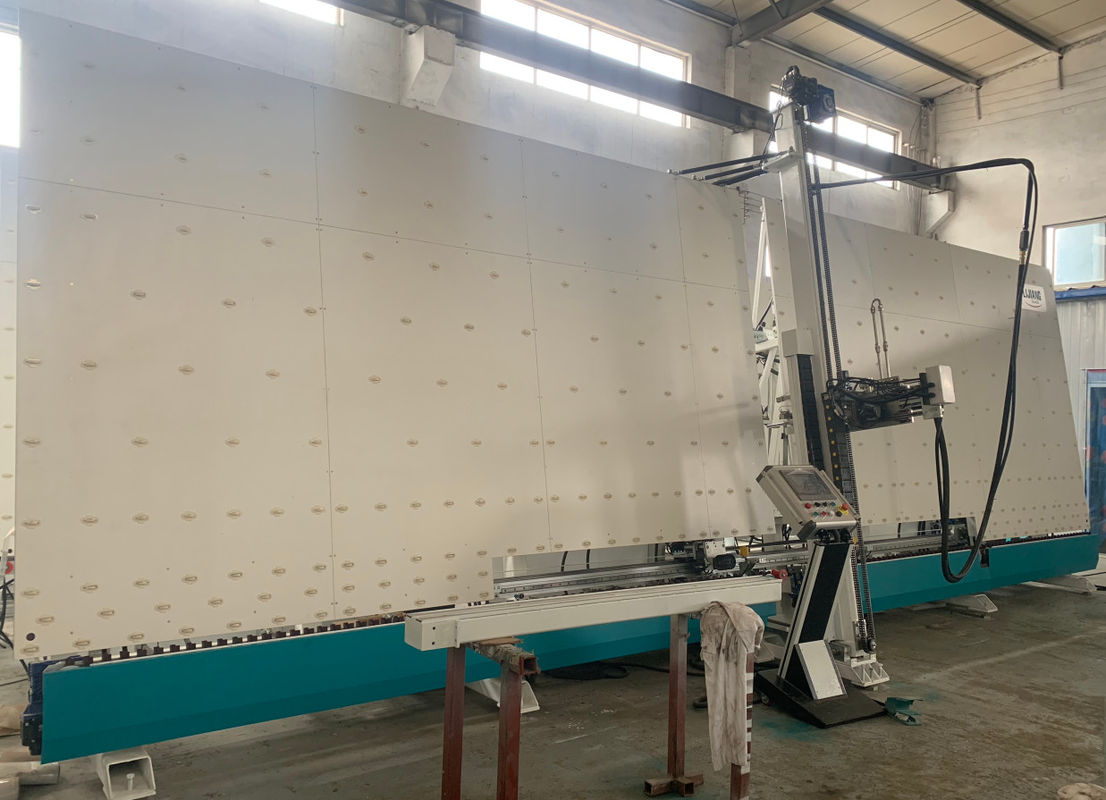

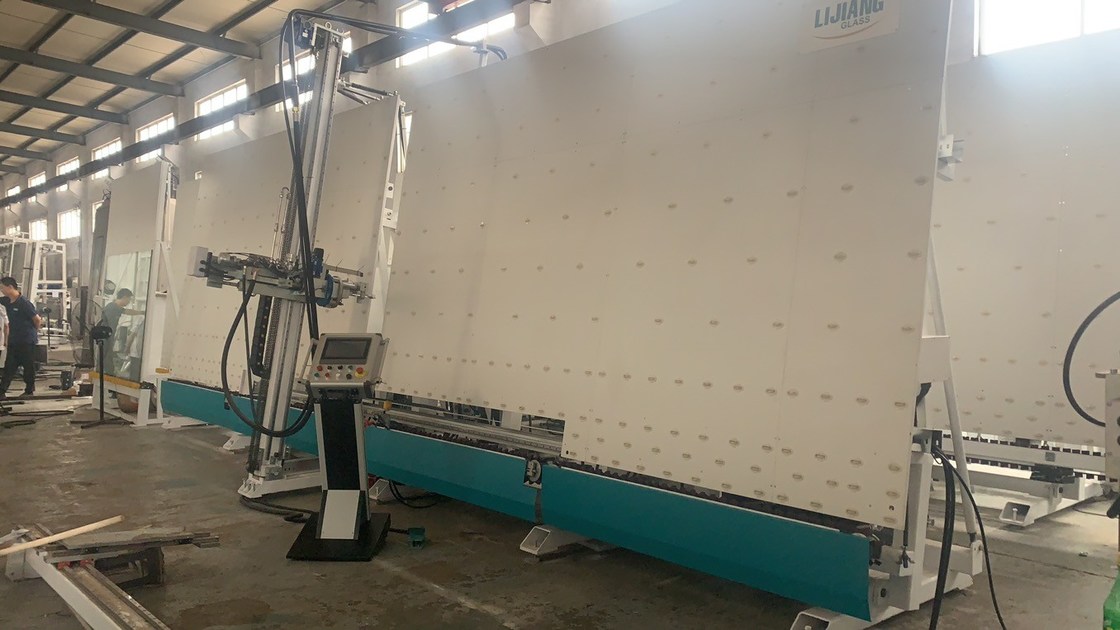

Automatic Vertical Insulating Glass Sealants Sealing Robot Machine
一. Specification
Model | LJTJ2540D |
Voltage Power | 380V 13KW |
Air Pressure | 0.5~0.7Mpa |
Extruding pressure | 32Mpa |
Max.Glass size | 2500*4000mm |
Min.Glass size | 400*300mm |
Glass thickness | 12~56mm |
Working speed | 5~40m/min |
Overall dimension | 11000*1500*4500mm |
2.2 Machine Noise
A-weighted sound pressure level | |
Stand-by state | Working state |
50 db | 85 db |
二. Function and feature
1.The machine is suitable for glass deep processing enterprise ,high automation, Reduce labor intensity, save manpower, improve production efficiency
2. Whole machine adopt man-machine touch screen interface,with memory function .
3.After coating sealant ,the glass edge and corner is full without air bubbles , smooth surface, no need to pare the corner
4. Using two sets of independent sealant supply system ( including the mixing device ), two kinds of sealants switch fast ,in one-button operation easily (Model II)
5.The width of machine is 1.5m ,small floor area, save space
6. The third section can prestore glass to improve the efficiency effectively
7.The smallest insulating glass size can be processed is 400*300mm
8.Equipped anti blocking device in the mixer
9. Servo control system adopts world famous brand (Japan YASKAWA ), the performance is stable
10. Shaft transmission to make the glass being transferred smoothly with accurate positioning.
11. Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass edge clean ,V type Block is changeable .
12. The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability
13.Suitable for triple glazing .
14.Conveying wheel on backboard adopts embedded wheel ,to make sure the glass be transported smoothly
Main Features:
• Japan Yaskawa servo system control, full automatic and high-efficiency sealing machine
• 4 sections, can storage glass
• Adopt timing belt, smooth transfer and accurate position
• Automatically repair glass corners with scraper and roller
• Automatically measure glass size, glue depth (30mm)
• Every auto-function is with manual operation
• Can coat double glass
• Shape glass with optional edges, step glass, triple glass (Optional)
• One set of booster pump controls two groups of sealants (Optional)
• Can use silicone, polysulfide and silicone structural sealants
• Glue head is in the front of the machine, which is easy for coating step glass
• Can be connected with insulating glass processing line
• With code scanning function (Optional)
Technical data
Max. glass size | 2500*4000mm |
Min. glass size | 400*300mm |
Glass thickness | 12-50mm |
Working speed | 5-40m/min |
Air pressure | ≥0.6MPa |
Squeeze pressure | 32MPa |
Voltage power | 380V 15kw |
Overall dimension | 11000*2000*3500mm |
Electrical parameters
NAME | ORIGIN | BRAND |
Servo motor | Japan | YASKAWA |
Servo driver | Japan | YASKAWA |
CPU | Japan | YASKAWA |
Low voltage component | Germany | SIEMENS |
Guideway | Taiwan | HIWIN |
Switching power supply | Taiwan | MW |
Sensor switch | Korea | AUTONICS |
Pneumatic component | Japan | SMC |
Touch screen | China | GAOSHAN |
Servo motor | Japan | YASKAWA |
Servo driver | Japan | YASKAWA |
Related product of LIJIANG GLASS
Glass 200KG 400kg 600kg 800kg Cantilever Jib Crane for insulating glass lamilated glass
Glass Cantilever Crane with lifting sucker
1.Suitable for moving insulating glass, tempered glass, glass curtain wall, on-site construction of glass deep processing and
solar photovoltaic glass.
2.Maximum bearing capacity is 300Kg, Max. glass size can reach to 8m (Length)×4m(width).
3.It can turn the glass with various degree.
4.Equipped with gas storage function, the machine can continue working 20 minutes without gas.
Parameters:
Max Glass weight | 500KG | |
Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
Suction cups | 6 Pieces | |
Cup Materials | Silicone | |
Sliding method | Manual | |
Column height | 4 meters | Gas storage function |
Arm length | 4 meters | |
Air Control parts | Airtac |
Max Glass weight | 400KG | |
Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
Suction cups | 2 pieces | |
Cups Materials | Silione | |
Sliding method | Manual | |
Column height | 4 meters | Gas storage function |
Arm length | 4 meters | |
Air control parts | Airtac |
Max Glass weight | 360KG | |
Rotation angle | 90° | Left and Right |
Suction cups | 4 Pieces | |
Cups Materials | Silicone | |
Sliding method | Manual | |
Column height | 4 meters | Gas storage function |
Arm length | 4 meters | |
Air control parts | Airtac |
Max Glass weight | 360KG | |
Rotation angle | 90° | Left and Right |
Suction cups | 4 Pieces | |
Cups Materials | Silicone | |
Sliding method | Manual | |
Column height | 4 meters | Gas storage function |
Arm length | 4 meters | |
Air control parts | Airtac |
Useing For
- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.
Vacuum glass electric suction cup lifter KX4
Product Name
|
Pneumatic Glass Vacuum Lifter
|
||
Suction cup size mm
|
300mm (unified standard suction cup size, each device can be used in common)
|
||
Single suction cup bearing KG
|
100KG (the actual test load can reach more than 180KG)
|
||
Rotation function
|
360° manual rotation (special labor-saving device, safe and reliable, easy to operate)
|
||
Flip function
|
90° pneumatic flip
|
||
Voltage DC
|
DC12V (built-in 2 batteries for long battery life)
|
||
Endurance
|
It can be used for 3-5 days after one charge, and 2 batteries can be used alternately
|
||
Extension rod MM
|
500MM (length of one side, special glass specifications can be customized)
|
||
Control System
|
Wired remote control suction and release, wireless remote control optional.
|
||
Customizable
|
Note: It can be customized according to your company's specific process requirements, work-piece size and weight.
|
||
Weight standard
|
Conventional glass weight = length × width × thickness × glass density 2.5÷1000 000 = glass weight
Example: 3660×2440×19×2.5÷1000 000=424KG |
||
Safety Factor
|
According to the European CE safety regulations on lifting equipment and the safety regulations in the German accident prevention regulations UVV 18 and VBG 9a, the best safety factor for vacuum spreaders is 2.0. For example, the single suction force of the FSRL280 suction cup is 3139N, divided by the safety factor 2.0 , The load is 1570N.
|
As professinal Insulating glass machine manufacture in China,except material such as Moleculaer sieve and aluminum spacer and sealant . We are good at develping and producing automatic vertical insulaing glass processing production line ,vertical low-e glass egde deleting machine,automatice robot insulaiting glass production line and so on.
