Product Details:
|
| Name: | Butyle Rubber Extruder Insulating Glass Machine | Voltage: | Customerized |
|---|---|---|---|
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Dimension(l*w*h): | 2800*700*900 Mm | Weight: | 750 Kg |
| Power(w): | 5.7 Kw | Warranty: | 1year |
| Application: | Extruding The Hot Melt Butyl Into Insulating Glass | Color: | Blue Or Customize |
| Usage: | Butyl Rubber Coating | Function: | Double Glass Aluminum Spacer |
| High Light: | IG Butyl Extruder Machine,Double Glass Butyl Extruder Machine,IG glass Butyl Coating Machine |
||
IG butyl extruder machine Butyl coating machine for double glass processing

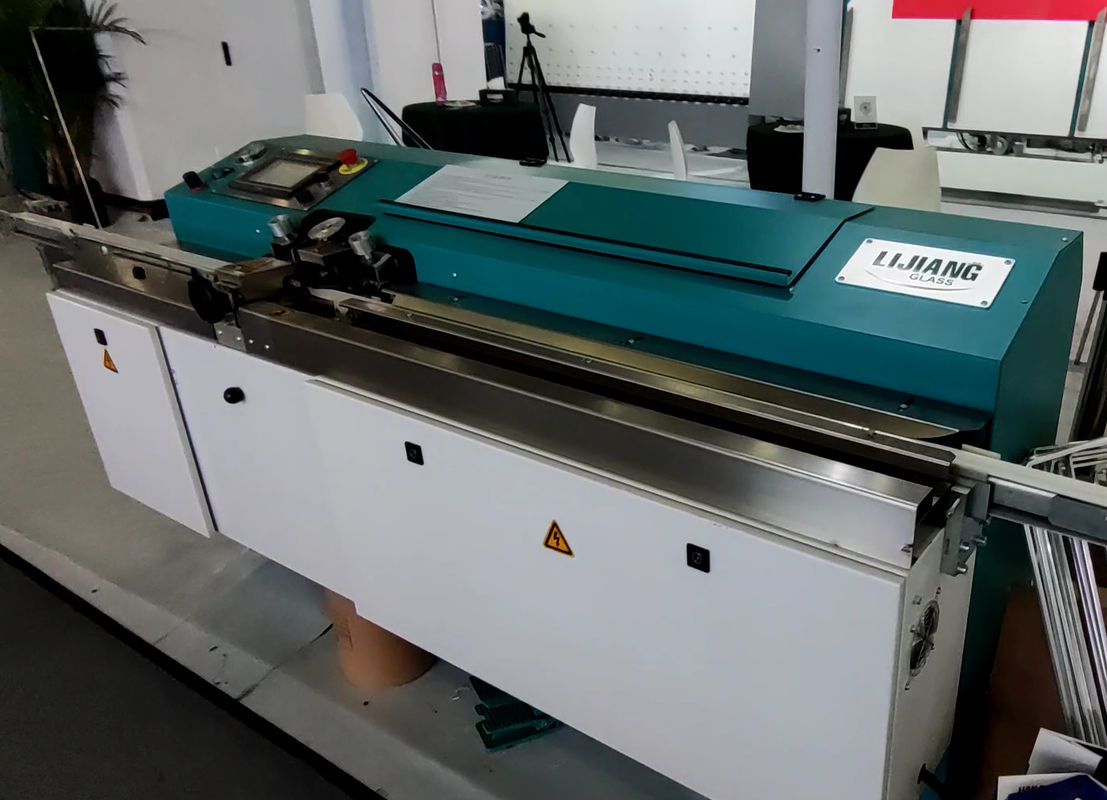

Butyl Extruder Machine LJTB01
Application:
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment uses large electrical control panel which makes the operation more easier than before. The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now. The butyl extruder is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier. The height of squeezing head can be adjusted automatically according to different kinds of aluminum spacers. Finally, the butyl extruder has reached the worldwide technology with the characteristic of complete functions and stable working mode.
Equipment details:
Main Features:
• PLC control system, touch screen interface.
• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust.
• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full .
• Fast preheat, improve work efficiency.
• With preheating function.
• With exhaust inflatable function, improve the quality of sealing and save time for plastic.
• Quickly coating speed,can up to 47m/min.
• Saving the amount of glue.
Technical data :
Electrical parameters :

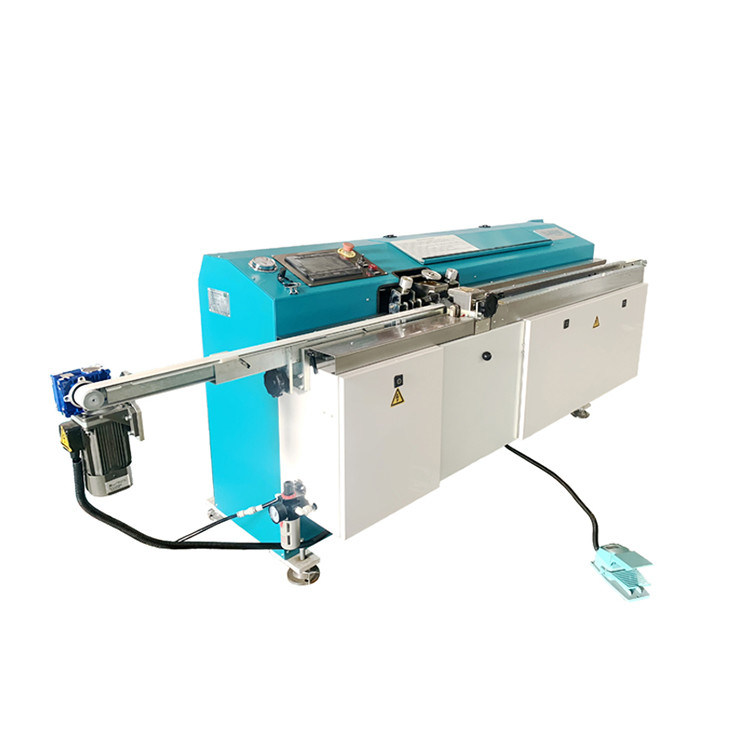

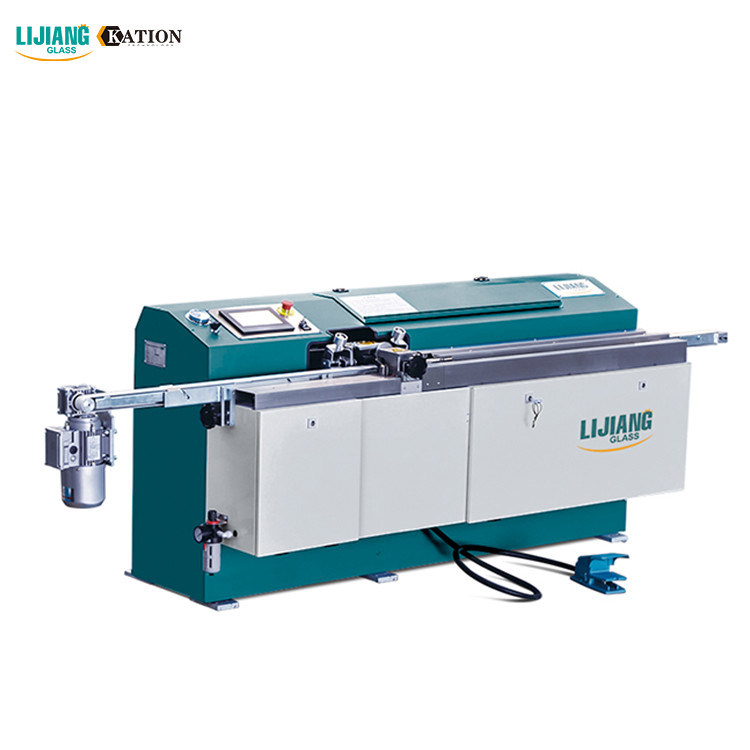

Butyl Extruder Machine LJTB03
Main Features:
• PLC control system, touch screen interface
• Frequency control system
• Arc frame coating structure
• Imported pneumatic and hydraulic supercharging system
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
Technical data :
Automatic new butyl extruder machine
Fully automatic butyl glue coating machine lays a fully automatic equipment foundation for future glass deep processing.
Technical data :
Equipment details:
Other machinery for double glass processing :
Vertical insulating glass processing line
Vertical insulating air-floating glass processing line
Vertical edge deleting machine
Automatic sealing robot
Automatical desiccant filling machine
Automatical spacer bending machine
High speed butyl extruder machine
Butyl extruder machine
Two pump sealant machine
Automatic vertical loading table
Gantry unloading system for IG line
Freezer
Cantilever crane
Manual gas filling machine
Rotated sealant spreading table
Spacer cutting machine
Molecular sieve filling machine
Aluminum frame transfer machine
Edge finishing machine
