Intelligent Butyl Extruder Machine Automatic Thickness Measurement Simple Operation

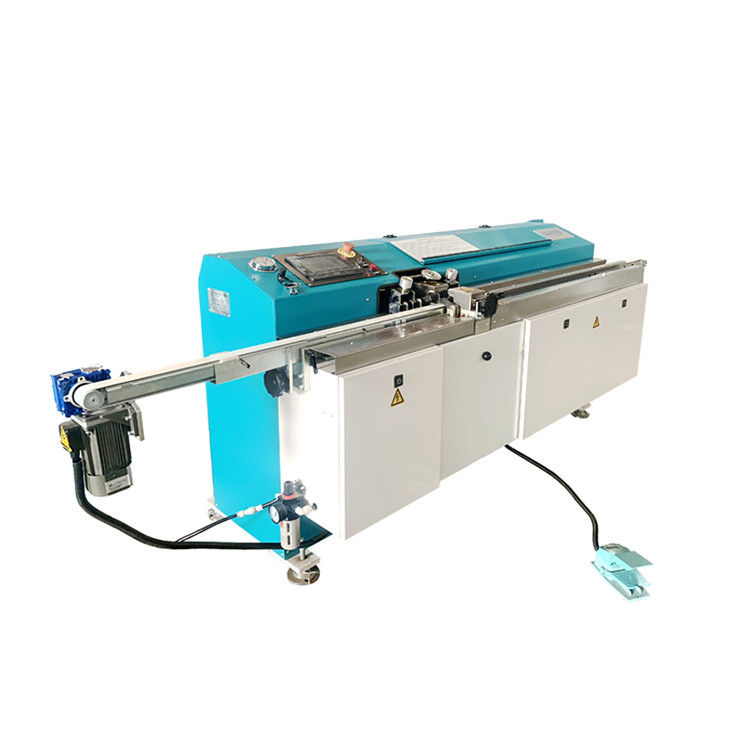

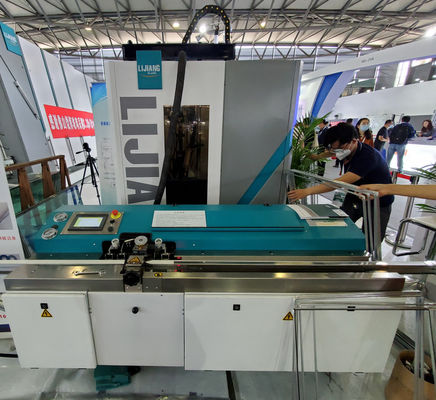

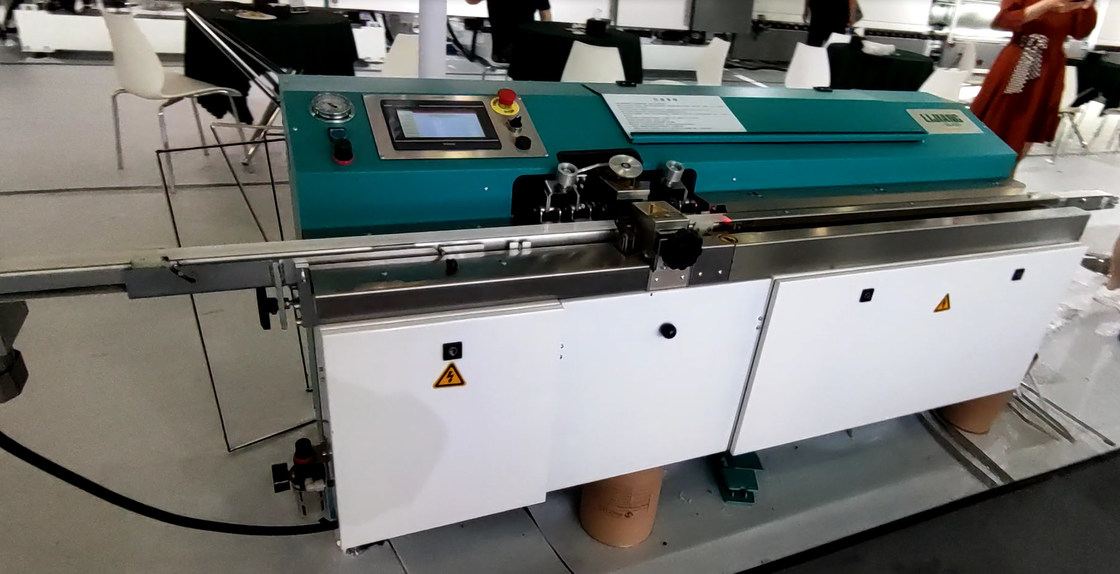

LJTB01 butyl extruder machine is used to apply hot melt butyl to the aluminum spacers of insulating glass evenly. The use of large electrical control panel makes the operation easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min. The squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The machine is energy-saving. The dispensing cylinder uses rotate supporting system and this makes the refill of butyl easier. The system can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.

Main feature Touch-screen operation which makes the machine simple and practical Rectangle & arc frame , decorative aluminum fram can be coat Auto-measure the width of spacer, auto-adjust the distance of nozzle Auto-centering and auto clamping The wheel material is Teflon brand ,non-stick coating, non-adhesive belt The crossbeam height is easy to adjust,we can control the height of butyl Nuzzle height can be adjust, solve the gap between spacer and butyl The coating speed is up to 47m/min,save butyl is up to 30％ (double side standard is 7-8g, our machine can do 4g thickness is 1-1.5mm ,width 3mm) Glue output and height is same level. Alarm device when use out of butyl Pre-heating function,set up a regular time before . Glue cylinder stands upside,easy to change glue Germany HAWEI brand pressure can up to 25MPa,The pressure is stable that can make the glue was coating evenly The front roller and the back roller are used for rectangular frame, the Arc roller is used for circular frame. Electrical components are used famous brand Pneumatic and Hydralic supercharging pump -German Maximator brand control the pressure of outlet oil strongly. Pressure valve German HAWE brand with high pressure resistance, keep the butyl well proportioned Pneumatic component -Taiwan Airtac Relay Japan OMROM Japan quick-opening valve make sure the both sides of nozzle open and close at the same timeAPPLICATION
