Product Details:
|
| Name: | Vertical Glass Washing Machine | Glass Conveyor Speed: | 15m/min |
|---|---|---|---|
| Water Supply: | Water Consumption:0.5t/h Conductivity：40μs/cm | Air Pressure: | ≥0.8MPa |
| Min.glass Size: | 280*450mm | Glass Thickness: | 3-15mm |
| High Light: | Strong Vertical Glass Washing Machine,OPEN TOP Vertical Glass Washing Machine,OPEN TOP Glass Wash Machinery |
||

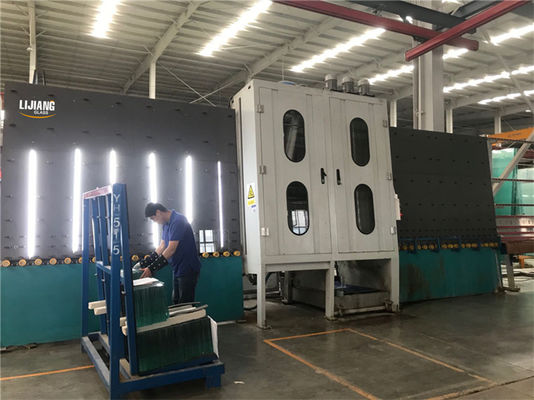

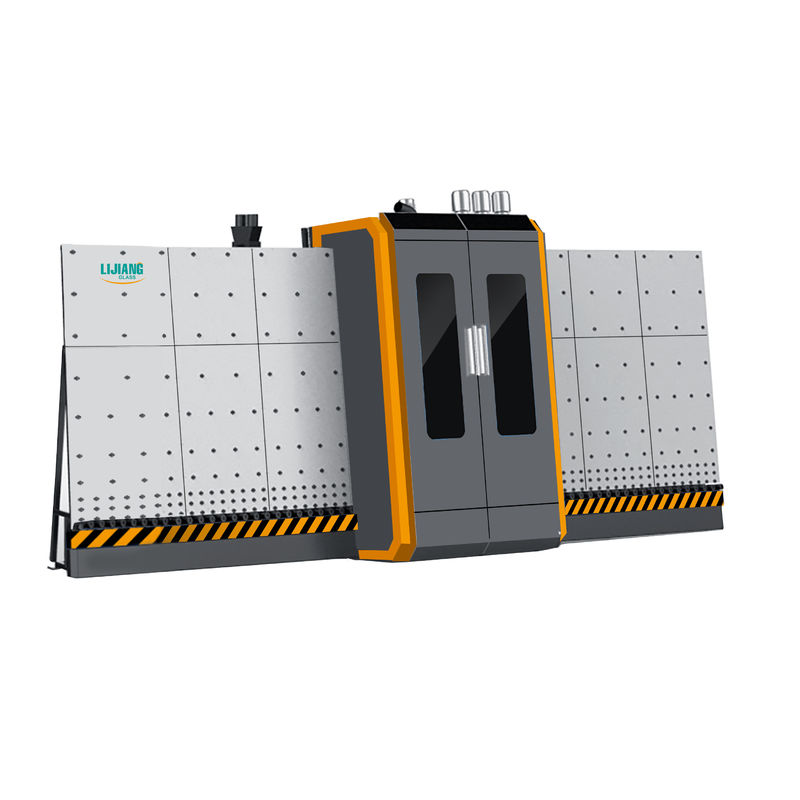

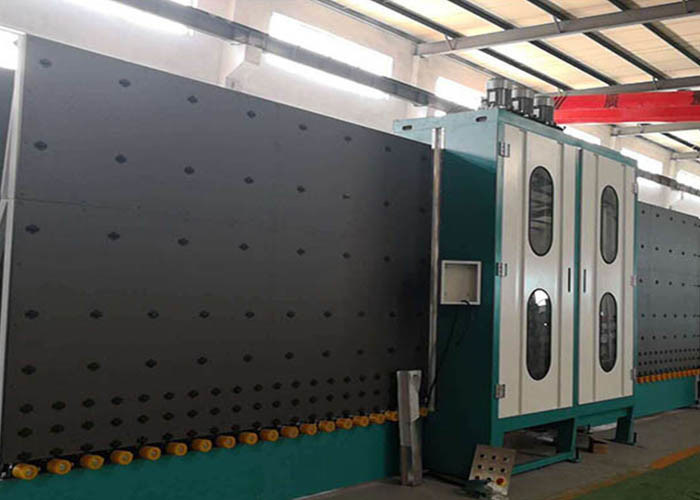

Vertical glass washing machine 2500
Main feature:
• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass
• Pre-washing (Optional)
• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted
by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure
that each screw is not loose, and avoid the resonance of the air knife.
• The air knife can automatically adjust the width of the air knife according to the thickness
• The operation box with washing speed display, can accurately display washing speed (8-10m)
• Water tank automatic temperature control, water replenishing system
• European silencer system

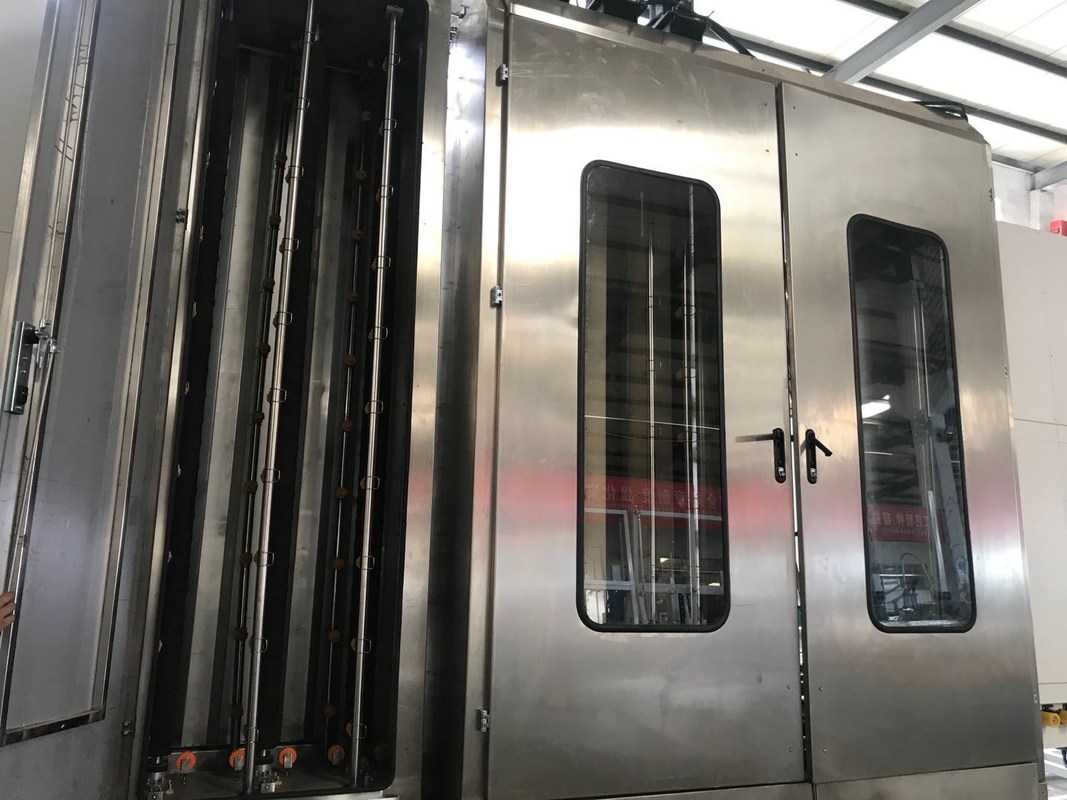

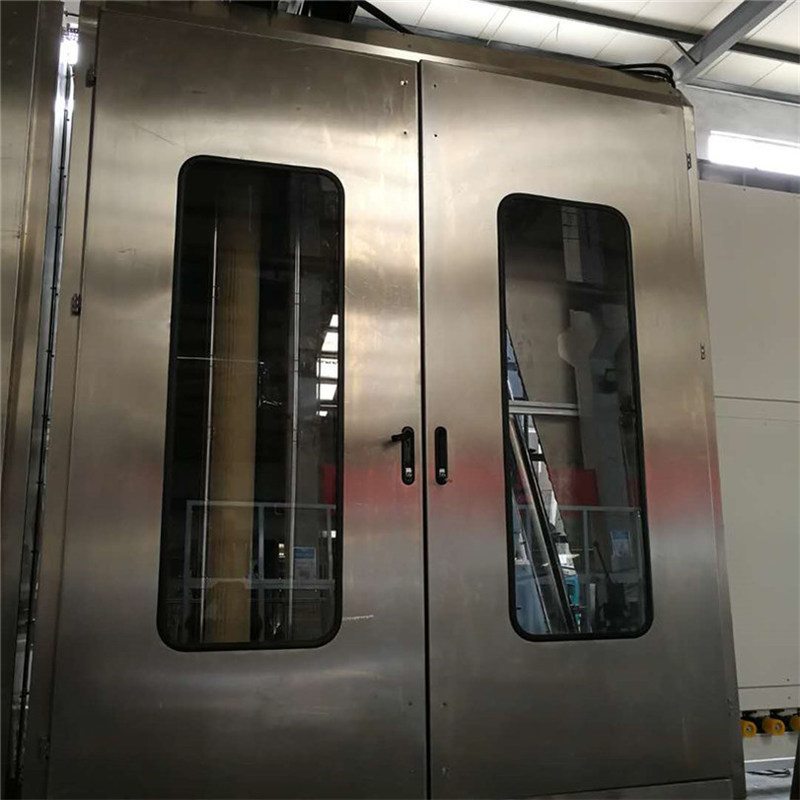

• Stainless steel material
Main feature:
l Automatic detect low-e & high performance glass
l Wash online and offline low-e glass, automatically recognizes Low-e film
l The air knife can automatically adjust the width according to the glass thickness
l Using intelligent intermittent energy-saving working methods
l Hierarchical type washing system
l Water tank automatic temperature control, water replenishing system
European silencer system&stainless steel drying system
Technical data
| Max.glass size(Optional) | 2500*3500mm |
| Min.glass size | 280*450mm |
| Glass thickness | 3-15mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 15m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Dimensions | approximately 6260*4800*3100 |
| Weight | 3940kg |
| Total power | 3P 31KW |
Electrical parameters
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Photoelectric switch | Korea | AUTONICS |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Transfer motor | Taiwan | LINHAI |
| Brush motor | China | QINGHUA |
| Water pump | China | LINGXIAO |
| Pneumatic Components | Taiwan | AIRTAC |
FAQ
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for
guiding customer to
find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
