Product Details:
|
| Name: | Vertical Insulating Glass Sealing Robot | Max. Glass Size: | 2500*4000mm |
|---|---|---|---|
| Glass Thickness: | 12-50mm | Working Speed: | 5-40m/min |
| Voltage Power: | 380V 15kw | Overall Dimension: | 11000*2000*3500mm |
| High Light: | Double Glazing Insulating Glass Sealing Robot,Double Glass Insulating Glass Sealing Robot,Double Glazing glass sealing machine |
||

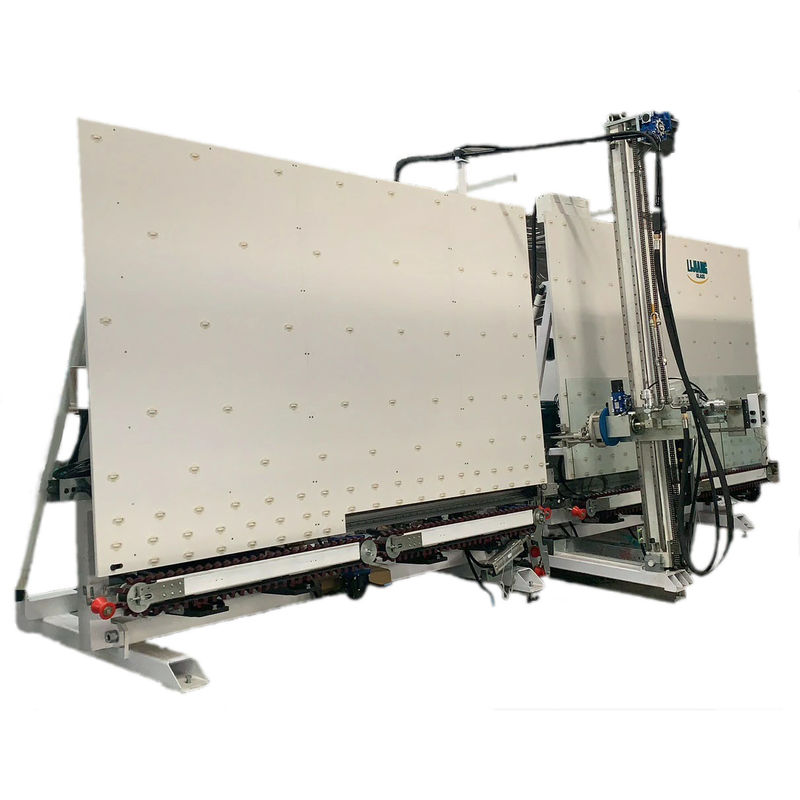

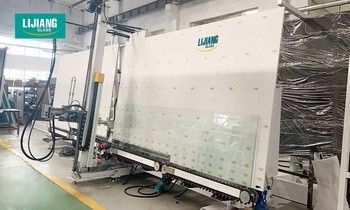

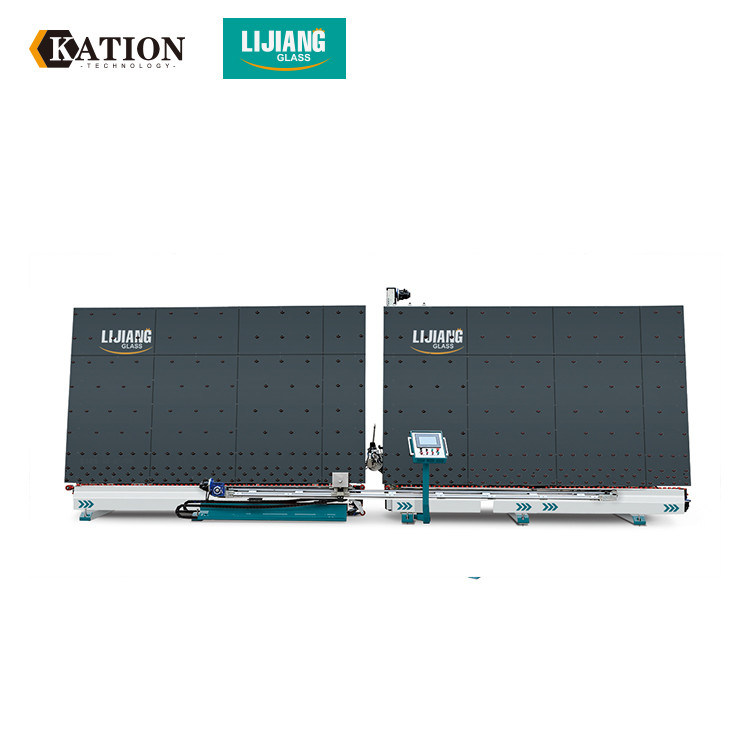

Vertical Insulating Glass Sealing Robot LJTJ2540
Main Features of double glass sealant sealing line
• Japan Yaskawa servo system control, 8 axes, 7 sets of servo control system, full automatic and
high-efficiency sealing machine
• 4 sections, can storage glass
• Adopt timing belt, smooth transfer and accurate position
• Automatically repair glass corners with scraper and roller Automatically measure glass size, glue depth (30mm)
• Every auto-function is with manual operation
• Can coat double glass
• Shape glass with optional edges, step glass, triple glass (Optional)

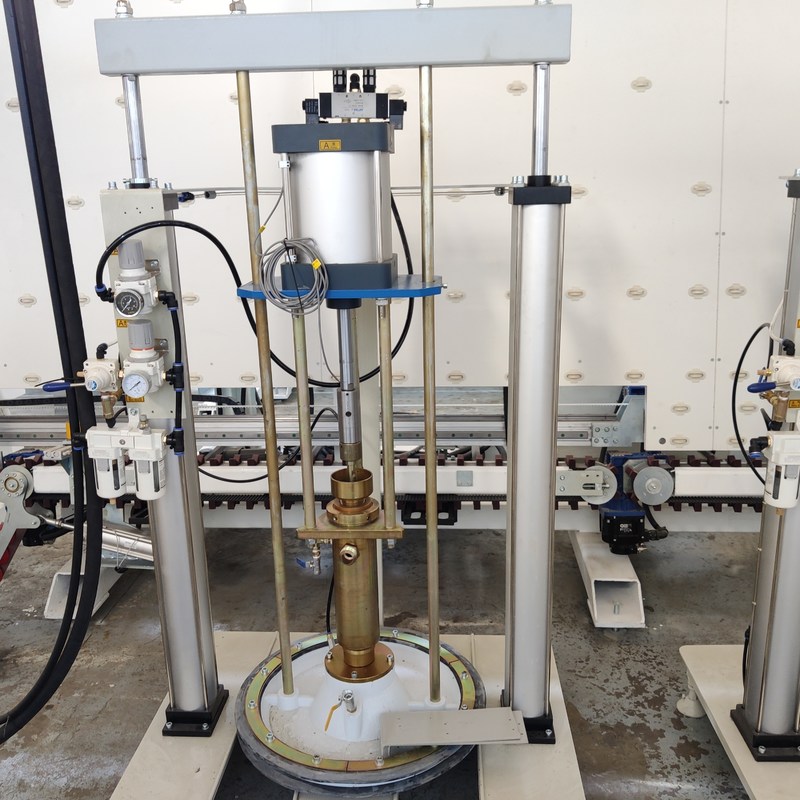

• One set of booster pump controls two groups of sealants (Optional)
• Can use silicone, polysulfide and silicone structural sealants
• Glue head is in the front of the machine, which is easy for coating step glass
• Can be connected with insulating glass processing line
• With code scanning function (Optional)
Technical data of double glass sealing line
| Max. glass size | 2500*4000mm |
| Min. glass size | 400*300mm |
| Glass thickness | 12-50mm |
| Working speed | 5-40m/min |
| Air pressure | ≥0.6MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 15kw |
| Overall dimension | 11000*2000*3500mm |
Electrical parameters of automatic glass sealing robot
| NAME | ORIGIN | BRAND |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
| CPU | Japan | YASKAWA |
| Low voltage component | Germany | SIEMENS |
| Guideway | Taiwan | HIWIN |
| Switching power supply | Taiwan | MW |
| Sensor switch | Korea | AUTONICS |
| Pneumatic component | Japan | SMC |
| Touch screen | China | GAOSHAN |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
Company Profile of double glass line automatic sealing robot
Jinan Lijiang Automation Equipment Co., Ltd specializes in the R & D and manufacturing of automatic
insulating glass machinery, with a registered capital of 20 million RMB. Domestic friendly partners include
nearly one thousand customers, such as North glass, Xinfuxing, Yaohua, etc. The products have been
exported to Europe, the United States, the Middle East, Southeast Asia, South America,Romania, Bulgaria,
Span and other countries (about 30 countries) of the world. There are about ten agencies, such as North
America, South America, Europe, Southeast Asia, the Middle East, South Korea, etc. At the same time,
we have set up branches in New Delhi, India. At present, the export of products accounts for more than
50% of the company's total sales.
LIJIANG’ new factory covers an area of 20000 square meters, has more than 100 employees, 6 people
with middle and senior technical titles, 8 full-time technical R & D personnel, 3 production workshops (welding
sheet metal workshop, machining workshop and assembly workshop) and technical R & D department, and
has an independent international trading company (JINAN KATION). The production management and sales
system of the enterprise adopts the advanced ERP and CRM management software in China to build an efficient,
accurate, united and orderly high-end team.
