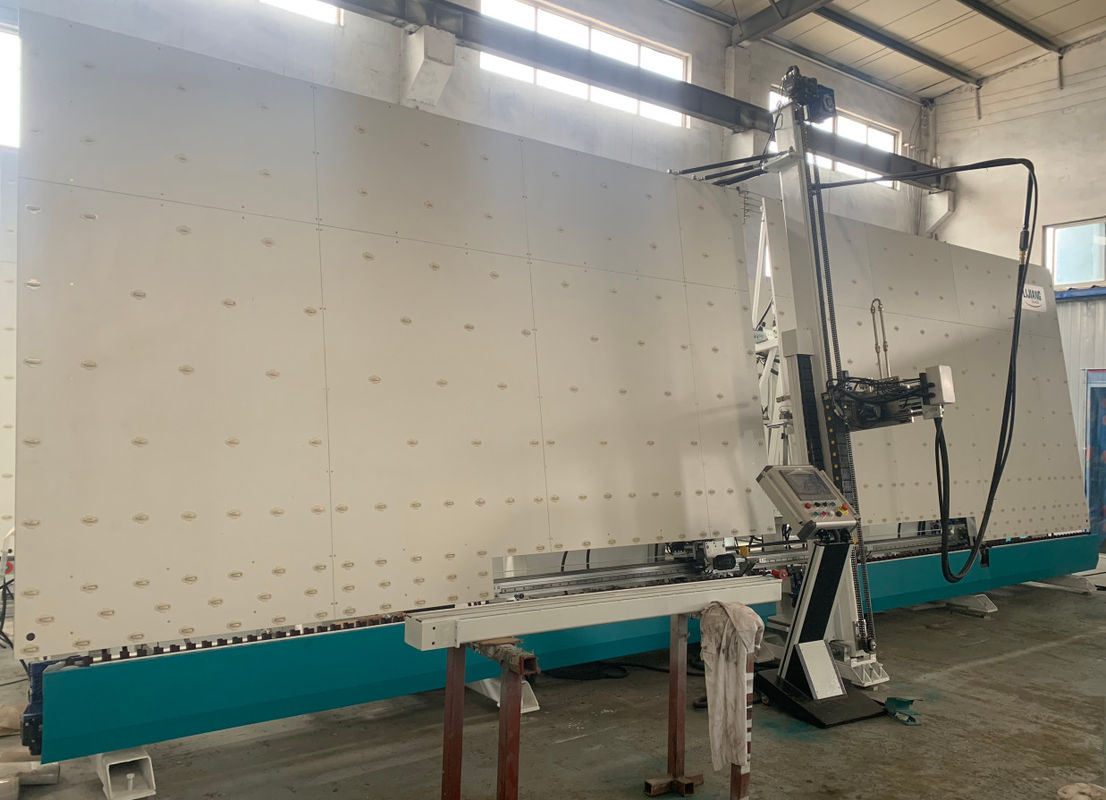

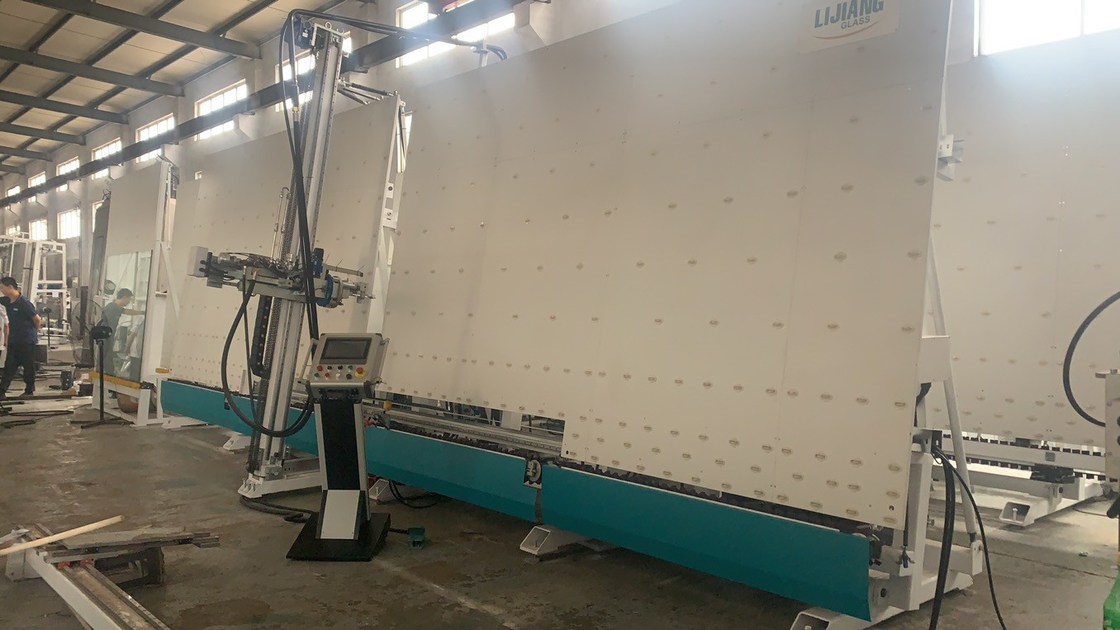

Vertical Insulating Glass Sealant Extruder Robot Machine For Processing Insulating Glass

Vertical Insulating Glass Sealant Extruder Robot Machine For Processing Insulating  Glass
Vertical Insulating Glass Sealant Extruder Robot Machine For Processing Insulating  Glass Vertical Insulating Glass Sealant Extruder Robot Machine For Processing Insulating  Glass

Large Image :  Vertical Insulating Glass Sealant Extruder Robot Machine For Processing Insulating Glass

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJTJ2540
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Container
Delivery Time: 30-40 working days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month

Vertical Insulating Glass Sealant Extruder Robot Machine For Processing Insulating Glass

Description
Machine Name: Automatic Sealing Robot Power Supply: 380V,50HZ,3P
Total Power: 15KW Glass Thickness: 12-56mm
Usage: Can Coat Double Glass,shaped Glass,step Glass,triple Glass Warranty: 1 Year
High Light:

Insulating Glass Sealant Extruder

,

Vertical Sealant Extruder

,

Insulating Glass silicone extruder machine

Automatic Vertical Insulating Glass Sealants Sealing Robot Machine



Main Features of Automatic sealing robot

• Japan Yaskawa servo system control, full automatic and high-efficiency sealing machine

• 4 sections, can storage glass

• Adopt timing belt, smooth transfer and accurate position

• Automatically repair glass corners with scraper and roller

• Automatically measure glass size, glue depth (30mm)

• Every auto-function is with manual operation

• Can coat double glass

• Shape glass with optional edges, step glass, triple glass (Optional)

• One set of booster pump controls two groups of sealants (Optional)

• Can use silicone, polysulfide and silicone structural sealants

• Glue head is in the front of the machine, which is easy for coating step glass

• Can be connected with insulating glass processing line

• With code scanning function (Optional)



Technical data of Automatic insulated glass sealing robot

Max. glass size 2500*4000mm
Min. glass size 400*300mm
Glass thickness 12-50mm
Working speed 5-40m/min
Air pressure ≥0.6MPa
Squeeze pressure 32MPa
Voltage power 380V 15kw
Overall dimension 11000*2000*3500mm



Electrical parameters

NAME ORIGIN BRAND
Servo motor Japan YASKAWA
Servo driver Japan YASKAWA
CPU Japan YASKAWA
Low voltage component Germany SIEMENS
Guideway Taiwan HIWIN
Switching power supply Taiwan MW
Sensor switch Korea AUTONICS
Pneumatic component Japan SMC
Touch screen China GAOSHAN
Servo motor Japan YASKAWA
Servo driver Japan YASKAWA




Specification

Model LJTJ2540D
Voltage Power 380V 13KW
Air Pressure 0.5~0.7Mpa
Extruding pressure 32Mpa
Max.Glass size 2500*4000mm
Min.Glass size 400*300mm
Glass thickness 12~56mm
Working speed 5~40m/min
Overall dimension 11000*1500*4500mm

2.2 Machine Noise

A-weighted sound pressure level
Stand-by state Working state
50 db 85 db

Vertical Insulating Glass Sealant Extruder Robot Machine For Processing Insulating  Glass 0

Function of Automatic insulated glass sealing machine

1.The machine is suitable for glass deep processing enterprise ,high automation, Reduce labor intensity, save manpower, improve production efficiency
2. Whole machine adopt man-machine touch screen interface,with memory function .
3.After coating sealant ,the glass edge and corner is full without air bubbles , smooth surface, no need to pare the corner
4. Using two sets of independent sealant supply system ( including the mixing device ), two kinds of sealants switch fast ,in one-button operation easily (Model II)

5.The width of machine is 1.5m ,small floor area, save space
6. The third section can prestore glass to improve the efficiency effectively

7.The smallest insulating glass size can be processed is 400*300mm

8.Equipped anti blocking device in the mixer

9. Servo control system adopts world famous brand (Japan YASKAWA ), the performance is stable
10. Shaft transmission to make the glass being transferred smoothly with accurate positioning.
11. Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass edge clean ,V type Block is changeable .
12. The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability
13.Suitable for triple glazing .

14.Conveying wheel on backboard adopts embedded wheel ,to make sure the glass be transported smoothly

Vertical Insulating Glass Sealant Extruder Robot Machine For Processing Insulating  Glass 1



Related product of LIJIANG GLASS


Automatic Vertical Glass washing And Drying Machine With 3 pairs Of Soft Brushes



Glass washing machine has the vertical and horizontal types. This is the vertical glass washing and drying machine, the machine is used to washing glass for making double glazing glass in almost cases. The washing machine has stainless steel materials for washing box, the spares in the washing machine are with waterproof accessories. The air knife uses new design of drying glass function. This new washing machine has very fast speed.

Main Feature:

  • PLC control system, touch screen interface.
  • Adopt the independent wind knife system to improve the cleaning efficiency.
  • The air knife can automatically adjust the width of the air knife according to the thickness.
  • Water tank automatic temperature control, water replenishing system.
  • European silencer system & stainless steel drying system.
  • No scratching of glass sheets, comparing with other Chinese suppliers, can keep the glass cleaner.
  • Faster and more efficient drying processing by special powerful structure.
  • Display washing speed on the touch screen directly
  • Use stainless steel material, 6 brushes (normally for brushes, we use 0.1mm brushes for low-e glass). Brushes are replaceable.
  • Air knife could stop automatically, save much energy.
  • 1 year warranty.
Vertical Insulating Glass Sealant Extruder Robot Machine For Processing Insulating  Glass 2

Main feature:

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material

Pre-washing is optional function.

Vertical Insulating Glass Sealant Extruder Robot Machine For Processing Insulating  Glass 3

Technical parameters:
Max. glass size 2000mm*2500mm
Brand  LIJIANG GLASS
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ
Warranty  1 year
Weight 2500KG


Vertical Insulating Glass Sealant Extruder Robot Machine For Processing Insulating  Glass 4
