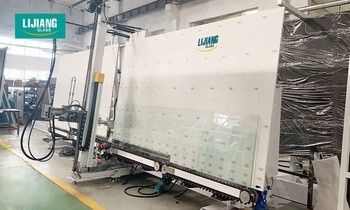

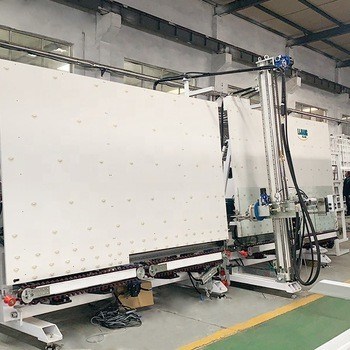

Automatic Vertical Double Glazing Sealing Machine Double Glazing Glass Machine

Description
Production Name: Insulating Glass Sealants Sealing Robot Machine Max Glass Size: 2500mm*4000mm
Min Glass Size: 400mm*300mm Glass Thickness: 12-56mm
Washing Machine: Stainless Steel Pressing Machine: Adjustable Points
Warranty: 1 Year Brand: LIJIANG GLASS
High Light:

Vertical Double Glazing Sealing Machine

,

Vertical Double Glazing Glass Machine

,

56mm Double Glazing Sealing Machine

Automatic Vertical Insulating Glass Sealants Sealing Robot Machine



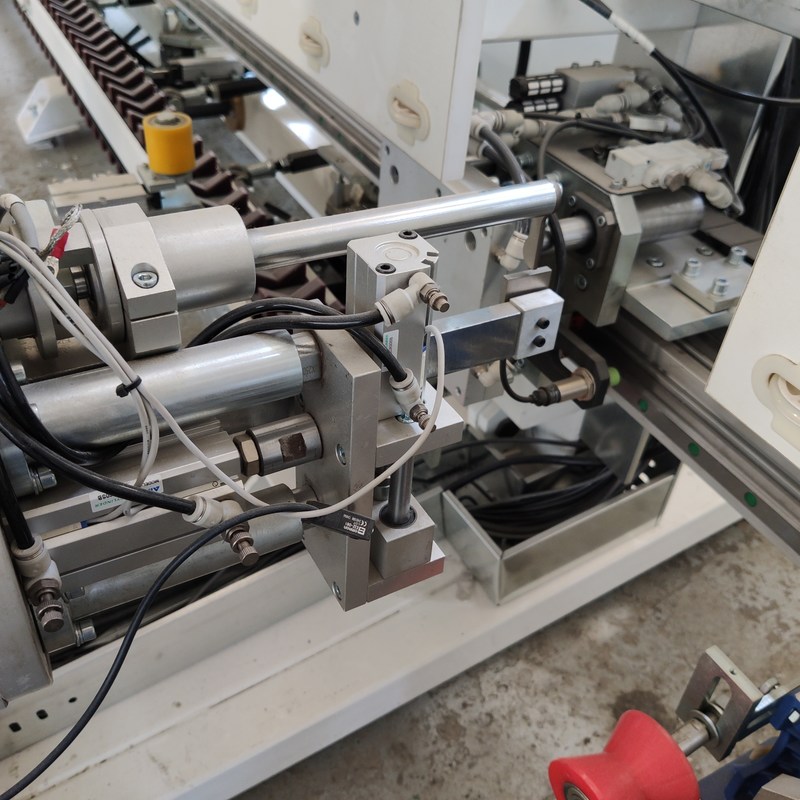

Main Features of Insulating Glass Sealing Robot Machine:

• Japan Yaskawa servo system control, fully automatic and efficient sealing machine

• 4 sections, can store glass

• Using a synchronous belt, stable transmission, and accurate positioning

• Use scraper and roller to automatically repair glass corners

• Automatic measurement of glass size and glue depth (30mm)

• Each automatic function comes with manual operation

• Can be coated with double glass

• Special-shaped glass stepped glass, triple-layer glass with optional edges (optional)

• One set of booster pumps controls two sets of sealant (optional)

• Silicone, polysulfide, and silicone structural sealants can be used

• The glue head is located at the front of the machine for easy coating of step glass

• Can be connected with insulating glass processing line

• With scan code function (optional)



Specification of Insulating Glass Sealing Robot

Model LJTJ2540D
Voltage Power 380V 13KW
Air Pressure 0.5~0.7Mpa
Extruding pressure 32Mpa
Max.Glass size 2500*4000mm
Min.Glass size 400*300mm
Glass thickness 12~56mm
Working speed 5~40m/min
Overall dimension 11000*1500*4500mm

2.2 Machine Noise

A-weighted sound pressure level
Stand-by state Working state
50 db 85 db

Automatic Vertical Double Glazing Sealing Machine Double Glazing Glass Machine 0

Function and feature of Insulating Glass Sealing  Machine

1. This machine is suitable for glass deep-processing enterprises, with a high degree of automation, reducing labor intensity, saving manpower, and improving production efficiency
2. The whole machine adopts a man-machine touch screen interface with memory function.
3. After sealing, the four corners of the glass are full without bubbles, and the surface is smooth without beveled edges

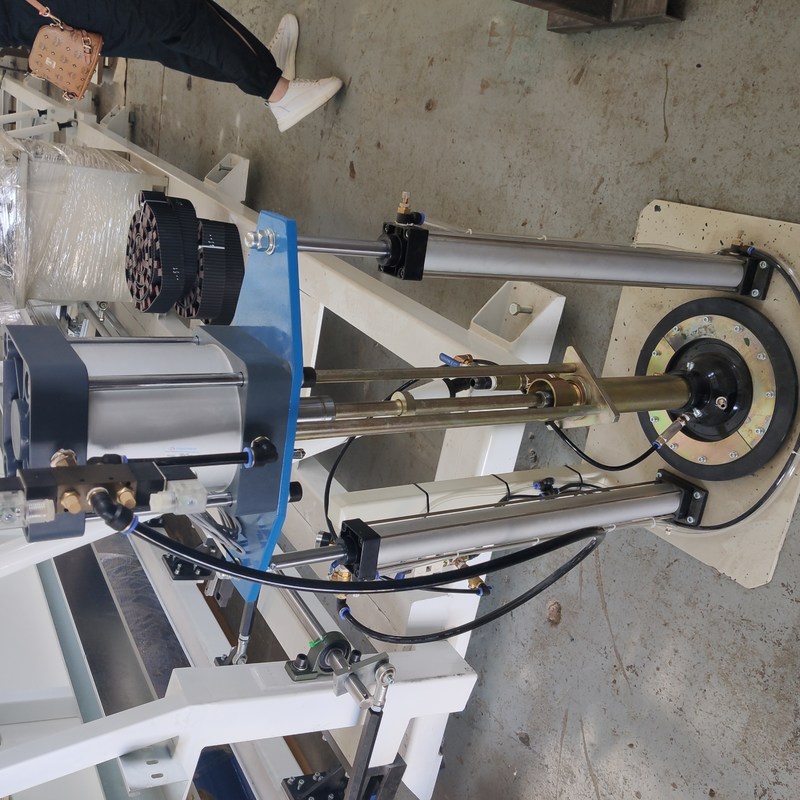

4. Two sets of independent sealant supply systems (including stirring device) are adopted, and the two kinds of sealants can be quickly switched, and one-key operation is convenient (Type II)

5. The machine has a width of 1.5m, a small footprint, and space-saving
6. The third level can store glass in advance, effectively improving efficiency

7. The smallest hollow glass that can be processed is 400*300mm

8. Anti-blocking device is installed in the mixer

9. The servo control system adopts a world-renowned brand (Yaskawa, Japan) with stable performance
10. Shaft transmission makes the glass conveying stable and accurate positioning.

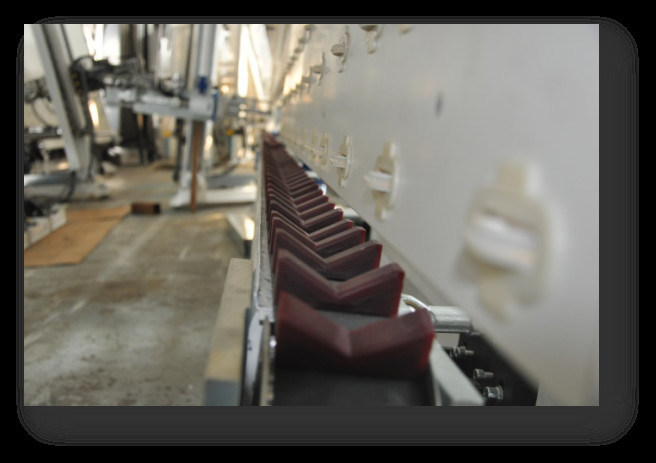

11. The special V-shaped transmission belt prevents the sealant from sticking to the conveyor belt and ensures that the edge of the glass is clean. The V-shaped block can be replaced.
12. The spare parts are produced in standardized and high-precision to ensure the long-term stable use of the machine
13. Suitable for three-layer glass.

14. The back plate conveying wheel adopts the embedded wheel to ensure smooth glass conveying

Automatic Vertical Double Glazing Sealing Machine Double Glazing Glass Machine 1





Technical data

Max. glass size 2500*4000mm
Min. glass size 400*300mm
Glass thickness 12-50mm
Working speed 5-40m/min
Air pressure ≥0.6MPa
Squeeze pressure 32MPa
Voltage power 380V 15kw
Overall dimension 11000*2000*3500mm



Electrical parameters

NAME ORIGIN BRAND
Servo motor Japan YASKAWA
Servo driver Japan YASKAWA
CPU Japan YASKAWA
Low voltage component Germany SIEMENS
Guideway Taiwan HIWIN
Switching power supply Taiwan MW
Sensor switch Korea AUTONICS
Pneumatic component Japan SMC
Touch screen China GAOSHAN
Servo motor Japan YASKAWA
Servo driver Japan YASKAWA

Related product of LIJIANG GLASS

Vertical Double Glazing Glass Production Line With Filling Argon Gas Optional Function



Details introduce of the LJBZ2535G



The argon gas filling insulating glass processing line has 7 sections totally:

01 transfer section;

02 washing machine;

03 discharge section;

04 inspection and installation section;

05 transfer section;

06 pressing and filling section;

07 discharge section.

Automatic Vertical Double Glazing Sealing Machine Double Glazing Glass Machine 2

01 transfer section

Coating detection mechanism, automatic detection of offline Low-e film

02 washing machine

Main feature:

• Use 6 0.1mm soft bristles and soft bristles to clean Low-E glass

• Pre-wash (optional)

• The new air knife adopts aluminum profile (duckbill air knife), and the size of the air outlet is adjusted by the aluminum profile duckbill. This can reduce the number of adjustment screws, ensure that each screw is not loose, and avoid air knife resonance.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display can accurately display the washing speed (8-10m)

• Water tank automatic temperature control and water replenishment system

• European noise reduction system

• stainless steel material

Automatic Vertical Double Glazing Sealing Machine Double Glazing Glass Machine 3

03 discharge section

• Storage glass



04 inspection and installation section

The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass



05 transfer section

• Automatic measurement of glass thickness. It can be used according to actual needs when working.



06 pressing and filling section

The special advantage of the glass pressing board:

Automatic Vertical Double Glazing Sealing Machine Double Glazing Glass Machine 4

Main feature:

• Extra-long (2500mm*3500mm) insulating glass can be compressed twice

• The glass is conveyed by a conveyor belt, and the glass is pressed by a servo motor

• The pressure plate can be opened for easy maintenance

• Adjustable pressure plate structure to ensure long service life

• Automatically filled with argon, the sealing effect is obvious, and the argon content is higher

• Set up areas to fill different sizes of glass, and adopt subsequent sealing methods to reduce argon loss

• The gas value can be set and the gas filling process can be displayed on the touch screen



Automatic Vertical Double Glazing Sealing Machine Double Glazing Glass Machine 5

• Fast reacting sensor for permanent control of gas filling process

• Gas concentration can reach more than 90%

• No need to drill holes on the spacer frame

• Standard gas is Argon gas

07 discharge section

• Storage glass

• Can be connected to sealing machine



Technical data



Max. glass size 2500mm*3500mm
Max glass size for filling gas 2500mm*3200mm
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg



Electrical parameters



NAME ORIGIN BRAND
Servo motor Germany SIEMENS
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Transfer motor Taiwan LINHAI
Brush motor Taiwan LINHAI
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
Electric gauge China MIRAN
Photoelectric switch Germany SICK
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
IG line with gas filling online



Optional function :

The Super Fast IG Line * Pressing and filling 2 pieces of IG units, totally 8 sections

Automatic Vertical Double Glazing Sealing Machine Double Glazing Glass Machine 6

Main Features of the super fast IG line

• Two pieces of insulating glass are pressurized and inflated at one time, and each piece of insulating glass is filled with more than 90% of argon gas

• Pressing two pieces of IGU at a time can better prevent deformation of the pressed part. Each 1m*1m double glass can reach 27s, which greatly improves work efficiency

• High-speed IG processing line, obtained Chinese patent in 2019

• Solve the problem of sealing robot waiting for work. One worker installs two spacer frames for two IGUs

• ERP system automatically measures glass size and labeling (labeling before and after pressing) (optional)

• From the conveying part to the pressing part, each part is separated

• Suitable for mass production in factories. Super fast speed
