Automatic Vertical Insulating Glass Sealants Sealing Robot Machine

Automatic Vertical Insulating Glass Sealants Sealing Robot Machine
Automatic Vertical Insulating Glass Sealants Sealing Robot Machine Automatic Vertical Insulating Glass Sealants Sealing Robot Machine

Large Image :  Automatic Vertical Insulating Glass Sealants Sealing Robot Machine

Product Details:
Place of Origin: JINAN CHINA
Brand Name: JINAN CHINA
Certification: CE
Model Number: LJBZ2535
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 70000 - 120000 per set
Packaging Details: Containers
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets

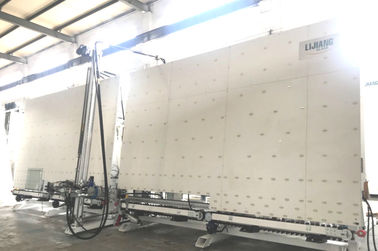

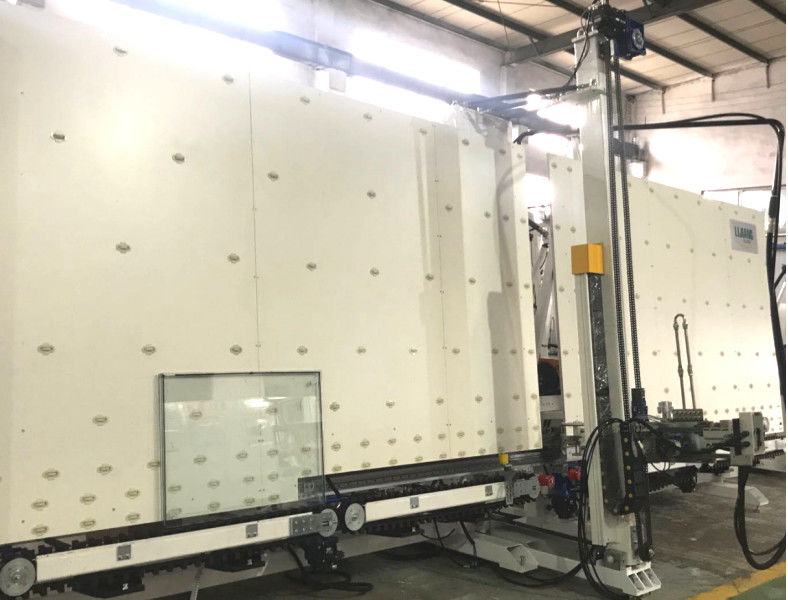

Automatic Vertical Insulating Glass Sealants Sealing Robot Machine

Description
Production Name: Insulating Glass Sealants Sealing Robot Machine Max Glass Size: 2500mm*4000mm
Min Glass Size: 400mm*300mm Glass Thickness: 12-56mm
Washing Machine: Stainless Steel Pressing Machine: Adjustable Points
Warranty: 1 Year Brand: LIJIANG GLASS
High Light:

Automatic Sealants Sealing Robot

,

Vertical Sealants Sealing Robot

,

Insulating Glass Sealants Sealing Robot

Automatic Vertical Insulating Glass Sealants Sealing Robot Machine



Main Features of Insulating Glass Sealing Robot Machine:

• Japan Yaskawa servo system control, full automatic and high-efficiency sealing machine

• 4 sections, can storage glass

• Adopt timing belt, smooth transfer and accurate position

• Automatically repair glass corners with scraper and roller

• Automatically measure glass size, glue depth (30mm)

• Every auto-function is with manual operation

• Can coat double glass

• Shape glass with optional edges, step glass, triple glass (Optional)



• One set of booster pump controls two groups of sealants (Optional)

• Can use silicone, polysulfide and silicone structural sealants

• Glue head is in the front of the machine, which is easy for coating step glass

• Can be connected with insulating glass processing line

• With code scanning function (Optional)



Specification of Insulating Glass Sealing Robot

Model LJTJ2540D
Voltage Power 380V 13KW
Air Pressure 0.5~0.7Mpa
Extruding pressure 32Mpa
Max.Glass size 2500*4000mm
Min.Glass size 400*300mm
Glass thickness 12~56mm
Working speed 5~40m/min
Overall dimension 11000*1500*4500mm

2.2 Machine Noise

A-weighted sound pressure level
Stand-by state Working state
50 db 85 db

Automatic Vertical Insulating Glass Sealants Sealing Robot Machine 0

Function and feature of Insulating Glass Sealing  Machine

1.The machine is suitable for glass deep processing enterprise ,high automation, Reduce labor intensity, save manpower, improve production efficiency
2. Whole machine adopt man-machine touch screen interface,with memory function .
3.After coating sealant ,the glass edge and corner is full without air bubbles , smooth surface, no need to pare the corner
4. Using two sets of independent sealant supply system ( including the mixing device ), two kinds of sealants switch fast ,in one-button operation easily (Model II)

5.The width of machine is 1.5m ,small floor area, save space
6. The third section can prestore glass to improve the efficiency effectively

7.The smallest insulating glass size can be processed is 400*300mm

8.Equipped anti blocking device in the mixer

9. Servo control system adopts world famous brand (Japan YASKAWA ), the performance is stable
10. Shaft transmission to make the glass being transferred smoothly with accurate positioning.
11. Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass edge clean ,V type Block is changeable .
12. The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability
13.Suitable for triple glazing .

14.Conveying wheel on backboard adopts embedded wheel ,to make sure the glass be transported smoothly

Automatic Vertical Insulating Glass Sealants Sealing Robot Machine 1





Technical data

Max. glass size 2500*4000mm
Min. glass size 400*300mm
Glass thickness 12-50mm
Working speed 5-40m/min
Air pressure ≥0.6MPa
Squeeze pressure 32MPa
Voltage power 380V 15kw
Overall dimension 11000*2000*3500mm



Electrical parameters

NAME ORIGIN BRAND
Servo motor Japan YASKAWA
Servo driver Japan YASKAWA
CPU Japan YASKAWA
Low voltage component Germany SIEMENS
Guideway Taiwan HIWIN
Switching power supply Taiwan MW
Sensor switch Korea AUTONICS
Pneumatic component Japan SMC
Touch screen China GAOSHAN
Servo motor Japan YASKAWA
Servo driver Japan YASKAWA

Related product of LIJIANG GLASS

Vertical Double Glazing Glass Production Line With Filling Argon Gas Optional Function



Details introduce of the LJBZ2535G



The argon gas filling insulating glass processing line has 7 sections totally:

01 transfer section;

02 washing machine;

03 discharge section;

04 inspection and installation section;

05 transfer section;

06 pressing and filling section;

07 discharge section.

Automatic Vertical Insulating Glass Sealants Sealing Robot Machine 2

01 transfer section

Coating detection mechanism, automatic detection of offline Low-e film

02 washing machine

Main feature:

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material

Automatic Vertical Insulating Glass Sealants Sealing Robot Machine 3

03 discharge section

• Storage glass



04 inspection and installation section

The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass



05 transfer section

• Automatic measurement of glass thickness. It can be used according to actual needs when working.



06 pressing and filling section

The special advantage of the glass pressing board:

Automatic Vertical Insulating Glass Sealants Sealing Robot Machine 4

Main feature:

• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice

• Adopts conveyor belt to transfer glass, uses servo motor to press glass

• The pressing plate can be opened for easy maintenance

• Pressing board with adjustable structure to guarantee long-lasting service life

• Automatically fill argon gas with significant sealing effect, higher argon content

• Set zones to fill different size of glass with follow-up sealing method reduces argon loss

• Can set gas value and show the process of filling gas on the touch screen



Automatic Vertical Insulating Glass Sealants Sealing Robot Machine 5

• Fast reacting sensor for permanent control of gas filling process

• Gas concentration can reach more than 90%

• No need to drill holes on the spacer frame

• Standard gas is Argon gas

07 discharge section

• Storage glass

• Can be connected to sealing machine



Technical data



Max. glass size 2500mm*3500mm
Max glass size for filling gas 2500mm*3200mm
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg



Electrical parameters



NAME ORIGIN BRAND
Servo motor Germany SIEMENS
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Transfer motor Taiwan LINHAI
Brush motor Taiwan LINHAI
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
Electric gauge China MIRAN
Photoelectric switch Germany SICK
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
IG line with gas filling online



Optional function :

The Super Fast IG Line * Pressing and filling 2 pieces of IG units, totally 8 sections

Automatic Vertical Insulating Glass Sealants Sealing Robot Machine 6

Main Features of the super fast IG line

• Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon gas over 90%

• Can be better prevented the pressing part to be out of shape by pressing two pieces of IGU in once time. Can reach 27s for each 1m*1m double glass, improving work efficiency highly

• High-speed IG processing line, we have obtained patent rights in China in 2019

• Solving the problem of waiting for working on the sealing robot. Installing two spacer frames for two IGU by one workman

• Automatically measuring glass size and labeling (labeling can be allowed before pressing and after pressing) with ERP system (Optional)

• From transfer part to pressing part, each part is divided

• Suitable for mass production in a factory. Ultra-fast speed
