Product Details:
|
| Product Name: | Automatic Sealant Dispensing Machine | Max Glass Size: | 2000mm*3000mm/2500*4000mm |
|---|---|---|---|
| Min Glass Size: | 400mm*300mm | Glass Thickness: | 12-56mm |
| Advantage: | Yaskawa Servo Motor | Color: | Can Design By Customer's Demand |
| Application: | Silicone Sealant Extruder, Building Glass, Double Glass, Door & Window Processing, Architectures Furniture Automobile Household Appliance | Usage: | Insulting Glass Production, Insulting Glass Edge Sealing |
| High Light: | Pump A Insulating Glass Sealant Extruder,Pump b Sealant Extruder,Pump A silicone extruder machine |
||
Automatic Insulting Glass Sealant Dispensing Machine with Pump A And Pump B Glues
Main features of Automatic Insulating Glass Sealing Robot

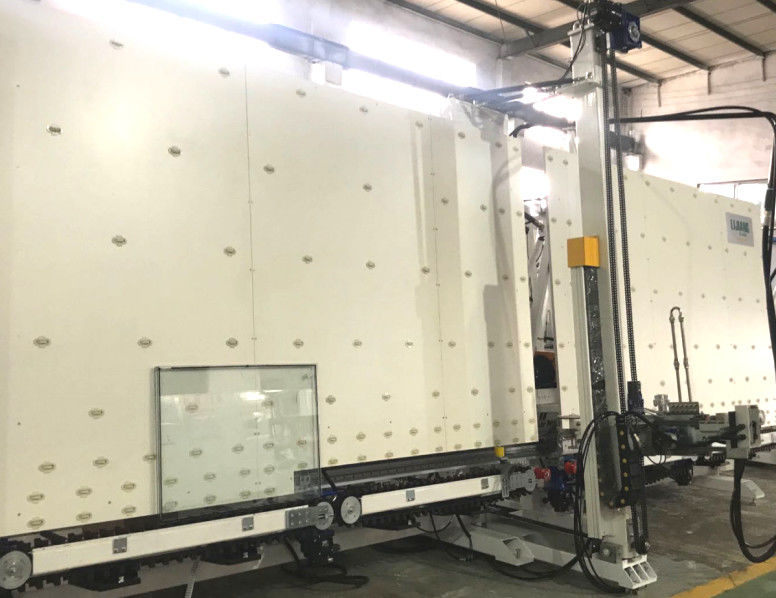

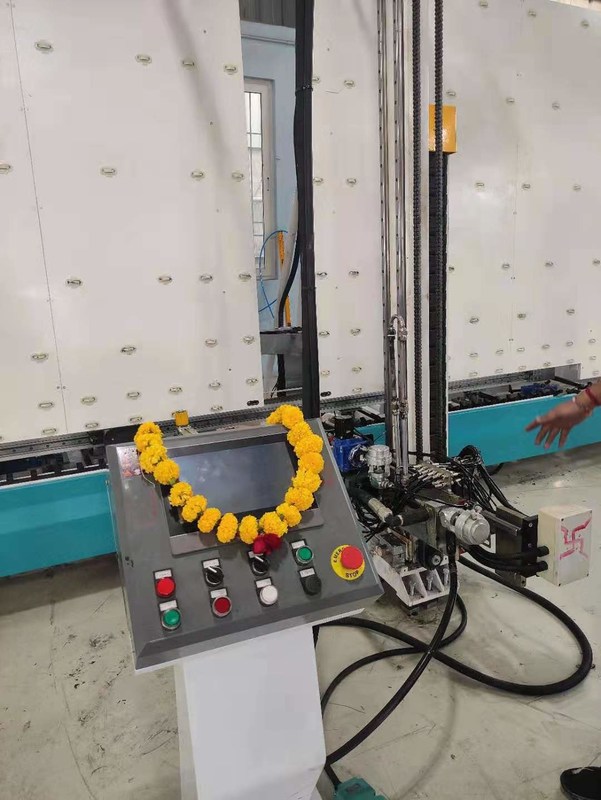

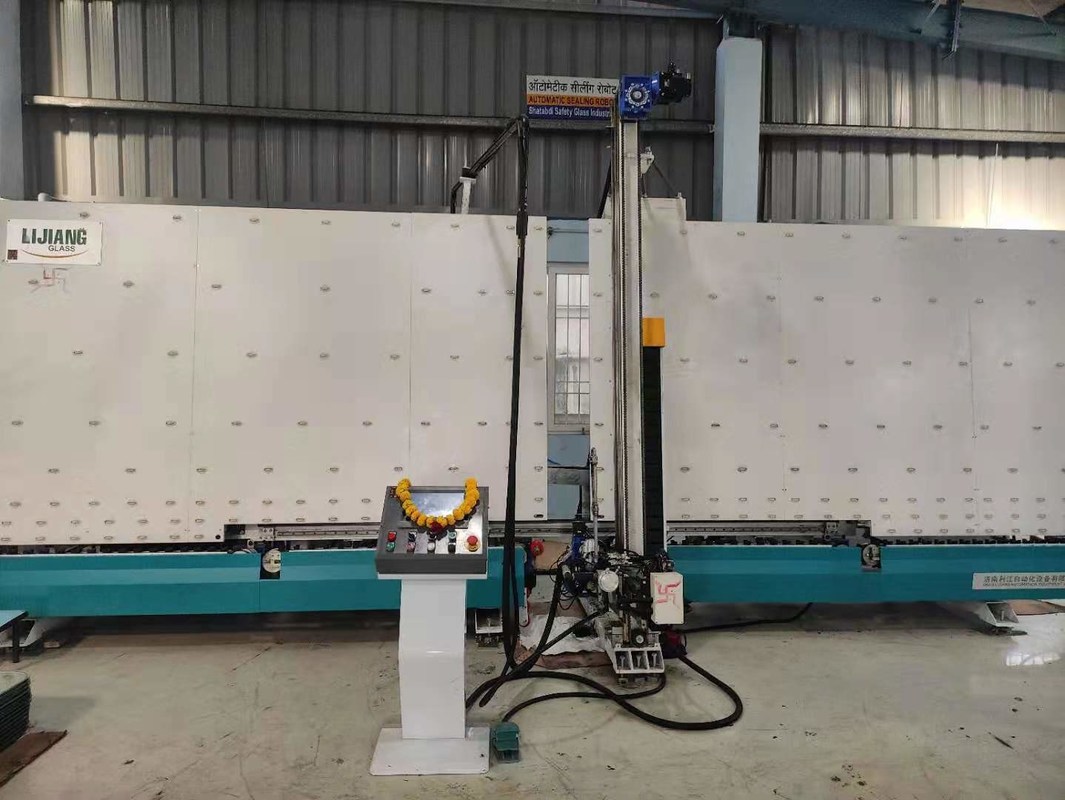

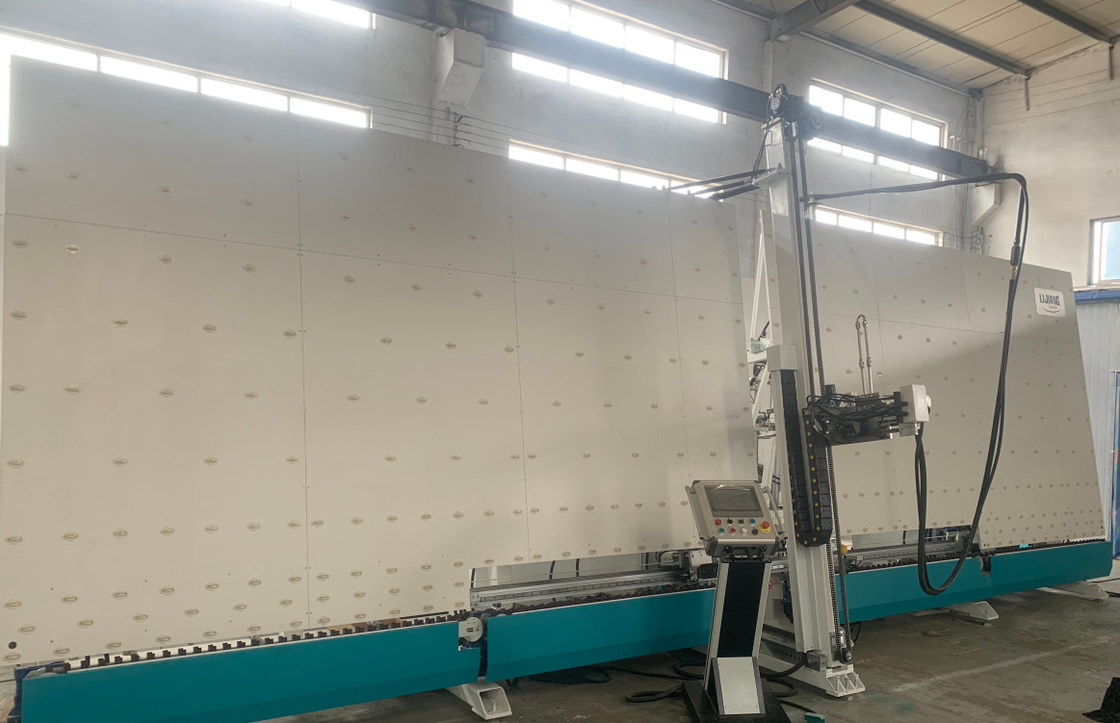

LJTJ2535/LJTJ2025 is the latest automatic vertical insulating glass sealing robot. It is used to coat double glazed glass through mixing the A component and B component together according to a certain percentage. Applied to double/triple/shaped and stepped glasses (Optional) with stable performance and easy operation.
1, Mechanical head is placed in front
Achieve the real connection with IG line when doing stepped glass.
2, Storage Function
It can store three pieces of insulating glasses on the three belts ( less than 1.8m.), it need 2 more sets servo motors, control systems.
3, Eight Servos
The robot uses eight YASKAWA servos, four of them control transmission parts, in the another four servos, they control sucker, lifting, driving and Forward & backward movement and rotating.
Single Glue System
Equipped with single A component and single B component.
Double Glue Systems(option )
Equipped with two sets of A components and two sets of B components,Equipped with two sets of A components and two sets of B components, which can be used for two kinds of sealants, such as silicone rubber, polysulfide rubber and silicone structural adhesive.
Double /triple Shaped / stepped glass Function (Optional)
With the development of updating technology, the sealing robot can coat eight shaped glasses according to the glass market.(but it’s optional function , before order this function should confirm manufacturer)
Two sealing system of insulating glass sealing line :
double sealing pumps with two pump A and two pump B, two sets of glue mixers, one set of glue nozzle
When you change the different sealants, the first sealant. should be flushed clean with the second sealant.
Technical parameter of Automatic Insulting Glass Sealing Robot
| Max. glass size | 2000*3000mm?2500*4000mm |
| Min. glass size | 400*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | ≥0.6MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 15kw |
| Overall dimension | 11000*2000*3500mm |
