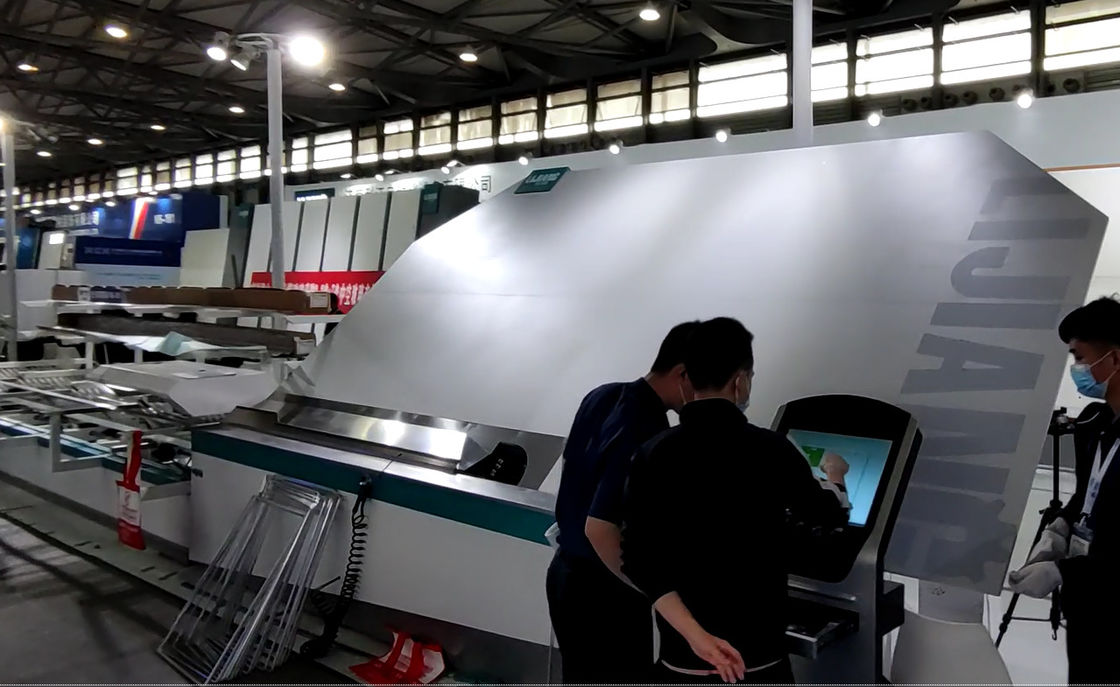

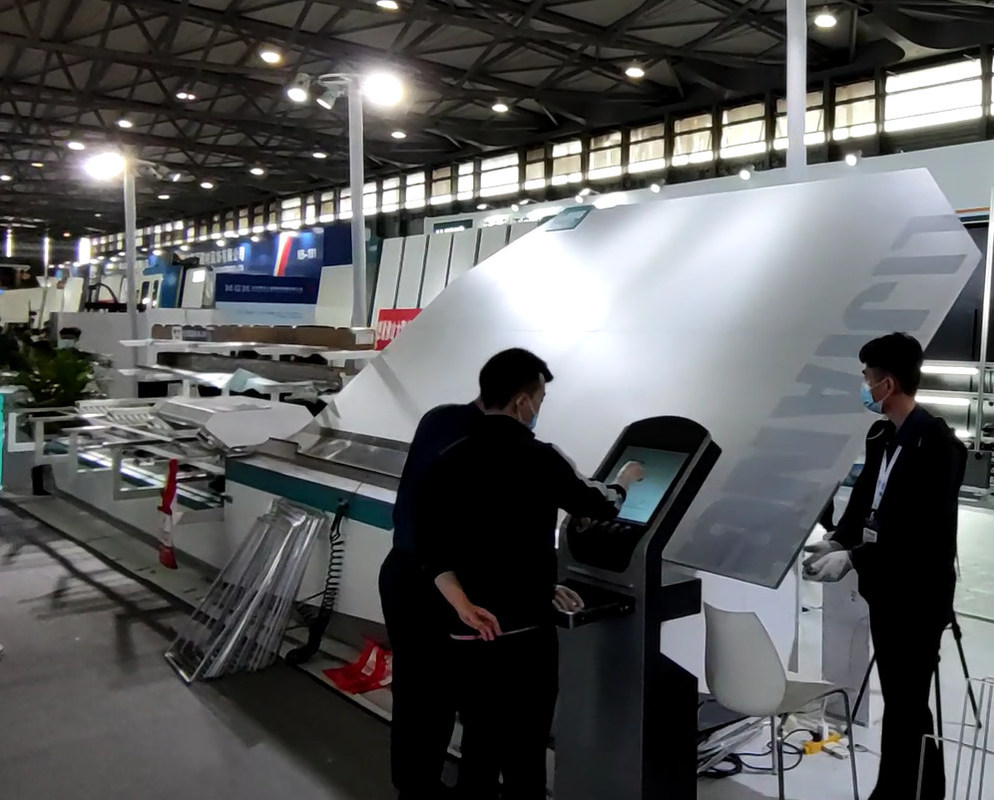

150*300mm Spacer Bar Bending Machine Profile Bending Machine

150*300mm Spacer Bar Bending Machine Profile Bending Machine
150*300mm Spacer Bar Bending Machine Profile Bending Machine
150*300mm Spacer Bar Bending Machine Profile Bending Machine 150*300mm Spacer Bar Bending Machine Profile Bending Machine 150*300mm Spacer Bar Bending Machine Profile Bending Machine

Large Image :  150*300mm Spacer Bar Bending Machine Profile Bending Machine

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJZW2020A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Container
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

150*300mm Spacer Bar Bending Machine Profile Bending Machine

Description
Production Name: Automatic Glass Aluminum Spacer Bending Machine Max Spacer Size: 1800mm*2000mm(in Once)/2500*4000(in Twice)
Min.bending Machine: 150*300mm Spacer Types: Aluminum Space/warm Edge Spacer
Servo Motor: Servo Motor Machine Type: Beading Machine,
Usage: Aluminum Spacer Bar Bending, Bend Aluminum Spacer Bar Into Required Shape Certification: CE
Aluminum Spacer Width: 5.5-26.5mm Automation: Automatic
High Light:

150*300mm Spacer Bar Bending Machine

,

26.5mm Spacer Bar Bending Machine

,

150*300mm Profile Bending Machine

Automatic aluminum frame spacer bar bending machine

Production Overview of aluminum frame spacer bending machine



Insulated glass is made by 2pcs or more float glasses which filled with desiccant of Argon gas with Aluminum frame.Primary seal(butyl)between insulating glass and Aluminum frame, secondry seal(polysulfide or structure). Insulating glass will be effectively protect radiation when coated Low-E film.Automatic Aluminum frame spacer bending machine is a special equipment for making aluminum frames of insulated glass, which replaces the traditional fabrication technology. Automatic Aluminum spacer bending machine can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.



Detail of Automatic spacer bending machine





1.Automatic Aluminum frame spacer bending machine set up four groups of spacers storage units, Aluminum bar with multiple sizes can be selected at will.

150*300mm Spacer Bar Bending Machine Profile Bending Machine 0



2.Automaticlly continuous connection of spacer,cutting spacer,avoidance of spacer bar joint

150*300mm Spacer Bar Bending Machine Profile Bending Machine 1

3.Heavy duty connectors ,convenience and safety for installation and debugging

150*300mm Spacer Bar Bending Machine Profile Bending Machine 2



4.Adopt the Siemens 1200PLC control feeding system with fast working speed.spacer frame size can be adjusted  with an accuacy of 0.1mm/m/

150*300mm Spacer Bar Bending Machine Profile Bending Machine 3

5. Aluminum spacers are available in different specifications and in sizes of 5.5-26.5mm

150*300mm Spacer Bar Bending Machine Profile Bending Machine 4



6.No material prompt,sleep prompt,fault prompt,work prompt,unreasonable data refuse  processingand prompt

150*300mm Spacer Bar Bending Machine Profile Bending Machine 5



7.Spare parts of all machine have ID codes.

150*300mm Spacer Bar Bending Machine Profile Bending Machine 6





8.Suppprt art-shaped aluminum frame and special-shaped aluminum frame bending

150*300mm Spacer Bar Bending Machine Profile Bending Machine 7



9.CNC bending angle control system with adjustable accuracy of 0.1°

150*300mm Spacer Bar Bending Machine Profile Bending Machine 8150*300mm Spacer Bar Bending Machine Profile Bending Machine 9



10.Automatic spacer bending machine can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (optional)

150*300mm Spacer Bar Bending Machine Profile Bending Machine 10





11.USB input function ,it can read the excel data directly

150*300mm Spacer Bar Bending Machine Profile Bending Machine 11



12.Printing paper label sticker function (Optional),could remove it easily.

150*300mm Spacer Bar Bending Machine Profile Bending Machine 12





Technical parameter of Automatic spacer  frame bending machine

Max. bending size



2000mm*2000mm

Min. bending size



250mm*180mm

Aluminum spacer width



6A - 27A
Spacers racks 4 Racks

Spacer size error



±0.5mm

Angle error



±1°

Processing speed



< 25s (1000mm*1000mm)

Air supply



≥0.65MPa
Voltage 380V50Hz 3P
Total power 2.5KW
Dimension 10500mm*2200mm*2600mm




Main Features of Aluminum spacer bending machine

1.automaticlly Bending and cuttingavoid the connection, the roundness,auto matically cut after bending.
2.Automatic spacer bending machine can make triangle ,rectangle,positive five squareness,positive hexagon,roundness shap and so on.

3.PLC control, touch screen simple operation.Siemens 1200 PLC control system with fast working speed

4.Pause and Reset device for handling equipment failures
5.Four material strage slots for four different specifications of spacers.

6.Automatic spacer frame bending machine can Bend aluminum spacer, smooth stainless steel, warm spacer,Automatically avoid the pins while bending and cutting

7.Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 5.5-26.5mm). Different sizes of aluminum bars require different size tools



Related Product


1.Sealant-spreading Machine LJST02A

150*300mm Spacer Bar Bending Machine Profile Bending Machine 13

Main feature

• Imported motor system to improve equipment efficiency

• Imported sealant gun,stainless steel mixer

• High pressure protect device

• Anti-back flow control structure

• Mixed rate detector can control the rate of two kinds of glue

Technical data



Working air pressure 0.3-0.6MPa
Sealant spreading pressure 15-20MPa
Sealant volume 4L/min
Diameter of A/B sealant 570mm/280mm
Sealant spreading air pressure ratio 50:1
Mixed rate 6:1-14:1
Air supply Flow 0.8m3/min
Air pressure ≥0.8MPa
Overall dimension 1100*950*1630mm



2.Rotated Sealant Spreading Table LJSK02

150*300mm Spacer Bar Bending Machine Profile Bending Machine 14

Main feature

• Easy operating, simple and flexible

• It is used for fixing and rotating glass when manual coating the outside of IG glass

• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass

Technical data



Power supply 380V 50Hz
Total power 0.37kw
Operating dimension 1500*1500mm
Dimension 600*550*985mm

3.Smart Vertical Edge Deleting Machine LJCM2545

150*300mm Spacer Bar Bending Machine Profile Bending Machine 15



Main feature

• Two-way glass access

• Automatically measure size

• Automatically distinguish low-e surface

• The head can be rotated 360°

• Safe and full automatic device

• PLC control system, touch screen interface

• Six servos control system

• Edge deletion is adjustable

• Intelligent control system, can recognize batch processing





Technical data



Max. glass processing size 2500*4500mm
Min. glass processing size 400*280mm
Glass thickness 3-15mm
Diameter of grinding wheel 200mm
Conveyor height 500mm
Edge deleting width 10-50mm
Transmission speed 1. 29m/min
Edge deleting speed 2-29m/min
Abrasive wheel width 10/12/15mm
Glass thickness 3 - 15mm
Grinding wheel speed 0~3000r/min
Total air consumption 100L/ min
Air pressure ≥0.8MPa
Total power 3P 380V 50Hz 3.35KW
Dimension Dimensions :9700×2500×3400mm
Total weight 3700KG



Electrical parameters

NAME ORIGIN BRAND
Servo motor Taiwan TAIDA
PLC Taiwan TAIDA
Pneumatic component Taiwan AAIRTAC
Low pressure electricity Germany SIEMENS
Circuit breaker Germany SIEMENS
Sensor switch Korea AUTONICS
Approach switch Korea AUTONICS
Limit switch Taiwan TEND
Connector Germany SIEMENS
Frequency converter France SCHNEIDER
Main Button France SCHNEIDER
Intermediate relay Japan OMRON

3.Butyl Extruder Machine LJTB 01

150*300mm Spacer Bar Bending Machine Profile Bending Machine 16



Main feature

• PLC control system, touch screen interface

• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust

• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full

• Fast preheat, improve work efficiency

• with preheating function

• With exhaust inflatable function, improve the quality of sealing and save time for plastic

• Quickly coating speed,can up to 47m/min

• Saving the amount of glue



Technical data



Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 6A - 27A
Speed 5-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5.7KW,50HZ
Dimension 2800×700×900mm(L×W×H)
weight 650kg





Electrical parameters



Name Original Brand
PLC China KINCO
Valve German HAWE
Low voltage electrical apparatus German SIEMENS
Hydraulic and pneumatic supercharging system German MAXIMATOR
Frequency converter China KINCO
Pneumatic components Taiwan ARTAC
Quick exhaust valve/Vacuum generator Japan SMC SMC
Travel light Japan OMRON
Optical fiber Japan OMRON
