Servo Motor Glass Edge Grinding Machine Automatic Glass Grinding Machine

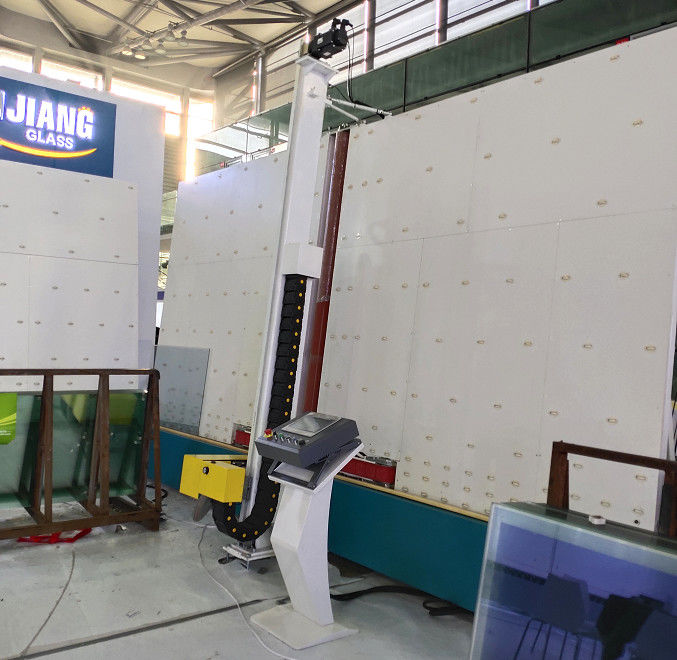

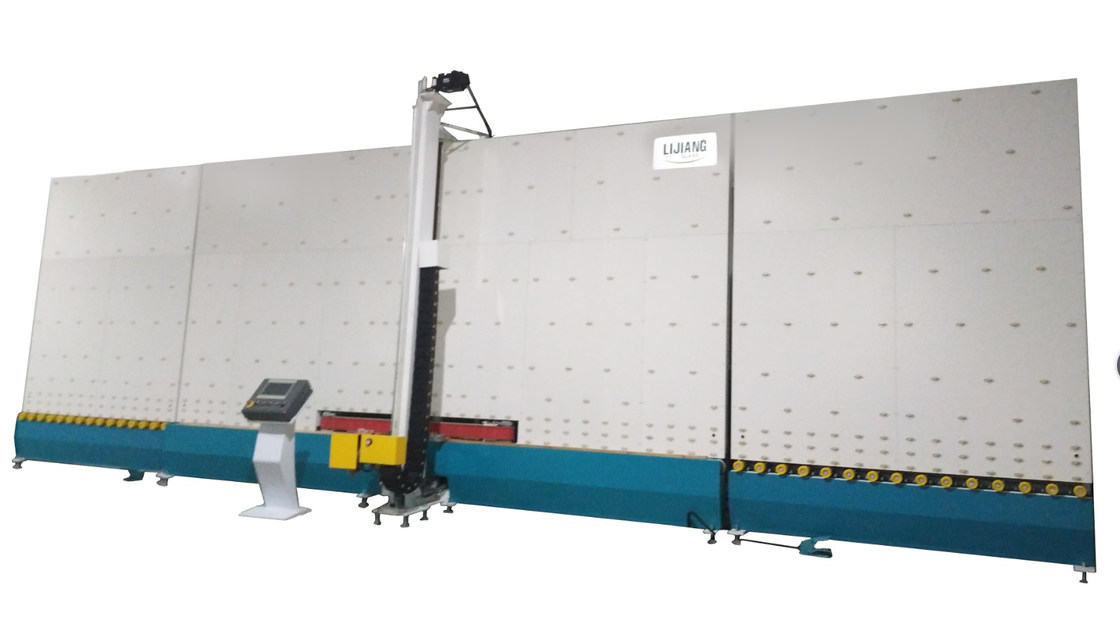

Automatic Vertical Edge Deleting Machine With Servo Motor automatic glass grinding machine

LJDM2545 smart vertical edge deleting machine is used to delete the edge film of the Low-e glass. The glass edge deleting machine adopts imported servo control system, positioning accurately with smooth operation. High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily.

Low-E glass, also known as low radiation glass, is a kind of film product composed of multilayer metal or other compounds on the surface of glass. Compared with common glass and traditional architectural coated glass, the coating has excellent heat insulation effect and good light transmittance.

Low-e glass types:

Single silver Low-E glass

Single silver Low-E coated glass usually contains only one functional layer (silver layer). In addition to other metal and compound layers, the total number of coating layers reaches 5.

Double silver Low-E glass

The double silver Low-E coated glass has two functional layers (silver layer), plus other metal and compound layers, the total number of coating layers reaches 9. However, the technical process control of double silver Low-E glass is much more difficult than that of single silver.

Main feature of Low-E film deleting machine:

Automatic Vertical Low-E glass edge deletion machine contains 3 sections: glass loading section, deleting section and glass unloading section. Automatic Vertical Low-E film deletion machine has 4 kinds of different directions. Online low-e and outline low-e glass.

Automatic  vertical low-e film edge deletion machine can delete the double or triple low-e film.

• Automatically measure glass size
• Delete double and triple silver low-e glass
• Six sets of servo motors,British TRIO system
• Inlet-outlet with two-direction,4directions are available
• Automatically measure glass size
• Automatically distinguish low-e surface
• PLC control system, touch screen interface
• Six servos control system
• Intelligent control system, can recognize batch processing
• Edge deletion is adjustable
• The head can be rotated 360°
• Safe and full automatic device

Technical parameter of automatic Vertical edge deleting machine :

Electrical parameters of Vertical edge deleting machine

Related products

1.Automatic Aluminum Spacer Bending Machine LJZW2020

Main feature

• Adopt Siemens PLC control system, touch screen interface

• Siemens servo control system

• Four spacer size storage units

• Automatically cut and feed aluminum spacers

• Auxiliary function of adjustment for bending large aluminum frame

• Aluminum spacers are available in different sizes and sizes

• Bend shaped spacer frames continuously

• Separated guard board outside of bender

• Automatically avoid the connection while bending and cutting

• Pause and Reset device for handling equipment failures

• USB input function, read the excel format file directly etc (Optional)

• Spacer printing code function (Optional)

• Printing label sticker function (Optional)

• Can bend aluminum spacer and stainless steel ( Optional)

• Automatic drill gas filling hole (Optional)

• Connect to ERP system (Optional)

Technical data

2.Vertical Insulating Glass Sealing Robot LJTJ2540

Main Features:

• Min & Max glass sizes can be optional

• Adopt 8 servo motors

• Adopt Japan servo control system with stable performance

• Automatically measure glass size, glue depth and glue speed with linear adjustment

• Adopt timing belt to keep smooth convey with accurate position

• Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working

• Smooth convey without scratch and pollution

• Single-function parts are equipped with manual functions, easy adjustment

• The glass corners are full without air bubbles, smooth surface, no need to

• Full automatic and high-efficiency machine

• Automatically repair glass corners with beautiful surface

• Can coating more than 8 kinds of shaped glass, include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc (Optional)

• Seal stepped glass fully at once (Optional)

• Can seal stepped IG with four sides (Optional)

• Adopts double pumps device to use two kinds of different sealants, such as silicone, polysulfide and silicone structural sealant (optional)

Technical data

3. Butyl Extruder Machine LJTB 01

Main feature

• PLC control system, touch screen interface

• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust

• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full

• Fast preheat, improve work efficiency

• with preheating function

• With exhaust inflatable function, improve the quality of sealing and save time for plastic

• Quickly coating speed,can up to 47m/min

• Saving the amount of glue

Technical data

4.Manual Gas filling machine LJCJ02

Main feature

• It is used for filling Argon into insulating glass

• High effectively, allowed for four pieces of IGU

• When the gas is full,it will alarm and stop automatically

Technical data

5.Spacer trip cutting machine LJQJ02

Main feature

• It is used for cutting aluminum strip

• Allowed to cut many spacers,keep high efficiency

Technical data

6. Rotated Sealant Spreading Table LJSK02

Main feature

• Easy operating, simple and flexible

• It is used for fixing and rotating glass when manual coating the outside of IG glass

• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass

Technical data
