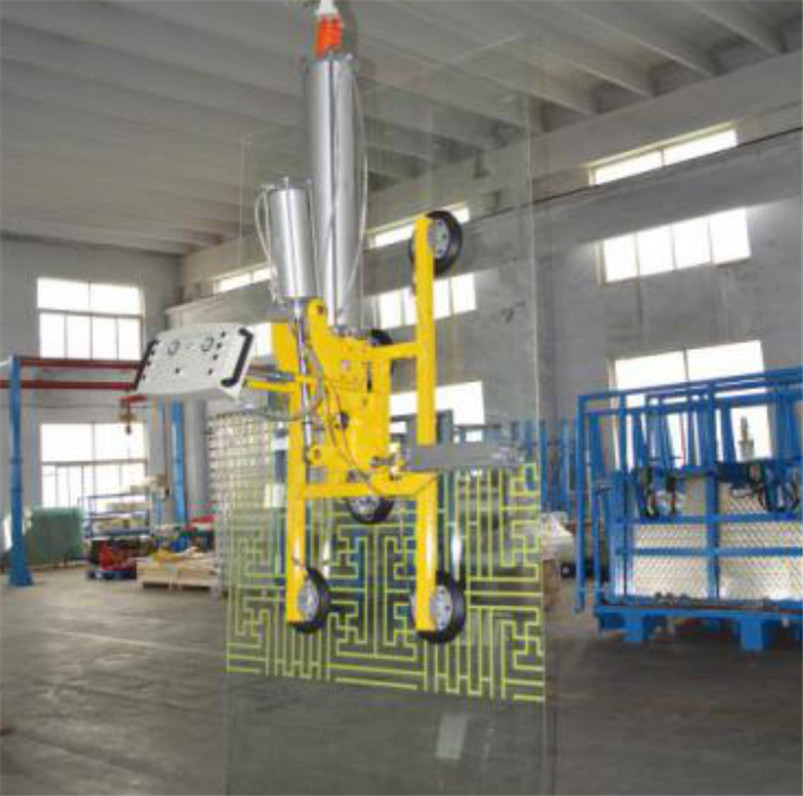

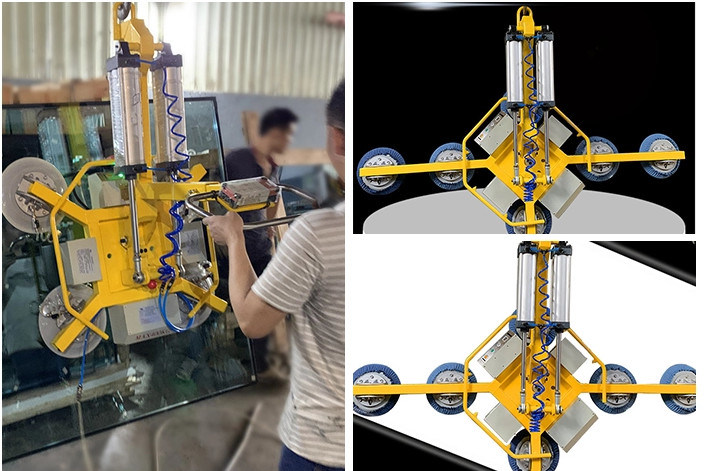

300kg 400kg 500kg 900kg Vacuum Pump Glass Lifter Vacuum Glass Lifting Equipment

300kg 400kg 500kg 900kg Vacuum Pump Glass Lifter Vacuum Glass Lifting Equipment
300kg 400kg 500kg 900kg Vacuum Pump Glass Lifter Vacuum Glass Lifting Equipment 300kg 400kg 500kg 900kg Vacuum Pump Glass Lifter Vacuum Glass Lifting Equipment 300kg 400kg 500kg 900kg Vacuum Pump Glass Lifter Vacuum Glass Lifting Equipment

Large Image :  300kg 400kg 500kg 900kg Vacuum Pump Glass Lifter Vacuum Glass Lifting Equipment

Product Details:
Place of Origin: Jinan
Brand Name: Lijiang
Certification: CE
Model Number: LJSPD01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SETS
Price: 1000USD
Packaging Details: Container
Delivery Time: 20 DAYS
Payment Terms: T/T, L/C
Supply Ability: 20SETS/MONTH

300kg 400kg 500kg 900kg Vacuum Pump Glass Lifter Vacuum Glass Lifting Equipment

Description
Name 1: Glass Vacuum Lifter Name 2: Vacuum Lifting Equipment
Name 3: Hoist Lifting Equipment Name 4: Glass Vacuum Lifting Equipment
Name 5: Glazing Lifting Equipment Name 6: Glass Lifting Devices
High Light:

900kg Vacuum Pump Glass Lifter

,

300kg Vacuum Pump Glass Lifter

,

500kg Vacuum Glass Lifting Equipment

Various specifications glass vacuum lifting equipment



Product Description :
glass vacuum lifter

hoist lifting equipment

glazing lifting equipment

vacuum lifts hoists

mobile vacuum lifter

suction lifting devices

glass curtain wall installation

vacuum lifting equipment

glass vacuum lifting equipment

glass lifting devices

glass lifting equipment

suction lifting equipment
Manual rotation: 360° edgewise, with locking at each quarter point.
Manual tilt: 90° between upright and flat, with automatic latching in upright position.
Suitable for moving insulating glass /tempered glass/glass curtain wall, on -site construction of glass deep processing and solar photovoltaic glass.
Glass lifter has the max weight of 300kg / 400kg / 500kg / 900kg and so on, the max glass weight can be chose. The glass crane with column and suckers.

300kg 400kg 500kg 900kg Vacuum Pump Glass Lifter Vacuum Glass Lifting Equipment 0
300kg 400kg 500kg 900kg Vacuum Pump Glass Lifter Vacuum Glass Lifting Equipment 1300kg 400kg 500kg 900kg Vacuum Pump Glass Lifter Vacuum Glass Lifting Equipment 2
Parameters:
Mode
LJXPD400
LJXPD500
LJXPD600
Cap
400KG
500KG
600KG
Suction Pad Dia
300mm
300mm
300mm
Suction Pad Qty
4PCS
6PCS
8PCS
Dimension(L*W*H)
900*730*240mm
1800*1190*240mm
1800*1190*240mm
Rotation
Manual360°
Manual360°
Manual360°
Turn over
Manual90°
Manual90°
Manual90°
Voltage
DC12V
DC12V
DC12V
Charging Voltage
110V/220V
110V/220V
110V/220V
Net Weight
110KG
110KG
110KG
Package Size
950*950*400mm
950*950*400mm
950*950*400mm
Cross Weight
130KG
140KG
150KG
Max Loading Size
4000*2000*20mm
5000*2000*20mm
6000*2000*20mm
NOTE:
Considering the effect of plate span and gravity for reference only.

Advantages&Benefits

300kg 400kg 500kg 900kg Vacuum Pump Glass Lifter Vacuum Glass Lifting Equipment 3300kg 400kg 500kg 900kg Vacuum Pump Glass Lifter Vacuum Glass Lifting Equipment 4



Features & Advantages
Mechanical part:

(1) The total length of the main beam of the suction hoist is designed to be 2000mm, and the upper part of the middle part is welded and sealed with a plate, and the middle part is used as a vacuum accumulator. The air tightness test is carried out after welding to ensure no leakage. When the equipment is suddenly powered off, it is still guaranteed to be able to reliably adsorb the plates for at least 20 minutes, and will not cause safety accidents such as equipment damage (the European CE standard is to maintain 10 minutes)

(2) This equipment is equipped with 6 suction cups with a diameter of 360mm for different sizes of glass. The position of each suction cup on the beam is adjustable to facilitate the adsorption of glass of different sizes.

Electrical part:

(1) A vacuum pressure switch and a buzzer alarm unit are installed on the vacuum hoist. When the vacuum system pressure does not reach the set pressure, or when a power failure occurs, the alarm unit will control the red warning light to light up and the buzzer to sound, Prompt the operator to deal with it in time.

Vacuum part:

(1) The suction hoist adopts a German oil-free rotary vane vacuum pump, with a pumping capacity of 8m3/h, a large vacuum degree of over 85%, energy saving, compact and lightweight, no maintenance, etc.;

(2) The whole set of equipment is equipped with 6 vacuum suction cups, multi-point adsorption to ensure that the plate can maintain a high level during the handling process without tilting;

(3) The suction cup material is nitrile rubber, with a diameter of 360mm, oil (benzene), durable, acid and alkali resistance, and can effectively adsorb with FRP to produce a true single suction cup level. Theoretical large suction force = effective area (physical product * coefficient) * calculated pressure (0.6bar); (0.18*0.18*3.14)*0.6*10000=610.416, which is approximately 610.4Kg. According to the 4 times safety factor, the actual allowable suction power of the suction cup is 610.4/4=152.6Kg. The total suction power of 6 suction cups is 600kg. Note: The vacuum suction force mentioned in the above table is calculated under 60% vacuum degree. Under normal working conditions, the system vacuum degree can reach more than 85%;

(4) The vacuum pressure sensor is made of Japanese Panasonic brand, and the alarm pressure level is set to 60% vacuum;

(5) Each suction cup is equipped with a manual ball valve to control the opening and closing, which ensures that the same equipment can be applied to various specifications of plates;

(6) The upper and lower parts of the sucker rod are equipped with a spring. When the plate is not flat, the spring acts as a buffer to make the sucker evenly stressed, so as to ensure the safety and reliability of the suction cup.

● Overall

2. According to the European Union DIN EN 13155 vacuum system design for the outdoor building curtain wall installation site.

3. Horizontal handling, electric flipping and vertical handling.

4. Flexible design, can be applied to the handling of different sizes of FRP.



300kg 400kg 500kg 900kg Vacuum Pump Glass Lifter Vacuum Glass Lifting Equipment 5
300kg 400kg 500kg 900kg Vacuum Pump Glass Lifter Vacuum Glass Lifting Equipment 6
300kg 400kg 500kg 900kg Vacuum Pump Glass Lifter Vacuum Glass Lifting Equipment 7
