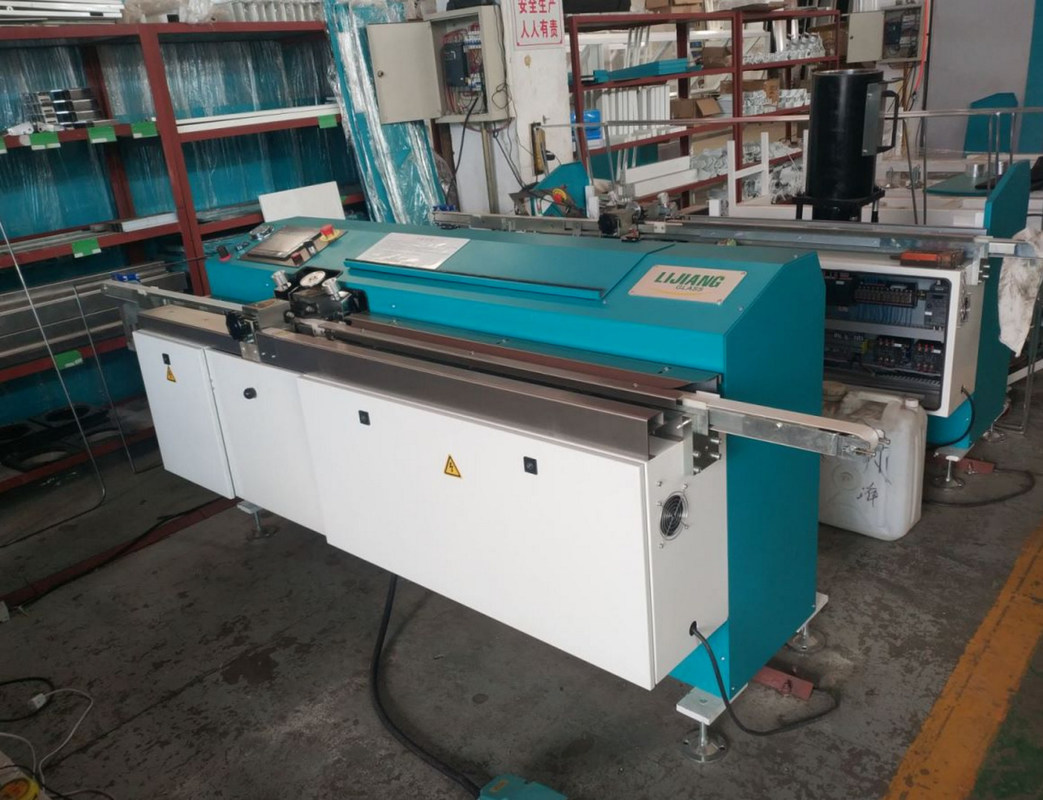

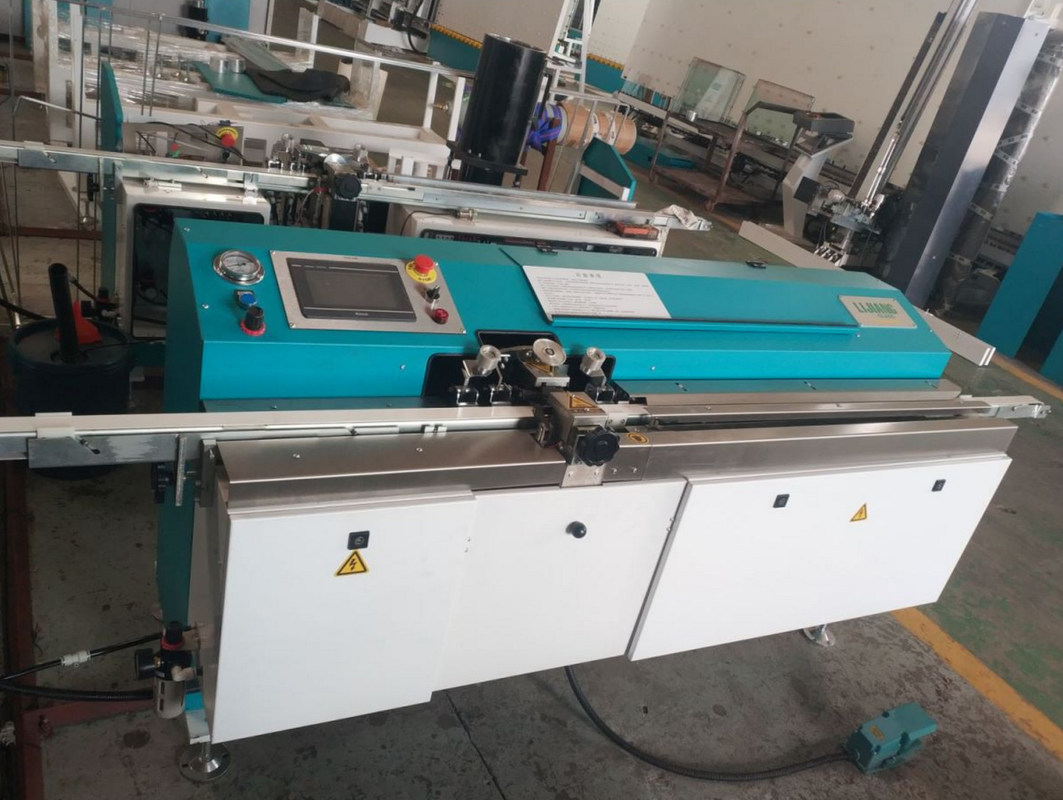

Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant

Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant
Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant
Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant

Large Image :  Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant

Product Details:
Place of Origin: China
Brand Name: Jinan Lijiang Glass Machinery
Certification: CE & ISO9000
Model Number: LJTB01 Butyl Extruder Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Discussible
Packaging Details: Wooden Cases Package and Container Transfer
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month

Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant

Description
Voltage: 380V 50HZ After-sales Service Provided: Engineers Available To Service Machinery Overseas
Weight: 500kg Product Name: Insulating Glass Making Machine Butyl Extruder Machine
Warranty: 12 Months Squeeze Pressure: 12~16Mpa
Conveying Speed: 0-30m/min Extruding Pressure: 110-160℃
High Light:

Vertical Butyl Extruder Machine

,

Silicone Sealant Butyl Extruder Machine

,

Insulating Glass hot melt coater

Support Customization Automatic Insulated Glass Aluminum frame without pressure relief Butyl Extruder Machine on Sale
Details display
Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant 0
The Application of LJTB01 Butyl Extruder Machine
LJTB01 butyl extruder machine is used to apply hot melt butyl to the aluminum spacers of insulating glass evenly. The use of a large electrical control panel makes the operation easier. The conveyor of aluminum is controlled by a frequency converter, and the speed can be adjusted from 0m/min to 47m/min. The squeezing system adopts a pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The machine is energy-saving. The dispensing cylinder uses rotate supporting system and this makes the refill of butyl easier. The system can prolong the life of the squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of the squeezing head can be adjusted automatically according to the different aluminum spacers. The machine has reached worldwide technology with the characteristic of complete function and stable working mode.
Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant 1
Advantages & Features
Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant 3
Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant 4
Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant 5
Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant 6
Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant 7
Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant 8
Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant 9




Main Feature

Touch-screen operation which makes the machine simple and practical
Rectangle & arc frame , decorative aluminum frame can be coat Auto-measure the width of spacer, auto-adjust the distance of nozzle Auto-centering and auto clamping The wheel material is Teflon brand ,non-stick coating, non-adhesive belt The crossbeam height is easy to adjust,we can control the height of butyl Nuzzle height can be adjusted, solve the gap between spacer and butyl The coating speed is up to 47m/min,save butyl is up to 30% (double side standard is 7-8g, our machine can do 4g thickness is 1-1.5mm ,width 3mm) Glue output and height is same level. Alarm device when use out of butyl Pre-heating function,set up a regular time before . Glue cylinder stands upside,easy to change glue Germany HAWEI brand pressure can up to 25MPa,The pressure is stable that can make the glue was coating evenly The front roller and the back roller are used for rectangular frame, the Arc roller is used for circular frame. Electrical components are used famous brand Pneumatic and Hydralic supercharging pump -German Maximator brand control the pressure of outlet oil strongly. Pressure valve Germany HAWE brand with high pressure resistance, keep the butyl well proportioned Pneumatic component -Taiwan Airtac Relay Japan OMROM Japan quick-opening valve make sure the both sides of nozzle open and close at the same time.
Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant 10



The rubber head
The rubber head is a floating soft connection, vertical movemnet, automatic guiding, uniform force around the rubber cylinder and the pistion, and overcomes the defects of easy wear of the bottom of the horizontal rubber cylinder.
Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant 11



The Germany Siemens PLC system
The whole machine adopts the Germany Siemens PLC system, handle-machine interface operation, automatic and accurate glue application and multi-speed section adjustment, high production efficiency.
Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant 12



The stainless steel work surface
It is made of stainless steel work surface and equipped with positioning device. And it is suitable for profiled, rectangular and round aluminum frames of various specification.
Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant 13



Could produce the special sharps
It can be folded into triangles, rectangular shape, positive five-square shapes, regula hexagonal shapes, and arc shapes.
Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant 14



The hydraulic system
The whole machine is divided into hydraulic system and gas-liquid system boosting work, ensure that the glue is extruded evenly and the glue is stable during the extrusion processing.
Vertical Butyl Extruder Machine Insulating Glass Spacer Bar Silicone Sealant 15



The large hydraulic station struction
The large hydraulic station struction uses Japanese brand research technology, and components to provide stable pressure.
Main Technical Parameter
Item.
Spec.
Coating speed
5-47m/min
Aluminum spacer size
4-30mm
Supply sealant pressure
<100kg/cm2
Power
5KW
Air source
≥0.6MPa
Dimension
2600mm*680mm*1100mm
volume of butyl approx.
7.5L
Name
Brand
Low voltage electrical apparatus
Germany SIEMENS
Hydraulic and pneumatic supercharging system
Germany MAXIMATOR
Pressure relief valve
Germany HAWE
Frequency converter
KINCO
PLC
KINCO
Pneumatic components(cylinder,valve)
ARTAC
Quick exhaust valve,Vacuum generator
Japan SMC
travel light
Japan OMRON
