Product Details:
|
| Product Name: | Butyl Extrusion Coating Machine | Application: | Making Double Glazing Glass Products Machine |
|---|---|---|---|
| Warranty: | 1 Year | Heating Time: | 15 Mins |
| Voltage: | 380V 50Hz 3P | Squeeze Pressure: | 10-18MPa |
| Glue Thickness: | 0.3-0.5mm | Glue Width: | 3.5mm |
| High Light: | IG Glass Hot Melt Glue Machine,Horizontal Hot Melt Glue Machine,Horizontal Butyl Rubber Applicator |
||

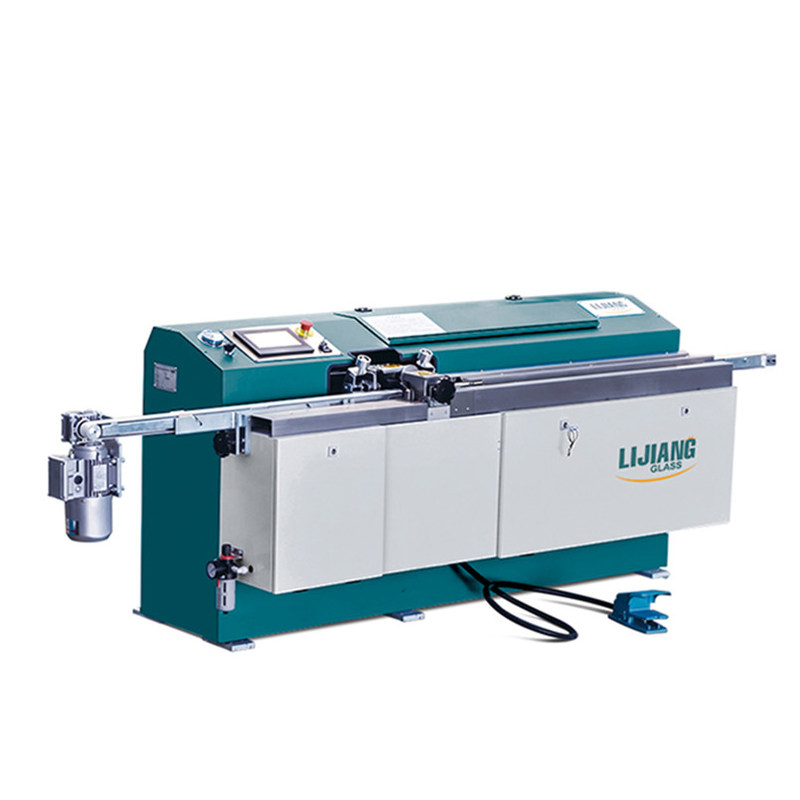

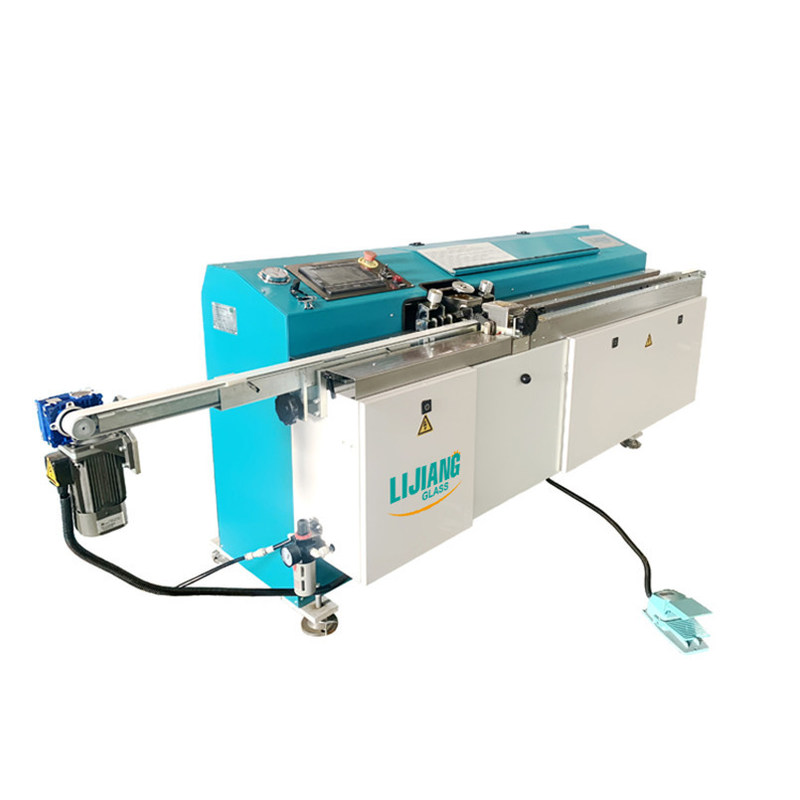

Overview of butyl extrusion coating machine
The butyl extruder is used to evenly spread hot melt butyl on the aluminum frame.
A large electrical control panel simplifies the operation of the butyl extruder.
The aluminum conveyor belt is controlled by a frequency converter.
The speed can be adjusted from 0m/min to 47m/min. LJTB01 butyl extruder is special equipment for double glazing production.
As one of the important equipment in the production of insulating glass, the effect of butyl adhesive is directly related to the sealing of insulating glass.
The equipment is automatic, easy to operate, and easy to use.
The main feature of the butyl machine
1. The touch screen operation is simple and practical.
2.Hydraulic system imported from Germany is adopted to ensure consistent delivery of glue.
3.The rubber barrel uses a pull-up structure, which is convenient to use.
4.Automatically adjust glue output according to speed changes.
5.It is convenient to adjust the height of the cross beams and solve the white problem efficiently and conveniently.
6.The speed of using glue can reach 47m / min.
7.Unique design structure with automatic exhaust function to ensure continuous use of glue.
8. Adopt a non-adhesive synchronous belt and no need to use talcum powder for cleaning.
9.The main accessories are German brands. PLC program control, stable performance.
10.It is very convenient and practical to use movable vertical and horizontal sealant.
11.Automatically adjust glue head width and integrated quick open valve control ensures the consistency of double-sided gluing.
12.It can save glue consumption compared with common butyl rubber making machine, and gluing can reach 7g / m.
Tech parameters of automatic butyl extruder machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Equipment details of glue coating machine
Germany Siemens parts
Adopt Siemens brand, stable performance.
KINCO Touch Screen
Clear interface, Simple operation, Smart touch screen,Updated programming.
Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
Alarm system
Automatically alarm system, reminding adding butyl.
Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.

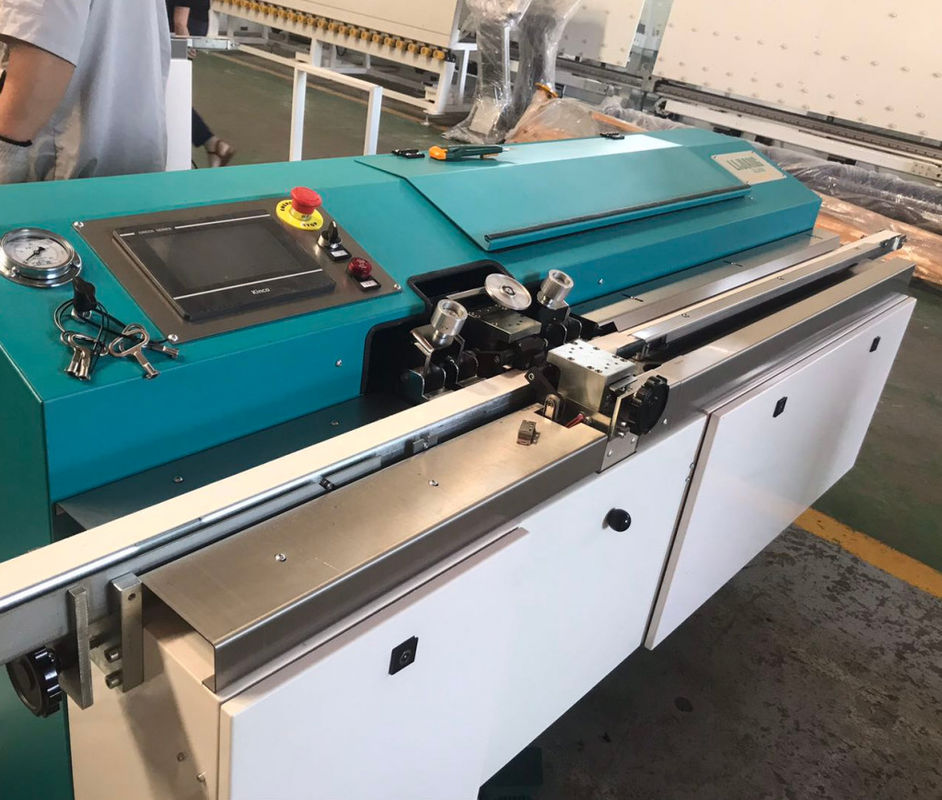

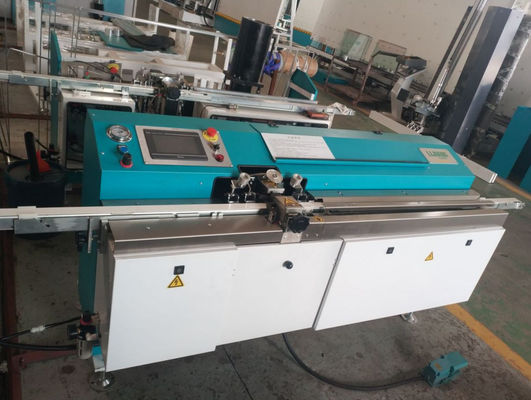

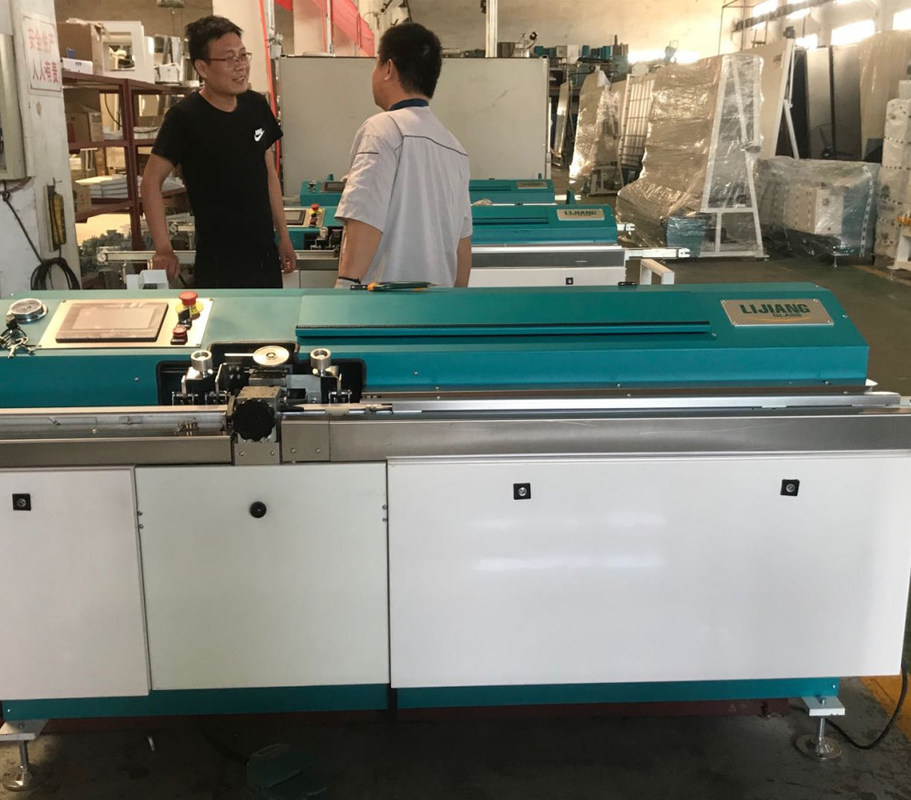

Detail picture
Optional functions of butyl coating machine:
200L glue cylinder is optional
Related Product
Vertical Loading Table
I.Mainly technical parameter:
1.
Maximum loading glass size: L × W = 3500 × 2600 mm.
Minimum carrying capacity of glass size: length × width = 800 × 600 mm.
Glass Thickness (3-10mm):
2.
Rough size of loading table:
Length X width X height = 3700mm × 2800mm × 2500mm + bottom support 530mm(±30mm).
3.
Vertical loading platform adopts servo motor as drive system, all motors are stepless variable speed, the transmission speed of the table is 2-35m/min, cyclic loading time is 35S.
4.
Full closed loop control system, accurate positioning, stable operation.
Configuration description
5.
The horizontal motion of the tilting arm is controlled by a precision servo motor and a gear box, which is driven by a rack and pinion.
6.
Lifting structure: servo motor and precision gear box control, synchronous belt drive.
7.
Skew structure: servo motor and precision gear box control, crank connecting rod drive.
8.
Bottom drive structure, servo motor and precision gear box control, chain drive.
9.4 axis full digital control, accurate positioning, quick flexibility.
All speeds are fine
It can be adjusted according to the speed of production line
10.
Super man-machine interface, check the running state of equipment and system parameters.
Data can be set according to different glass floor height and Angle, can also be preset or record the current production changes.
11.
Vacuum pump system: high efficiency single rotary vane vacuum pump
Sucker: Adopt imported PF type 120mm sucker
12.5-7 bar, 30 l/min;
Compressed air supply: 5-7bar, 30L/min;
13.
Power supply :380V, 50HZ, three-phase, installed capacity :10KW.
