| Production Name: | Vertical Edge Deleting Machine | Voltage: | 380V 50Hz 3P |
|---|---|---|---|
| Dimension(l*w*h): | 9700mm*2500mm*3400mm | Weight: | 2600kg |
| Power: | 15kw | Warranty: | 1 Year |
| Glass Thickness: | 3 - 15mm | Edge Width: | 10 -150mm |
| Edge Deleting Speed: | 2-29m/min | Glass Conveying Speed: | 0-30m/min |
| High Light: | 150mm Vertical Edge Deleting Machine,10mm Vertical Edge Deleting Machine,Servo Motor glass grinding equipment |
||

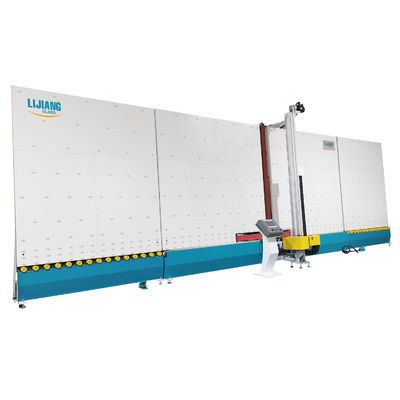

Vertical edge deleting machine Glass Edge Grinding Machine with servo motor

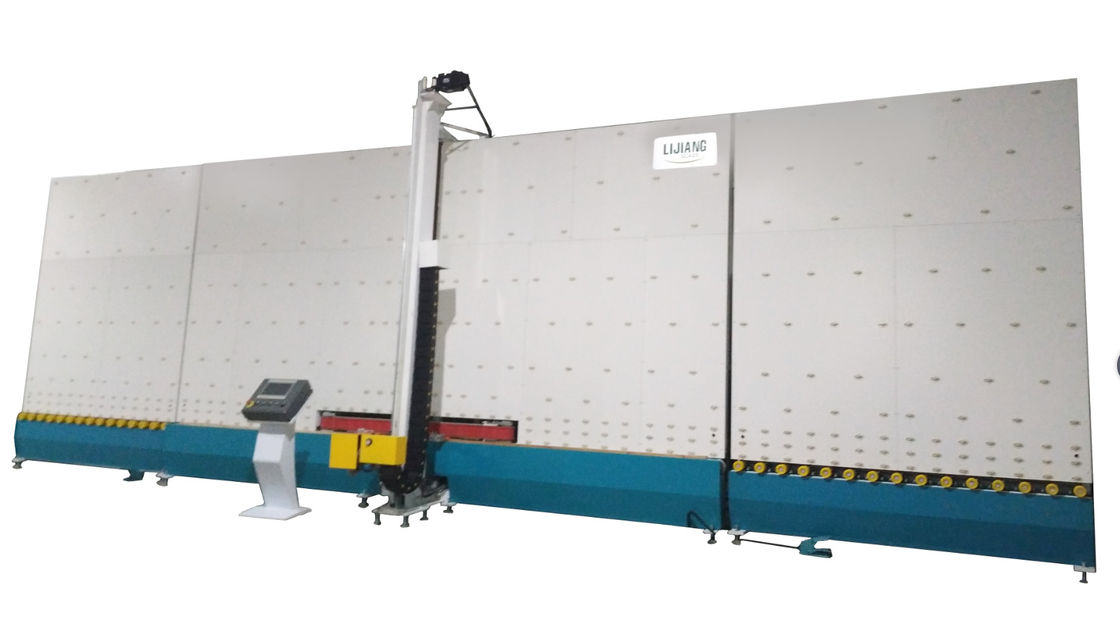

LJDM2545 smart vertical edge deleting machine is used to delete the edge film of the Low-e glass. The glass edge deleting machine adopts imported servo control system, positioning accurately with smooth operation. High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily.
Low-E glass, also known as low radiation glass, is a kind of film product composed of multilayer metal or other compounds on the surface of glass. Compared with common glass and traditional architectural coated glass, the coating has excellent heat insulation effect and good light transmittance.
Low-e glass types:
Single silver Low-E glass
Single silver Low-E coated glass usually contains only one functional layer (silver layer). In addition to other metal and compound layers, the total number of coating layers reaches 5.
Double silver Low-E glass
The double silver Low-E coated glass has two functional layers (silver layer), plus other metal and compound layers, the total number of coating layers reaches 9. However, the technical process control of double silver Low-E glass is much more difficult than that of single silver.
Main feature of Low-E film deleting machine:
Vertical Low-E glass edge deletion machine contains 3 sections: glass loading section, deleting section and glass unloading section. Low-E film deletion machine has 4 kinds of different directions. Online low-e and outline low-e glass.
The vertical low-e film edge deletion machine can delete the double or triple low-e film.
Technical parameter:
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 15KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Taiwan | TAIDA |
| PLC | Taiwan | TAIDA |
| Pneumatic component | Taiwan | AAIRTAC |
| Low pressure electricity | Germany | SIEMENS |
| Circuit breaker | Germany | SIEMENS |
| Sensor switch | Korea | AUTONICS |
| Approach switch | Korea | AUTONICS |
| Limit switch | Taiwan | TEND |
| Connector | Germany | SIEMENS |
| Frequency converter | France | SCHNEIDER |
| Main Button | France | SCHNEIDER |
| Intermediate relay | Japan | OMRON |
Related products
1.Vertical Insulating Glass Sealing Robot LJTJ2540
Main Features:
• Min & Max glass sizes can be optional
• Adopt 8 servo motors
• Adopt Japan servo control system with stable performance
• Automatically measure glass size, glue depth and glue speed with linear adjustment
• Adopt timing belt to keep smooth convey with accurate position
• Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
• Smooth convey without scratch and pollution
• Single-function parts are equipped with manual functions, easy adjustment
• The glass corners are full without air bubbles, smooth surface, no need to
• Full automatic and high-efficiency machine
• Automatically repair glass corners with beautiful surface
• Can coating more than 8 kinds of shaped glass, include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc (Optional)
• Seal stepped glass fully at once (Optional)
• Can seal stepped IG with four sides (Optional)
• Adopts double pumps device to use two kinds of different sealants, such as silicone, polysulfide and silicone structural sealant (optional)
Technical data
| Max. glass size | 2500*4000mm (Optional) |
| Min. glass size | 300*300mm |
| Glass thickness | 12-50mm |
| Working speed | 5-40m/min |
| Air pressure | ≥0.6MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 12kw |
| Overall dimension | 11000*2000*3500mm |
2. Manual Gas Filling Machine LJCJ02N
Main feature
• It is used for filling Argon into insulating glass
• High effectively, allowed for four pieces of IGU
• When the gas is full,it will alarm and stop automatically
• Can set and display the data of gas value
Technical data
| Power supply | 220V 50Hz |
| Total power | 0.1kw |
| Dimension | 620*439*700mm |
3.Manual Gas filling machine LJCJ02
Main feature
• It is used for filling Argon into insulating glass
• High effectively, allowed for four pieces of IGU
• When the gas is full,it will alarm and stop automatically
Technical data
| Power supply | 220V 50Hz |
| Total power | 0.1kw |
| Dimension | 620*439*700mm |
4. Freezer LJSGF01
Main feature
• It is used for storing the gun when manual glue gun stop work during the process of gluing insulating glass
• Storing at low temperature,to prevent sealant solidify
• Apply to polysulfide and silicone
• Can be effectively reduced waste when cleaning the glue
Technical data
| Max refrigerating temperature | 70ºC |
| Min heating temperature | -40ºC |
| Total power | 3.8kw |
| Refrigerating | <150min |
| Overall dimension | 1550*60*1300mm |
5. Rotated Sealant Spreading Table LJSK02
Main feature
• Easy operating, simple and flexible
• It is used for fixing and rotating glass when manual coating the outside of IG glass
• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.37kw |
| Operating dimension | 1500*1500mm |
| Dimension | 600*550*985mm |
Spacer trip cutting machine LJQJ02
Main feature
• It is used for cutting aluminum strip
• Allowed to cut many spacers,keep high efficiency
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.55kw |
| Dimension | 5000*1050*415mm |
