Product Details:
|
| Color: | Customer | Processing Glass Size: | Customer |
|---|---|---|---|
| Voltage: | 380V 50HZ | Condition: | New |
| Dimension(l*w*h): | 25500H*3000W*3500H Mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | 6.5m/min Insulating Glass Production Line,Double Glazing Insulating Glass Production Line,6.5m/min Glass Sealing Machine |
||

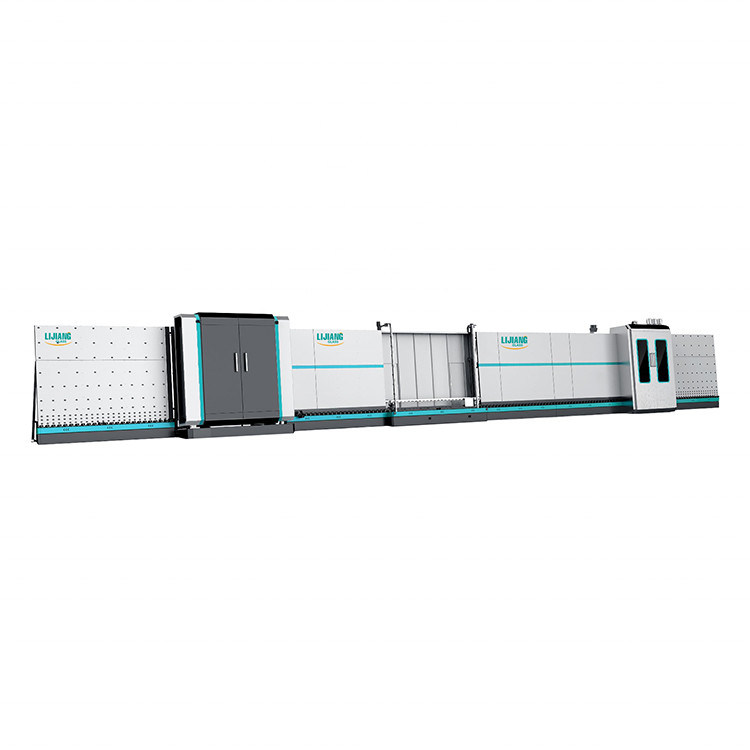

glass production line/insulating glass machine/glass sealing machine/insulating glass equipment/double glazing glass
PARAMETER:
| Equipment Model Parameter name | Lijiang 1800A | Lijiang 1800B | |
| Power supply | 380V 50Hz | 380V 50Hz | |
| Total power | 23.4KW | 23.4KW | |
| Process glass size | Max | 2500×1800mm | 2500×1800mm |
| Min | 450×450mm | 450×450mm | |
| Original glass thickness | 3~12mm | 3~12mm | |
| Max D-value of different edge glass | 0mm | 50mm | |
| Working speed | Washing speed | 6.5m/min | 6.5m/min |
| Conveying speed after washing | 15~32m/min | 15~32m/min | |
| Outline dimension | L×W×H (mm) | 16000×2000×2850 | 16000×2000×2850 |
| Net weight | 5000kg |
5000kg |
|
FEATURE:
-Automatically distinguish the coating side of coated glass and low-E glass.
-Static state load glass when adding glass material to ensure safety in production.
-The washing machine adopts stainless steel and other corrosion resistant material, good waterproof, security, clean, and long useful life. Adopt waterproof bearing without oil lubricant.
-Can clean 3~25mm thickness glass, with wide using range.
-It can process same edge double insulating glass with high efficiency.
-Adopts the world famous brand low-voltage electrics, sensor and PLC, etc.
- PLC control system with touch screen interface, simple operation and high automatic.
-Treat the surface of plate guard with baking paint, powder coated. Appearance is beautiful and durable.
-The dry part use circulation hot wind that ensure the dry effect for glass and reduce the noise.
DETAIL:
| PLC | Schneider | Touch screen | Schneider |
| Frequency controller 0.75Kw | Schneider | Circuit breaker DZX4-100 | Schneider |
| Circuit breaker 6.3-10A | Schneider | AC Contactor | Schneider |
| Relay | OMLON | Photo switch | Banner |
| Solenoid valve | Airtec | Cylinder | JPC |
other product:
1.Spacer Bending Machine
2.Automatic Desiccant Filling Machine
3.Low-E Glass Edge Remover Machine
4.Silicone Sealant Sealing Robot
5.Manual Belt Grinding Machine
