4 Racks Aluminum Spacer Bending Machine For Cutting Aluminum Bars

4 Racks Aluminum Spacer Bending Machine For Cutting Aluminum Bars
4 Racks Aluminum Spacer Bending Machine For Cutting Aluminum Bars 4 Racks Aluminum Spacer Bending Machine For Cutting Aluminum Bars

Large Image :  4 Racks Aluminum Spacer Bending Machine For Cutting Aluminum Bars

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJZW2020
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 20GP container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month

4 Racks Aluminum Spacer Bending Machine For Cutting Aluminum Bars

Description
Production Name: Automatic Aluminum Spacer Bending Machine Spacer Types: Aluminum Spacer/ Stainless Steel / Warm Edge Spacer
Max Spacer Size: 1800*2000mm(in Once)2500mm*4000mm(in Twice) Min Bending Size: 150*300mm
Spacer Racks: 4 Racks Spacer Size: 5.5-26.5mm
Warranty: 1 Year Using: Cutting And Bending Spacer Bars
PLC: Germany Siemens Total Power: 2.5kw
High Light:

4 Racks Spacer Bending Machine

,

150*300mm Spacer Bending Machine

,

4 Racks bar bending machine

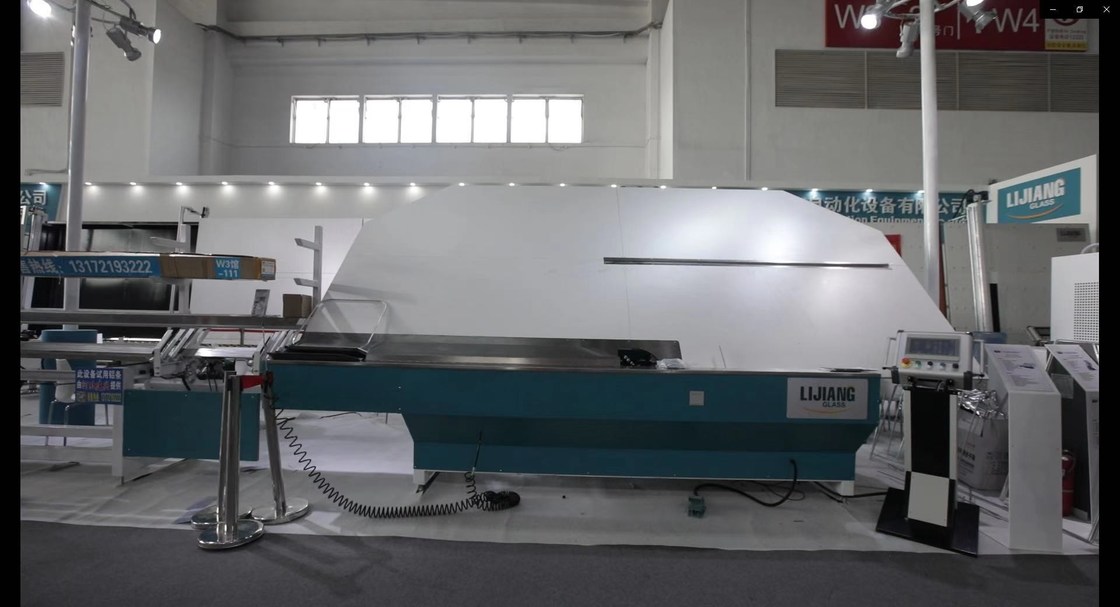

Automatic Aluminum Spacer Bending Machine for Cutting Aluminum Bars with 4 Racks



Automaticaluminum spacer bending machine is used to cut and bend spacer frame for the inner of insulating glass units. Automatic spacer bending machine is one of the auxiliary equipment for making insulating glass. Spacer bender has many optional functions. Such as printing label for spacer's datas,printing logo and date and so on. Also automatic spacer bending machine can bending stainless steel bars and warm edge spacer bars (plastic spacer bars).



Main feature of Automatic spacer bending machine:

• Adopt the control servo feeding system,spacer frame size can be adjusted with an accuracy of 0.1mm/m

• 4 groups of storages (2 or 12 groups of storages can be optional)

• Aluminum spacers are available in sizes of 5.5-26.5mm

• Siemens 1200 PLC control system with fast working speed

• Automatically avoid the pins while bending and cutting

• Bend spacer frames continuously

• Different bending tools for different sizes of spacers

• Pause and Reset device for handling equipment failures

• Bend aluminum spacer, smooth stainless steel, warm spacer

• Connect to ERP system (Optional)

• USB input function, read the excel format file directly

• Automatically drill holes for filling argon gas (Optional)

• Spacer printing code function (Optional)

4 Racks Aluminum Spacer Bending Machine For Cutting Aluminum Bars 0

• Printing label sticker function (Optional)

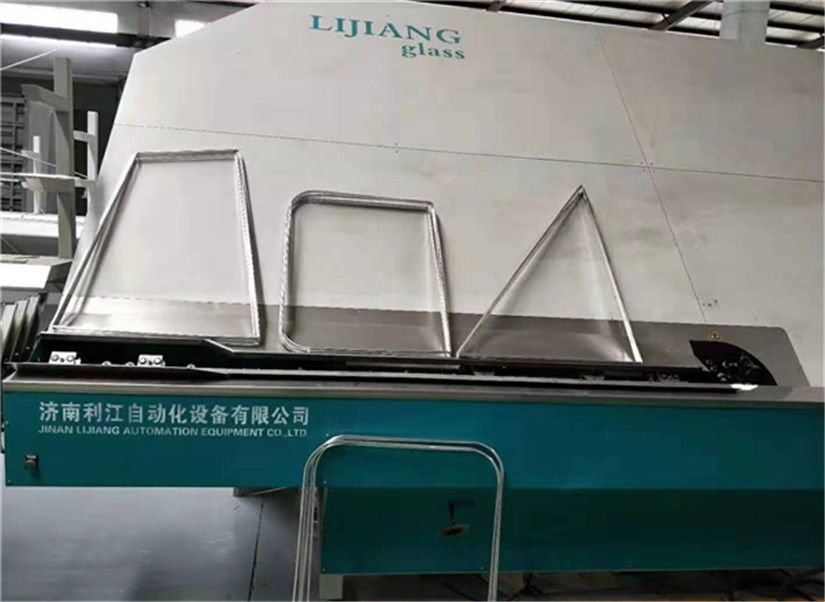

• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 5.5-26.5mm)

Different sizes of aluminum bars require different size tools (Optional)

4 Racks Aluminum Spacer Bending Machine For Cutting Aluminum Bars 1

Tech Parameters :

Max. bending size 2000mm*2000mm
Min. bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed 17s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm



4 Racks Aluminum Spacer Bending Machine For Cutting Aluminum Bars 2

More details of the automatic spacer bending machine :



  • The CNC servo feeding system.
  • The bending speed is automatically adjusted according to the size of aluminum frame to avoid the deformation of large frame frame and ensure the high speed and continuous of small frame.
  • Automatic connection of aluminum spacer bars and intelligent avoidance design of aluminum bar joint (avoid bending or cutting to the joint).
  • The high-speed continuous production function, the operator only needs to ensure that there is material in the material trough and remove the folded aluminum frame from the bending machine (the machine has fault alarm function, which can display the fault location and cause), and the bending machine will stop automatically after processing to the set number.
  • Dormant energy saving function and emergency stop protection.
  • Except for start stop operation, all operations are completed on the touch screen, and the operation platform can be moved. Chinese operation interface, easy to operate, natural, easy to understand.
  • The size datas of glass sheet with 4 specifications and 32 sizes (8 kinds of each specification) can be set. The machine can automatically calculate the aluminum frame data according to each size. Continuous processing can greatly improve the efficiency and speed.
  • All functions can be manually operated to meet the needs of debugging and maintenance.
  • Design of quick maintenance adjustment panel.
  • The function of curved aluminum frame and special-shaped frame (unilateral, bilateral, trilateral, quadrilateral, hexagon, octagon, etc.)
  • Output counting function, intelligent troubleshooting prompt.
  •
  • Online no material prompt, dormancy prompt, fault prompt, work prompt, no material in the process, automatic stop to wait for material, continue to complete the process flow after feeding.
  • The rationality judgment function of aluminum frame data, unreasonable data refuse processing and prompt.
  • The start-up system is fully automatic reset.
  • Automatic cutting of aluminum frame is completed.

Related products



Butyl Extruder Machine LJTB 01

4 Racks Aluminum Spacer Bending Machine For Cutting Aluminum Bars 3

Main feature

• PLC control system, touch screen interface

• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust

• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full

• Fast preheat, improve work efficiency

• with preheating function

• With exhaust inflatable function, improve the quality of sealing and save time for plastic

• Quickly coating speed,can up to 47m/min

• Saving the amount of glue



Technical data



Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 6A - 27A
Speed 5-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5.7KW,50HZ
Dimension 2800×700×900mm(L×W×H)
weight 650kg





Electrical parameters



Name Original Brand
PLC China KINCO
Valve German HAWE
Low voltage electrical apparatus German SIEMENS
Hydraulic and pneumatic supercharging system German MAXIMATOR
Frequency converter China KINCO
Pneumatic components Taiwan ARTAC
Quick exhaust valve/Vacuum generator Japan SMC SMC
Travel light Japan OMRON
Optical fiber Japan OMRON
