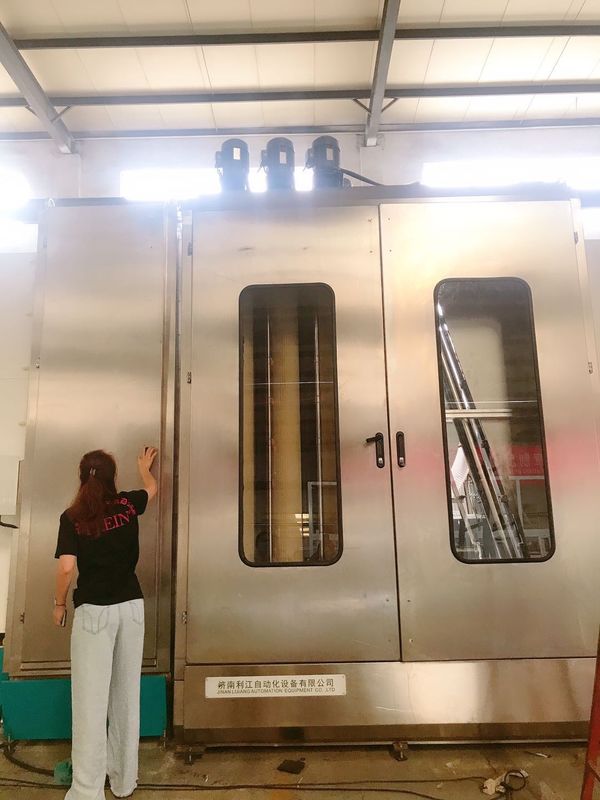

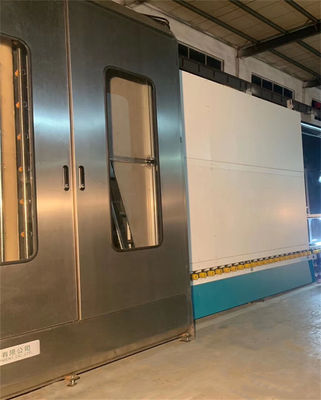

Vertical Glass Washing And Drying Machine With Soft Brushes And Stainless Steel Material
Main features of the vertical Glass Washing Machine
- Wash online and offline low-e glass, automatically recognizes Low - e film
- Adopt the independent wind knife system to improve the washing efficiency
- The air knife can automatically adjust the width according to glass thickness
- Water tank automatic temperature control, water replenishing system
- European silencer system & stainless steel drying system
- Display washing speed on the screen directly
Transfer section of the vertical glass washing and drying machine
1. Low - e glass sensor
This sensor is installed before washing machine.It can automatically recognize Low- e glass, preventing the glass from dropping Low - e surface.
2. Conveyor roller
The transfer : The front and back transfer wheel are all moved, all actively transferred. It can guarantee the big size glass and thick glass pass through smoothly
Washing & drying section of the vertical glass washing machine
1. Materials
The whole washing and drying section adopt stainless steel material, including the plate and interior spare parts,with waterproof accessories.
The thickness plate on the washing machine can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer.
2 . 6 pieces of Soft Brushes
It has 6 brushes which are all soft brushes, can wash flat glass, temper glass and low - e glass. It has a diameter of less than 0.1mm bristles, never damage glass, especially for protecting low - e glass.
3. Noise reduction device
The noise can be controlled below 90 decibels by using nylon gear and sponges, our washing machine has the smallest noise decibel.
4. Water heating system
Adopts air heating system, use soft water to wash glass clearly
5. Unique air knife design
Air knife is float design, it always keep the right and suitable distance 3mm between the glass surface and air knife (Same like LISEC structure ) check the following picture. (3mm is the best drying distance)
6. Automatically recognize glass thickness
1) . There is a universal joint device, when the glass thickness was changed, the wind knife will move forward and backward to adjust the distance so that the relative distance between the wind knife and the glass is constant, so as to avoid damage to the glass due to the changes of the glass thickness.
2) . There are chain gears on both sides of the bottom of the glass to actively transfer the glass which can keep a fast speed, not only the large size, small size glass can also be passed quickly .The front and back squeeze wheel are all actively moved and conveyor. No mater the glass size is big or small , it all guarantee the glass pass through smoothly.
Detection section of the vertical glass washing machine
1. Checking lights
Using Energy saving lights to check the glass. Clearly reflects whether the glass is lean and free of impurities.
Technical data
| Max.glass size |
2000mm*2500mm / 2500mm*3500mm |
| Min.glass size |
280*450mm |
| Glass thickness |
3-15mm (3 - 30 mm are optional) |
| Glass washing speed |
2-10m/min |
| Glass conveyor speed |
45m/min |
| Washing brushes |
3 pairs of soft brushes |
| Water supply |
Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply |
Flow: 0.8m/min |
| Air pressure |
≥0.8MPa |
| Total power |
3P 380V 50Hz |
