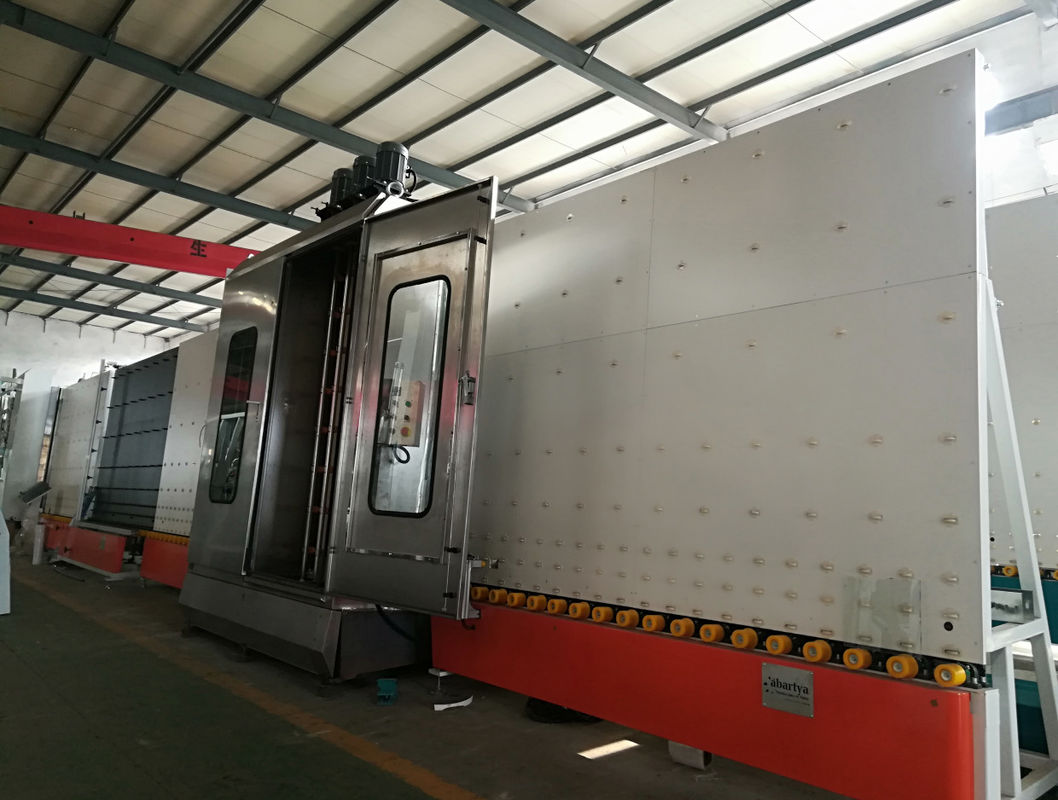

DGU 45m/min Insulating Glass Making Machine Processing Production Line

DGU 45m/min Insulating Glass Making Machine Processing Production Line
DGU 45m/min Insulating Glass Making Machine Processing Production Line DGU 45m/min Insulating Glass Making Machine Processing Production Line

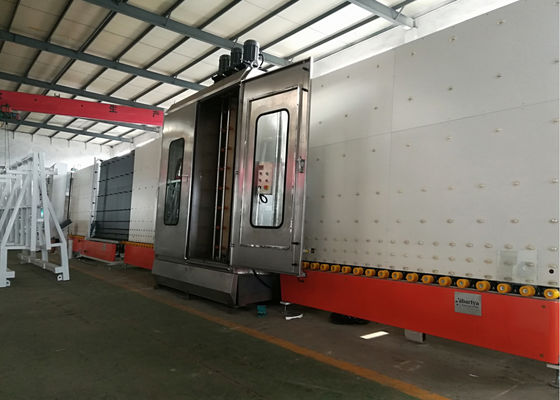

Large Image :  DGU 45m/min Insulating Glass Making Machine Processing Production Line

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJBZ2535
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: 2 * 40 HQ containers
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 5sets per month

DGU 45m/min Insulating Glass Making Machine Processing Production Line

Description
Machine Name: Double Glazed Glass Production Line Max Glass Size: 2500 Mm*3500 Mm
Glass Thickness: 3 - 15 Mm Washing Speed: 2-10m/min
Glass Conveyor Speed: 45m/min IG Thickness: 60 Mm
Washing Machine Material: Stainless Steel Optional Function: Triple Glass / Step Glass
Warranty: 1 Year Washing Brushes: 3Pairs
High Light:

45m/Min Insulating Glass Making Machine

,

DGU Insulating Glass Making Machine

,

45m/Min glass production machinery

DGU insulating glass making machine processing production line





Automatic Insulating Glass Production Line series

  Unit LJBZ2025 LJBZ2025G LJBZ2535 LJBZ2535G LJBZ2535DG LJBZ2535GS
Power supply   380V50Hz
Total power KW 39.5 36 41 39.5 44 40
Washing speed m/min 2~10
Maximum working speed m/min 45
Minimum glass size mm 450*280
Maximum glass size mm 2000*2500
2000x3000(Secondary pressure plate)
2500*3200
2500*3500(Secondary pressure plate)
2500x4500(Secondary plate pressing and auxiliary sucker mechanism)
2500*3500
Flat glass thickness mm 3~15(3-30)
Washing brushes Pieces 6
Maximum thickness of insulating glass mm 60
Total gas consumption L/min   1200   1200
Conveyer roll height mm 520
Dimension L*W*H
长*宽*高(mm)
19500*3500*3200 23500*3500*3700 27000*3500*3700 23800*3200*3700

Automatic insulating glass production line LJBZ2025 is not include gas filling function,can make max glass size 2000*2500

Automatic insulating glass production line LJBZ2025G is include gas filling function.

Automatic insulating glass production line LJBZ2535 is not include gas filling function,can make max glass size 2500*3200

Automatic insulating glass production line LJBZ2535 is include gas filling function,can make max glass size 2500*3200

Automatic insulating glass production line LJBZ2535DG can filling argon gas two pieces at one time,can make max glass size 2500*3200

Functions :

double glazing glass

triple glazing glass

four sides step glazing glass



Special technology of IG Line :



Making two pieces of IG units in once time

Filling argon gas online

Shaped glazing glass

Low-e film glazing glass

Air floating insulating glass line



Main Features of IG Line:





• Adopt SIEMENS control system, keep stable performance

• PLC control system, touch screen interface

• Applicable to produce stepped IG, triple IG and shaped IG

• Using servo to control system, modular function, superposition function

• Automatically adjust the depth of glue with digital display

• Min & Max glass sizes can be optional

• Two pieces of IGU can be made and filled with argon gas in one time (Optional)



• Automatic Vertical Insulating Glass Processing Line has 7 sections:

01 transfer section;

02 washing section;

03 discharge section;

04 inspection and installation section;

05 transfer section;

06 pressing and filling section;

07 discharge section.



DGU 45m/min Insulating Glass Making Machine Processing Production Line 0



Washing section features:





• Using 3 pairs of soft brushes with 0.1mm soft hair, can wash low-e glass

• The air knife can automatically adjust the width of the air knife according to the thickness

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• Stainless steel material

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• European silencer system

• Water tank automatic temperature control, water replenishing system

• Pre-washing (Optional)



Pressing section features:



• Pressing board with adjustable structure to guarantee long-lasting service life

• Adopts conveyor belt to transfer glass, uses servo motor to press glass

• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice

• The pressing plate can be opened for easy maintenance



Filling argon gas automatically

• Automatically filling argon gas inside the pressing plate with precise gas concentration

• When filling shaped IG, inflatable front side of the rectangular size required 450mm (length), 280mm (high)

• Fast reacting sensor for permanent control of gas filling process

• Automatically set gas data and display data on the screen

• No need to drill holes in spacer frame

• Standard gas is Argon gas





LIJIANG Glass Main products :

IG line series;

Sealing robot series;

Spacer bending machine series;

Butyl extruder machine series;

Low-e film edge deletion machine;

Molecular sieve filling machine;

Auxiliary insulating glass machines.

Insulating Glass Materials

About 20 products are widely used in customized insulating glass industry, windows and doors, building curtain wall, industrial aluminum alloy, high-speed rail, elevator and advertising industry.



Related product

1.Manual Gas Filling Machine LJCJ02N

DGU 45m/min Insulating Glass Making Machine Processing Production Line 1

Main feature

• It is used for filling Argon into insulating glass

• High effectively, allowed for four pieces of IGU

• When the gas is full,it will alarm and stop automatically

• Can set and display the data of gas value



Technical data



Power supply 220V 50Hz
Total power 0.1kw
Dimension 620*439*700mm

2.Cantilever crane LJXJ300

DGU 45m/min Insulating Glass Making Machine Processing Production Line 2

Technical data



Max.load 300kg
Rotated angle 90°
Upright height 3400mm or 3900mm
Rail length 1000mm
Quantity of sucker 2 or 4
Air pressure 0.5MPa-0.8MPa
