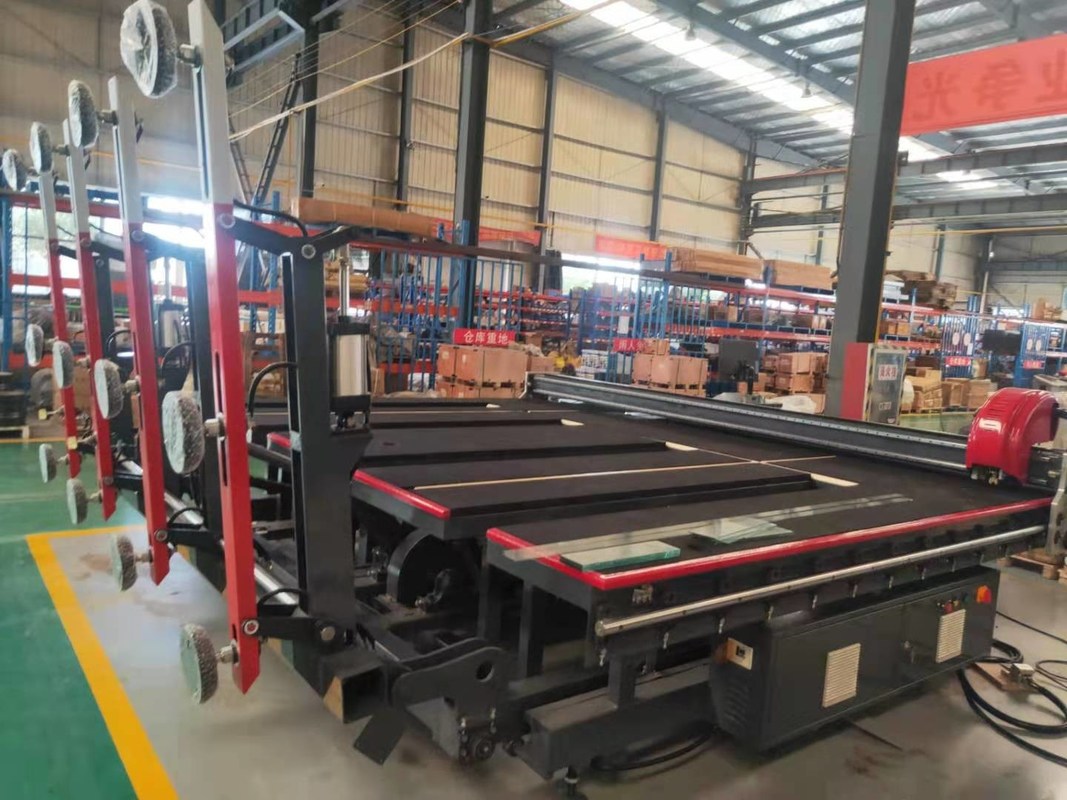

Thick 2-25 mm Automatic Glass Cutting Machine For Insulating Glass Double Glass Processing

Product Application

Building glass, automotive glass, craft glass, round piece of glass, decorative glass, ambry glass, coated glass, appliance glass, bathroom glass, lenses handicraft glass, solar glass, kitchen utensils and appliances, spell mirror glass,etc.

Production Introduction

Small footprint, not only suitable for the factory,but also suitable for store operations, linear cutting and shaped cutting in one, Remote control command operation, one set machine with 3 machine’s functions, can replace the expensive automatic glass cutting line, reducing the use of equipment Comprehensive cost, It is the best choice of glass processing enterprises.

Main Features

1)2520L set automatically glass sheet uploading, automatically cutting, automatically breaking pieces, floating in one, and free to walking through the remote control command in the factory area.

2)Adopt Import optimization software reduces the loss of the glass!.

3)With automatic correction. To ensure cutting accuracy.

4)Special-shaped cutting: the equipment can be used to automatically cut any straight line, slash or contour in high precision.

5)English(Chinese) operation interface: Man-machine dialogue adopt full English(Chinese) menu.

Air-floated Breaking Table for Glass Cutting

It is mainly composed of four parts: frame mechanism, splitting mechanism, pneumatic control system and electrical control system. * Sheet size: Min size: 1500 *1200mm (Single Side loading) * Max loading size: 2600 x 2000 mm * Glass sheet thickness: 3 ~ 19mm * Working absorption depth: 700 mm * X-axis walking speed: 5-25m/min (adjustable) * Y-axis walking speed: 8-12 m/min (adjustable) * Conveying speed: 5-25m/min (adjustable) * Number of flip arms: 8 arms (double side loading) * Number of single arm suckers: three * Loading type: Double side loading * Working cycle: 45S (15S for each additional position) * Installation power supply: AC380V/50HZ (special circumstances can be adjusted according to customer requirements) * Installation total power: 5-10 kw * Compressed air: 0.6-0.8 Mpa; * Vacuum: -50-99 Kpa (adjustable according to glass thickness) * Working table height: 900 + 20mm * Machine size: 4650 x 2980 x 900mm

Fully Automatic CNC Glass Cutting Machine

Its working principle is to convey the cut glass by conveying belt to worktable, automatically input the position of glass through photoelectric scanning system, and then the cutting head with diamond wheel on the cutter holder moves along X and Y directions respectively by program control,cutc the sheet. CNC motion controller is used in the control part of the machine, and advanced AC servo motor is used in the drive part. * Max size: 2600*2000mm * Thickness:3～19mm * Cutting accuracy:±15 * Cutting accuracy of special-shaped glass:±20 * Cutting speed:0-200m/min * Conveying speed:0-25m/min * Machine size:9600X2800X900±20mm * Working table height:900mm±20mm * Weight:2600kg * Total power of equipment:5-8kw

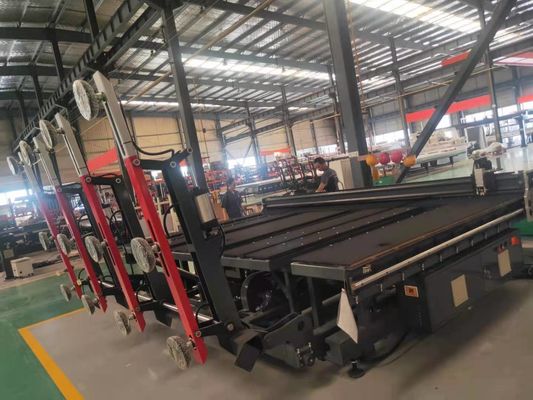

Fully Automatic Glass Loading Table

It is mainly used for automatic glass loading. After putting the glass in the designated position and giving the signal of loading, the big arm turns up about 95 degrees through the overturning mechanism, and the whole machine starts to move forward. When the induction device on the small arm touches the glass, the whole machine stops walking and the glass is sucked by the suction cup through the vacuum system on the glass,small arm lifting motor lifts the glass upward and backward about 80 mm. The walking motor retreats and the big arm falls down. When the bing arm is in place, the suction cup under the glass begins to blow. When the small arm falls down, the glass falls on the conveyor wheel. Finally, the glass is conveyed to the cutting table by the conveyor wheel. * Breaking bar: 1+1 type * Table Size: 9600x2800x900mm * Glass thickness:3-19mm * Power: 4kw * Table height: 900 + 20mm
