Product Details:
|
| Certification: | CE | Production Name: | Automatic Aluminum Spacer Edge Bending Machine |
|---|---|---|---|
| Max Spacer Size: | 2000mm*2000mm | Min.bending Machine: | 150*250mm |
| Spacer Types: | Aluminum Space/warm Edge Spacer | Servo Motor: | Servo Motor |
| Machine Type: | Beading Machine, | Usage: | Aluminum Spacer Bar Bending, Bend Aluminum Spacer Bar Into Required Shape |
| Automation: | Automatic | Aluminum Spacer Width: | 6-27A |
| High Light: | 25s Aluminium Profile Bending Machine,Servo Motor Aluminium Profile Bending Machine,Servo 25s aluminum profile bending machine |
||

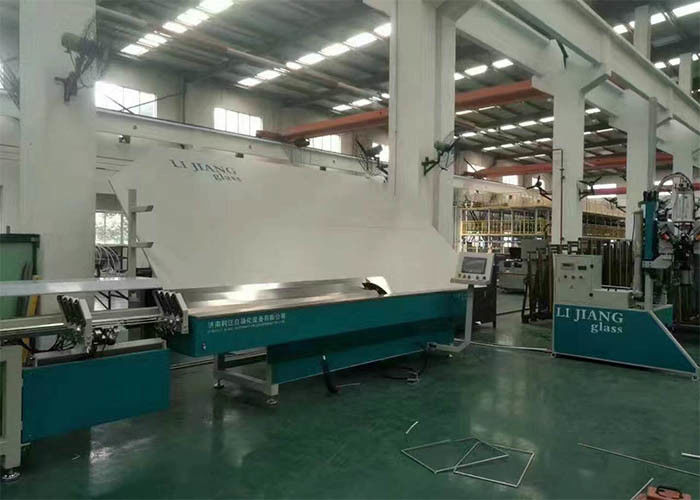

Automatic Spacer Edge Bending Machine for Double Glazing Glass Processing
Overview of fully automatic bar bending machine
Insulating glass is made by 2pcs or more float glasses which filled with desiccant of Argon gas with Aluminum frame.Primary seal(butyl)between insulating glass and Aliminum frame, secondry seal(polysulfide or structure). Insulating glass will be effectively protect radiation when coated Low-E film.
Technical Data of Automatic Aluminum spacer bending machine
|
Max. bending size
|
2000mm*2000mm |
|
Min. bending size
|
250mm*180mm |
|
Aluminum spacer width
|
6A - 27A |
| Spacers racks | 4 Racks |
|
Spacer size error
|
±0.5mm |
|
Angle error
|
±1° |
|
Processing speed
|
< 25s (1000mm*1000mm) |
|
Air supply
|
≥0.65MPa |
| Voltage | 380V50Hz 3P |
| Total power | 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Detail of Automatic Aluminum spacer bending machine
1.Siemens 1200PLC control system with fast working speed.German siemens plc control system,touch screen interface.
2.Automatic Aluminum spacer bending machine have Four or Twelve different spacer size storage units can choose
3.Automaticlly cut and feed Aluminum spacers
4.Heavy duty connectors ,convenience and safety for installation and debugging
5. Aluminum spacers are available in different specifications and in sizes of 6A-27A.
6.Support continuous bending , it automatically avoid spacer -connection while bending and cutting
7.Automatic spacer bending machine can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (optional)
8.The special machine hand device is used to bend big spacer frame
9.USB input function ,it can read the excel data directly
10.Spare parts of all machine have ID code ,convenient for after-sale service
Features of Aluminum Spacer Bar Bending Machine
• Siemens 1200 PLC control system with fast working speed
• 4 or 12groups of spacer racks
• Bend aluminum spacer, smooth stainless steel, warm spacer
• Bend spacer frames continuously
• Automatically avoid the pins while bending and cutting
• Automatically cut and feed aluminum spacers
• Aluminum spacers are available in sizes of 6A-27A
• Pause and Reset device for handling equipment failures
• Different bending tools for different sizes of spacers
• USB input function, read the excel format file directly
Optional functions
• Connect to ERP system
• Drill holes
• Printing code
• Printing label sticker

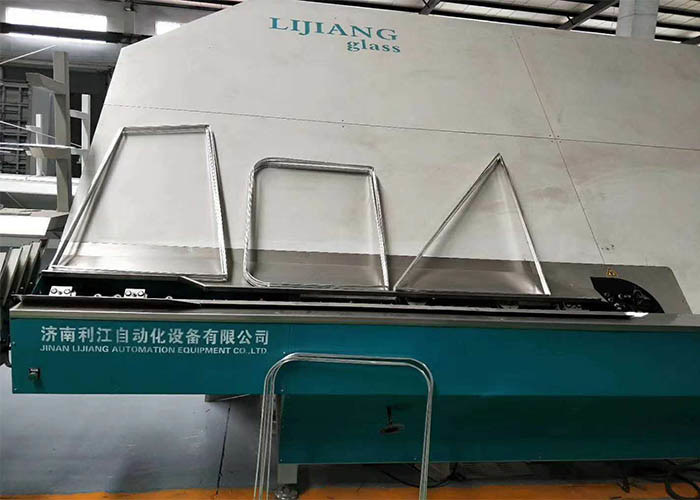

• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools
Related Product
Smart Vertical Edge Deleting Machine LJCM2545
Main feature
• Two-way glass access
• Automatically measure size
• Automatically distinguish low-e surface
• The head can be rotated 360°
• Safe and full automatic device
• PLC control system, touch screen interface
• Six servos control system
• Edge deletion is adjustable
• Intelligent control system, can recognize batch processing
Technical data
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 1. 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Taiwan | TAIDA |
| PLC | Taiwan | TAIDA |
| Pneumatic component | Taiwan | AAIRTAC |
| Low pressure electricity | Germany | SIEMENS |
| Circuit breaker | Germany | SIEMENS |
| Sensor switch | Korea | AUTONICS |
| Approach switch | Korea | AUTONICS |
| Limit switch | Taiwan | TEND |
| Connector | Germany | SIEMENS |
| Frequency converter | France | SCHNEIDER |
| Main Button | France | SCHNEIDER |
| Intermediate relay | Japan | OMRON |
