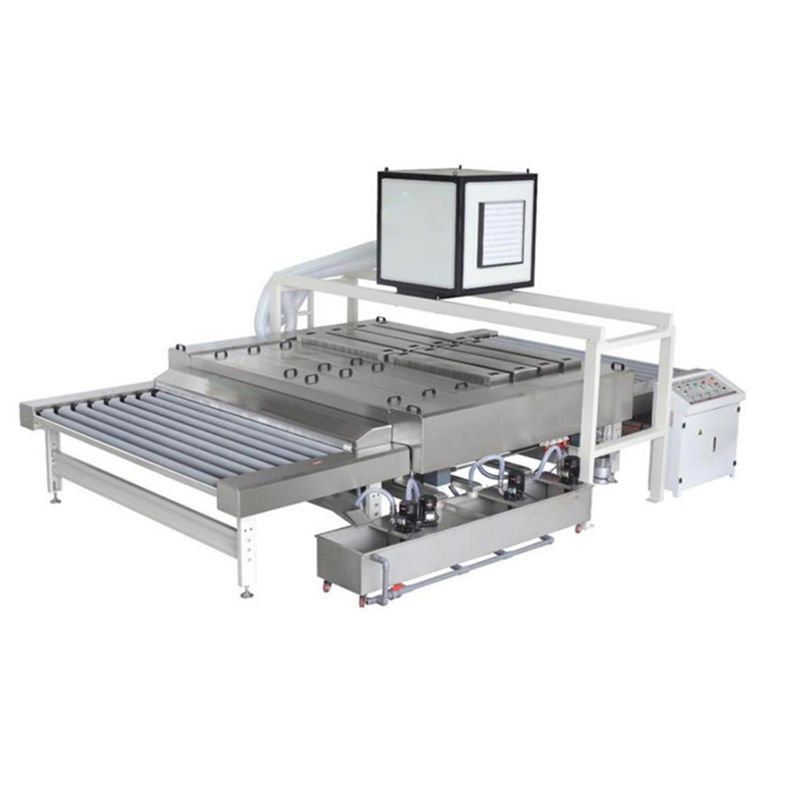

Horizontal glass washers for float insulated laminated glass and tempered glass Maximum size can reach 2600 mm

Name  application

A glass washer used to clean and dry the top and bottom surfaces of regular flat glass and high quality Low-E glass, consisting of an inflow segment, a flush air drying segment and an outflow segment.
The machine that cleans and dries glassware automatically cleans both sides of the product at the same time via the upper and lower brushes. The device should do the following:

-Glass loading (automatic from processing line);

-Glass cleaning (automatic);

-Glass drying (automatic);

-Unload (manual).

• Requirements for compressed air.

Pressure – 6 bar.

• Water Requirements.

Pressure-4 bar.

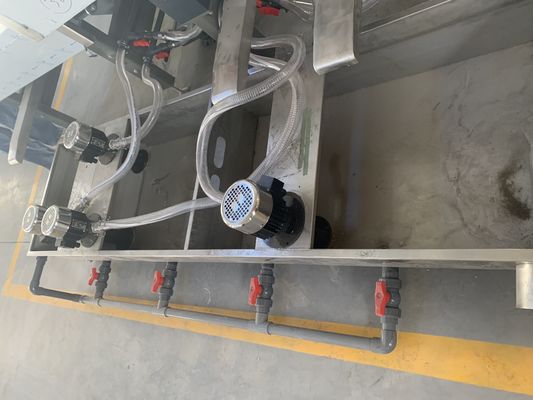

Water tank details►
             The washing part in contact with water is made of stainless steel

Air knives detail ►
           Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing)

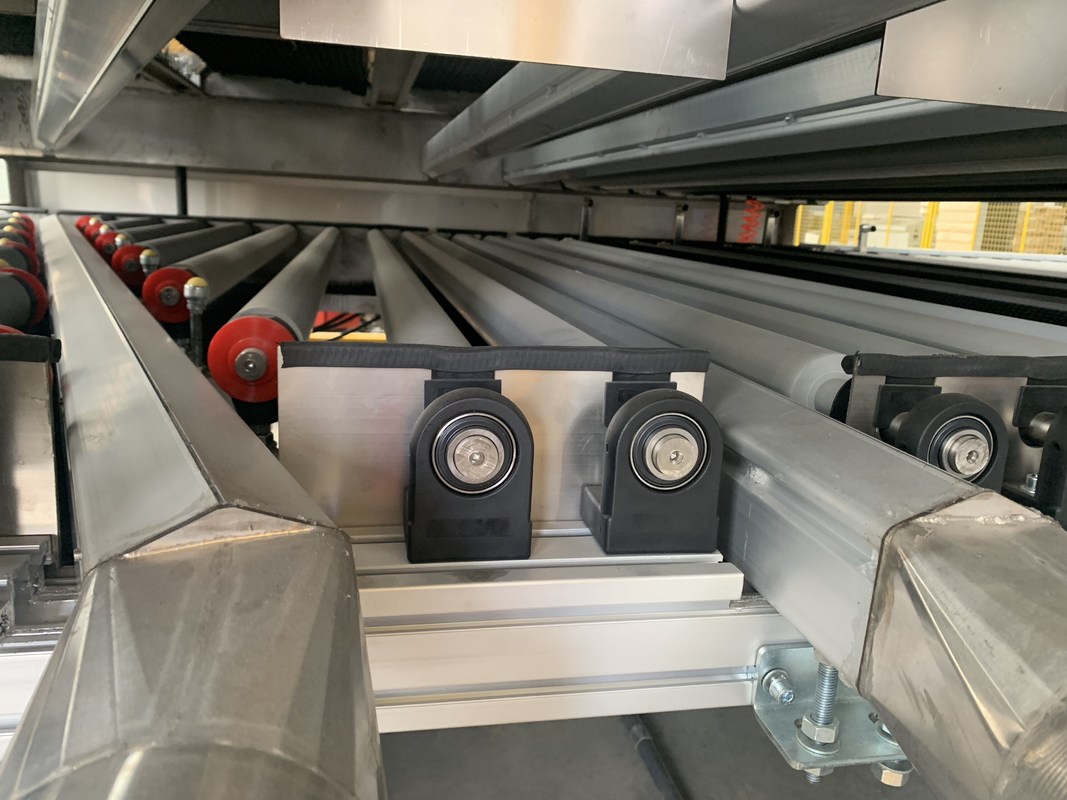

High quanlity profile detail►
            Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency

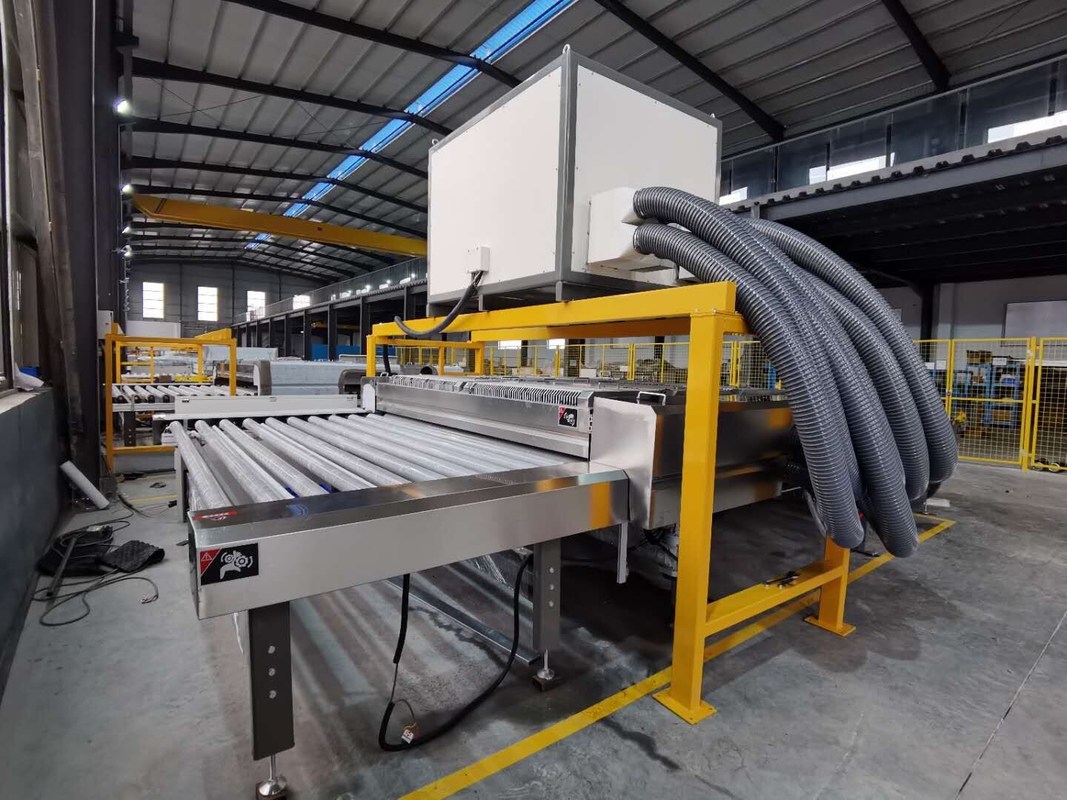

Fan details ►
The fan is equipped with an air filter in the air inlet chamber, which has a large air volume and excellent air drying effect. The entire fan box is installed at the top of the workshop and has an air filter screen on the side for easy inspection and cleaning

Technical parameters:

1. Maximum glass width: 2500mm (effective maximum: 2650mm)

2. Minimum glass specifications: 400 mm x 400 mm (limited to one row on the left and right)

3. Glass thickness: 3mm-25mm (digital display)

4. Velocity range: Glass thickness within 3-25mm Vmax = 1-12m / min

5. Main drive, brush speed adjustment method: Frequency control

6. Table height: 900 ± 25mm

Structural characteristics:

• Aluminum alloy assembly structure, no scrap concept, permanent use,
  High efficiency, energy-saving 70% efficiency;

  2. The remaining sheet metal parts are sprayed with advanced machinery

  Paint or powder;

  3. Rubber rollers are made of vulcanized rubber with stainless steel shaft.

  4. The cleaning part that comes in contact with water is made of stainless steel.

  5. Cleaning department, lift of the whole wind staff, maximum lift: 350mm, easy to clean and maintain.

  6. Three pairs of brushes (Ø150mm) stainless steel shaft construction (Low-E glass, regular coated glass, and sunshine coated glass can be cleaned without damaging the coated surface).

  7. Two sets of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with the heating system (temperature control, optional opening and closing);

  8. The fan is equipped with an air filter in the air inlet chamber, which has a large amount of air and has a good air drying effect. The entire fan box is installed at the top of the workshop and has an air filter screen on the side for easy inspection. And cleaning;

  9. Gear transmission, frequency control, the main drive of digital display, rotation of brush roller in cleaning section are driven by independent belts of upper motor and lower motor respectively, frequency conversion adjustment speed is stable, Achieves highly demanded cleaning of special glass with a long service life;

  10. Mechanical button control, washing machine digital display, easy to operate, easy to operate, easy to maintain.

  11. Cleaning the water tank of the outside washing machine, convenient water tank, water exchange, check, cleaning effect of the washing machine will be cleaner.

  12. PLC control, touch screen display optional. Convenient for operator operation and maintenance, it can be connected to all manufacturers of edge grinders without gaps. (Please purchase separately if necessary)
