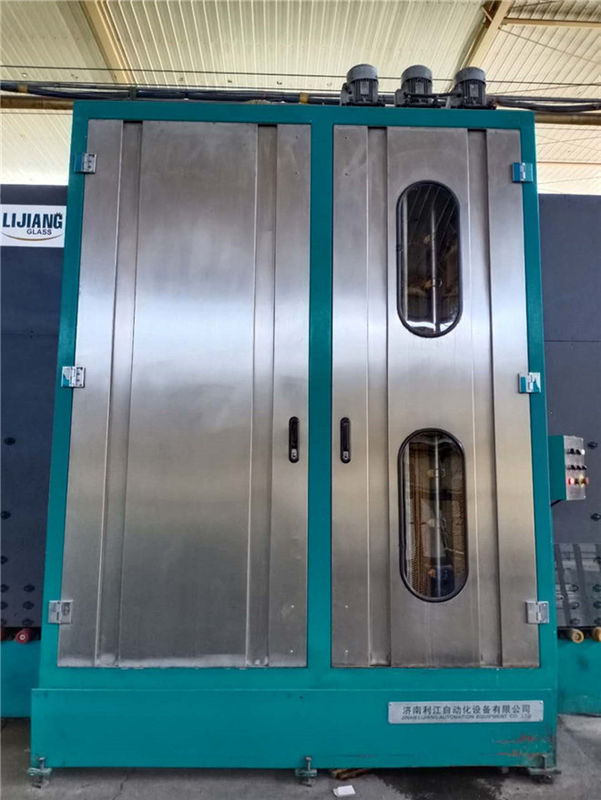

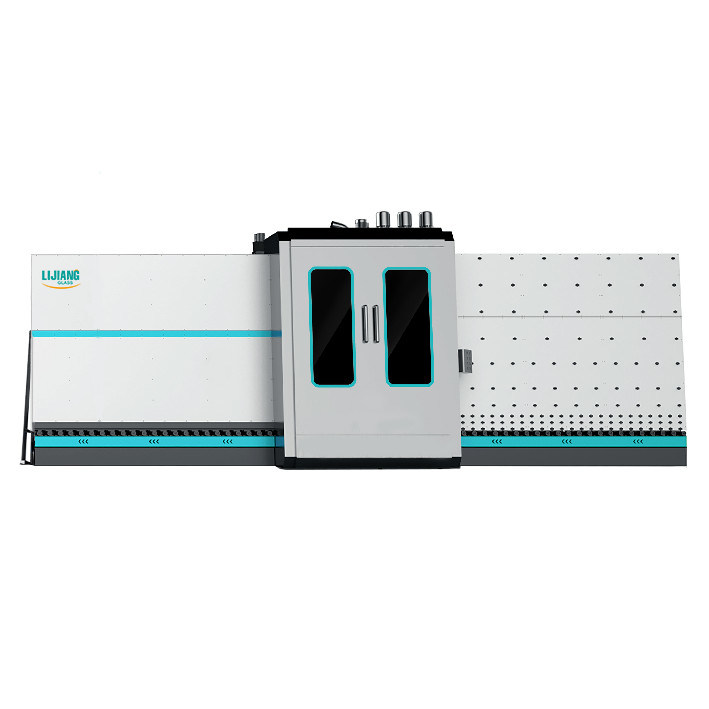

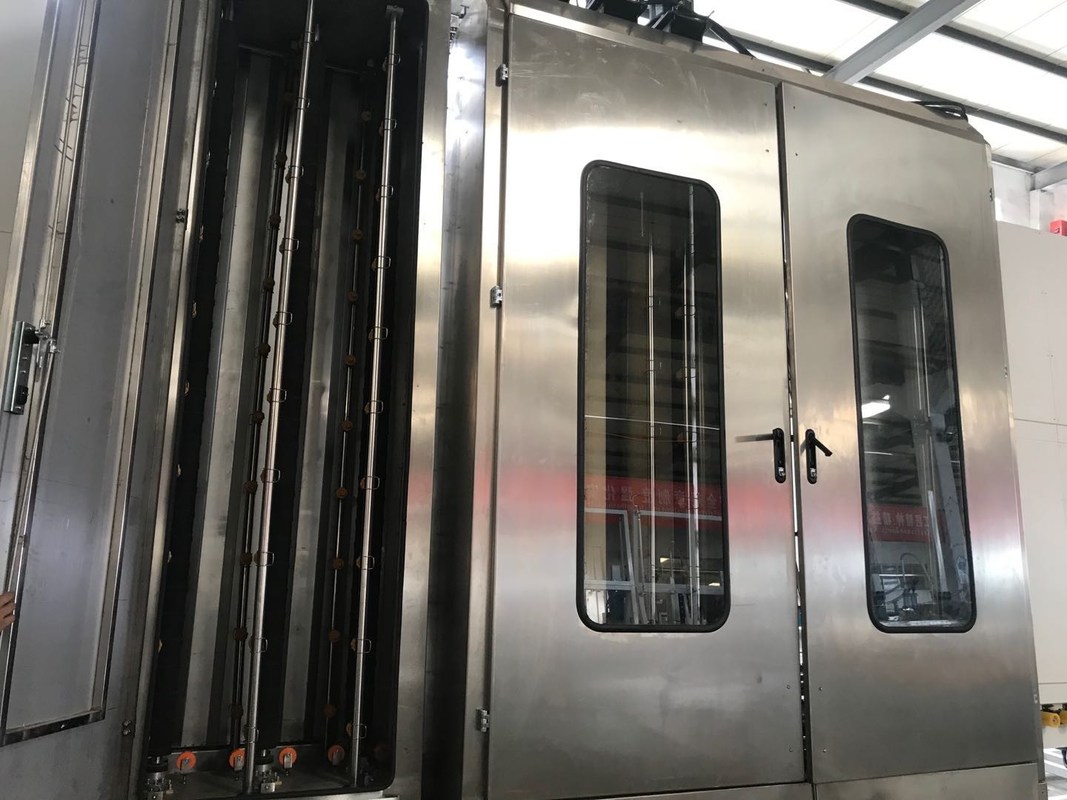

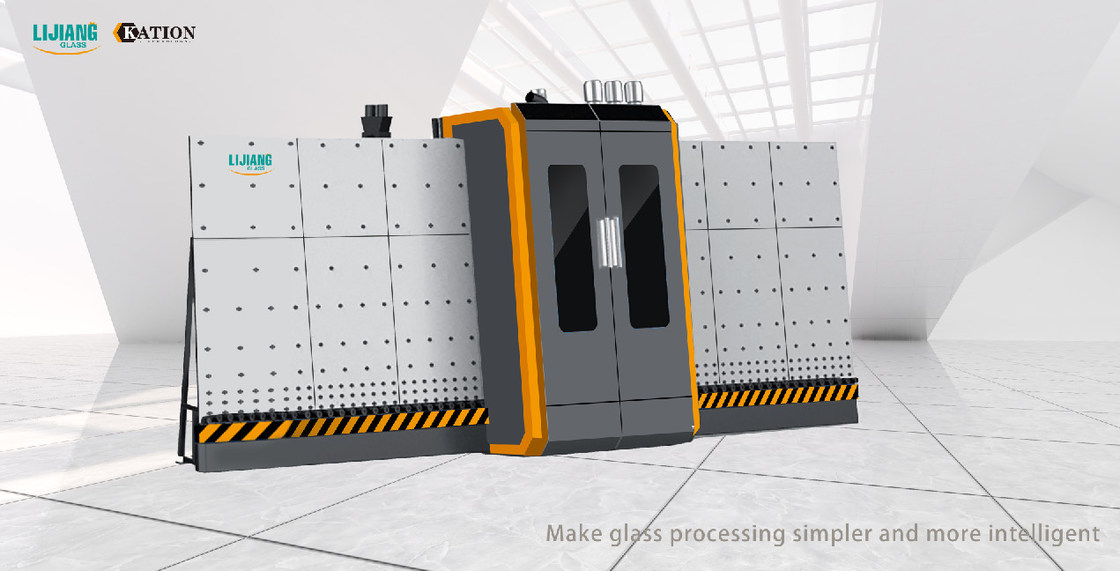

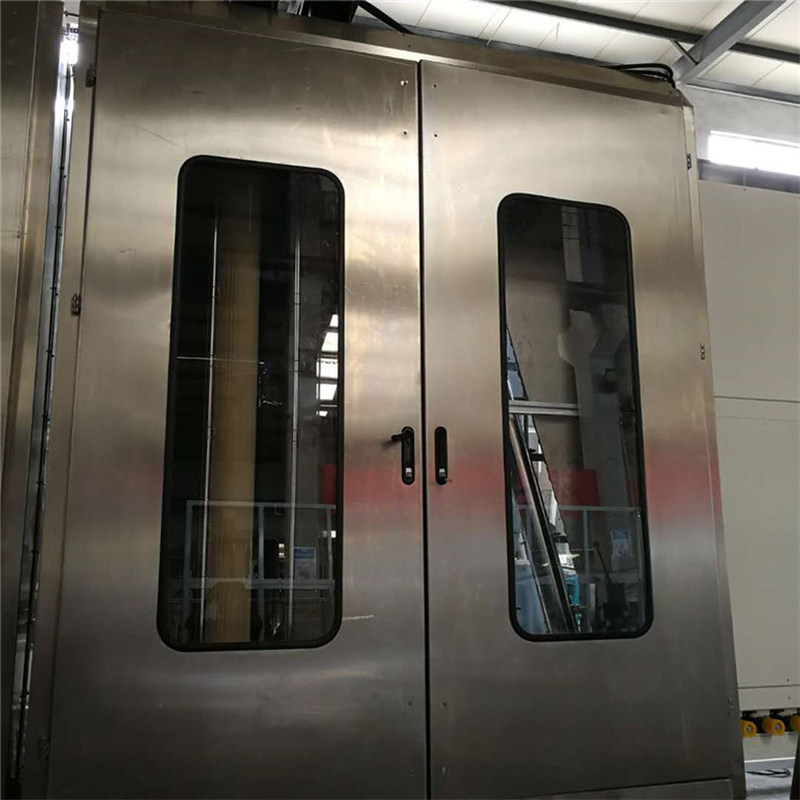

12 Meter/Min Vertical Insulated Glass Washing And Drying Machine High Efficiency

12 Meter/Min Vertical Insulated Glass Washing And Drying Machine High Efficiency
12 Meter/Min Vertical Insulated Glass Washing And Drying Machine High Efficiency 12 Meter/Min Vertical Insulated Glass Washing And Drying Machine High Efficiency 12 Meter/Min Vertical Insulated Glass Washing And Drying Machine High Efficiency 12 Meter/Min Vertical Insulated Glass Washing And Drying Machine High Efficiency 12 Meter/Min Vertical Insulated Glass Washing And Drying Machine High Efficiency 12 Meter/Min Vertical Insulated Glass Washing And Drying Machine High Efficiency

Large Image :  12 Meter/Min Vertical Insulated Glass Washing And Drying Machine High Efficiency

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: CP-2500A
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 35000
Packaging Details: Container
Delivery Time: 30
Supply Ability: 30

12 Meter/Min Vertical Insulated Glass Washing And Drying Machine High Efficiency

Description
Name: Glass Washing Machine Technical Parameters Maximum Glass Width: 2500mm (effective Maximum: 2650mm)
Minimum Glass Specification: 400mm×400mm (limited To Single Row On Left And Right Sides) Glass Thickness: 3mm-25mm (digital Display)
Speed Range: Glass Thickness Within 3-25mm Vmax=1-12m/min Main Drive, Brush Speed Regulation Method: Frequency Control
Table Height: 900±25mm Total Power: 42KW(water-bearing Wind Heating: 15KW)
High Light:

Insulated Glass Washing And Drying Machine

,

12 Meter/Min Glass Washing And Drying Machine

,

12 Meter/Min Vertical Glass Washing Machine

High Efficiency Vertical Automatic Insulated Glass Washing and Drying Machine



Glass washing machine technical parameters CP-2500A (12 m/min)



1, USES  of  top load horizontal axis washing machine


     glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces of ordinary plate glass

and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.



2, Structural characteristics  of washing machine for glass


1. Aluminum alloy assembled structure, no scrap concept, permanent use,
     high efficiency, energy saving 70% efficiency;
2. The rest of the sheet metal parts are sprayed with advanced mechanical
    paint or powder;
3. The rubber roller is made of vulcanized rubber with stainless steel shaft;
4. The washing part in contact with water is made of stainless steel;
5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain;
6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine

coated glass can be washed without damaging the coated surface);
7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with

heating system(with  temperature control device, optional opening and closing);



Technical data  of   washing glass machine



Max.glass size(Optional) 2500*3500mm
Min.glass size 280*450mm
Glass thickness 3-15mm
Glass washing speed 2-10m/min
Glass conveyor speed 15m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Dimensions approximately 6260*4800*3100
Weight 3940kg
Total power 3P 31KW



Electrical parameters  of  textile washing machine



NAME ORIGIN BRAND
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Photoelectric switch Korea AUTONICS
Button and indicator light France SCHNEIDER
Touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
Transfer motor Taiwan LINHAI
Brush motor China QINGHUA
Water pump China LINGXIAO
Pneumatic Components Taiwan AIRTAC



12 Meter/Min Vertical Insulated Glass Washing And Drying Machine High Efficiency 0
