Product Details:
|
| Production Name: | Glass Lifting Machine | Glass Weight: | 400 Kg / 600 Kg / 800 Kg |
|---|---|---|---|
| Glass Suckers: | 4 / 6 / 8 Or More | Brand: | LIJIANG GLASS |
| Warranty: | 1 Year | Voltage: | 220 V |
| High Light: | 600kg Vacuum Glass Lifter Machine,800kg Vacuum Glass Lifter Machine,800kg suction cup lifting device |
||

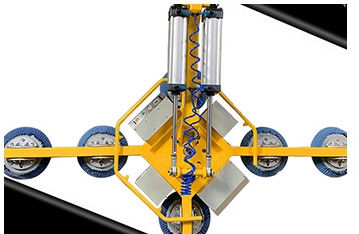

Manual Vacuum Glass Lifter Machine For Loading And Unloading Machine With Four Suckers
1. Function description of glass lifting devices
Parameters of glass lifter machine :
|
Parameter configuration |
Parameter configuration | Parameter configuration | Parameter configuration |
| load KG | 400KG | 600KG | 800KG |
| Model | DP-X4P | DP-X6P | DP-X8P |
| Dead weight KG | 70KG | 90KG | 100KG |
|
Minimum dimension
|
0.85×0.75×0.3M | 1.5×1.15×03M | 1.5×1.15×0.3M |
|
Maximum dimension
|
1.2×0.9×0.3M | 1.8×1.0×0.3M | 2.5×1.0×0.3M |
| Suction cup size mm | (unified standard suction cup size, each equipment can be used generally) | ||
| Single suction cup bearing KG |
100kg (the actual test load can reach more than 180kg) |
||
| Rotation function | 360 ° manual rotation (special labor-saving device, safe and reliable, easy to operate) | ||
| reverse scan | 90 ° manual turning (humanized design, automatic balance, fast and labor-saving) | ||
| Voltage DC | DC12V(built in 2 extra long battery life) | ||
| Endurance | It can be used for 3-5 days for one charge, and two batteries can be used alternately | ||
| Extension bar MM | 500mm (single side length, special glass specification can be customized) | ||
| Control system | Wired remote control suction and discharge | ||
| Customizable | Note: it can be customized according to your specific process requirements, workpiece size and weight. | ||
| Weight standard |
Conventional glass weight = length × width × thickness × glass density 2.5 ÷ 1000 000 = glass weight 3660×2440×19×2.5÷1000 000=424KG |
||
|
safety factor
|
According to the European CE safety regulations on lifting equipment and the German accident prevention regulations uvv 18 and VBG 9a, the best safety factor of the vacuum sling is 2.0, for example, the single suction of fsrl280 suction cup is 3139n, divided by the safety factor of 2.0, the load is 1570n | ||
