Product Details:
|
| Production Name: | Aluminum Spacer Bending Machine | Max Spacer Size: | 2000mm*2000mm |
|---|---|---|---|
| Min.bending Size: | 250mm*150mm | Spacer Types: | Aluminum Space Or Warmedge Spacer |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Usage: | Insulating Glass Making, Aluminum Spacer Bar Bending, Bend Aluminum Spacer Bar Into Required Shape |
| Warranty: | 1 Year | Dimension: | 10500*2200*2600mm |
| Total Power: | 380V50Hz2.5KW3P | ||
| High Light: | 27A Al Spacer Bending Machine,PLC Al Spacer Bending Machine,PLC 27A aluminium arch bending machine |
||

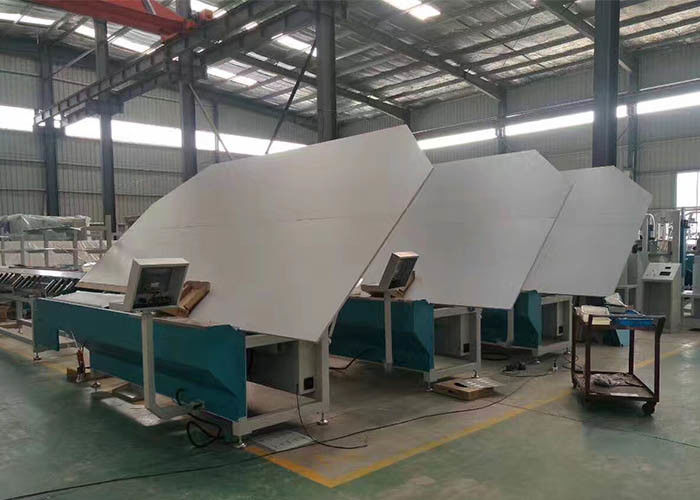

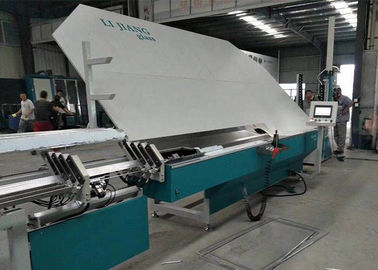

Aluminum spacer bending machine for Insulating double triple glass processing
Double glazing glass is made by 2pcs or more float glasses which filled with desiccant of Argon gas with Aluminum frame.Primary seal(butyl)between insulating glass and Aliminum frame, secondry seal(polysulfide or structure). the insulating glass will be effectively protect radiation when coated Low-E film.
Features of AluminumSpacer Bending Machine
• 4 or 12groups of spacer racks
• Siemens 1200 PLC control system with fast working speed
• Bend spacer frames continuously
• Aluminum spacers are available in sizes of 6A-27A
• Automatically avoid the pins while bending and cutting
• Automatically cut and feed aluminum spacers
• Different bending tools for different sizes of spacers
• Pause and Reset device for handling equipment failures
• Bend aluminum spacer, smooth stainless steel, warm spacer
• USB input function, read the excel format file directly
Details of Aluminum spacer bar bending machine
1.Adopt German siemens plc control system,touch screen interface,Stable performance
2.Four or Twelve different spacer size storage units can be choose
3. Aluminum spacers are available in different specifications and sizes
4.Heavy duty connectors ,convenience and safety for installation and debugging
5.Support continuous bending , it automatically avoid spacer -connection while bending and cutting
6.The special machine hand device is used to bend big spacer frame
7.USB input function ,it can read the excel data directly
8.Spare parts of all machine have ID code ,convenient for after-sale service
9.Automatic spacer bending machine can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (optional)
Optional functions
• Connect to ERP system
• Drill holes
• Printing code
• Printing label sticker
• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools
After sales service from LIJIANG GLASS for automatic aluminum spacer bending machine
Warranty : 1 year
Tachnical Data of Aluminum spacer bending machine
|
Max. bending size
|
2000mm*2000mm |
|
Min. bending size
|
250mm*150mm |
|
Aluminum spacer width
|
6A - 27A |
| Spacers racks | 4 Racks |
|
Spacer size error
|
±0.5mm |
|
Angle error
|
±1° |
|
Processing speed
|
< 25s (1000mm*1000mm) |
|
Air supply
|
≥0.65MPa |
| Voltage | 380V50Hz 3P |
| Total power | 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Related Product
Spacer trip cutting machine LJQJ 02
Main feature
• It is used for cutting aluminum strip
• Allowed to cut many spacers,keep high efficiency
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.55kw |
| Dimension | 5000*1050*415mm |
