Product Details:
|
| Name: | Butyl Extruder Machine | Aluminum Spacer Width: | 6A-27A |
|---|---|---|---|
| Coating Pressure: | 10-18mpa | Coating Temperature: | 110-140 ° |
| Total Power: | 5.7kw | Machine Size: | 2800*700*900mm |
| Coating Speed: | 0-47m/min | Butyl Plug Weight: | 7kg |
| Electricity Compoents: | Germany Simens | ||
| High Light: | 140C Hot Melt Butyl Machine,Insulating Glass Hot Melt Butyl Machine,140C industrial hot glue machine |
||
HOT MELT BUTYL MACHINE INSULATING GLASS MACHINE DOUBLE GLAZING GLASS MACHINE

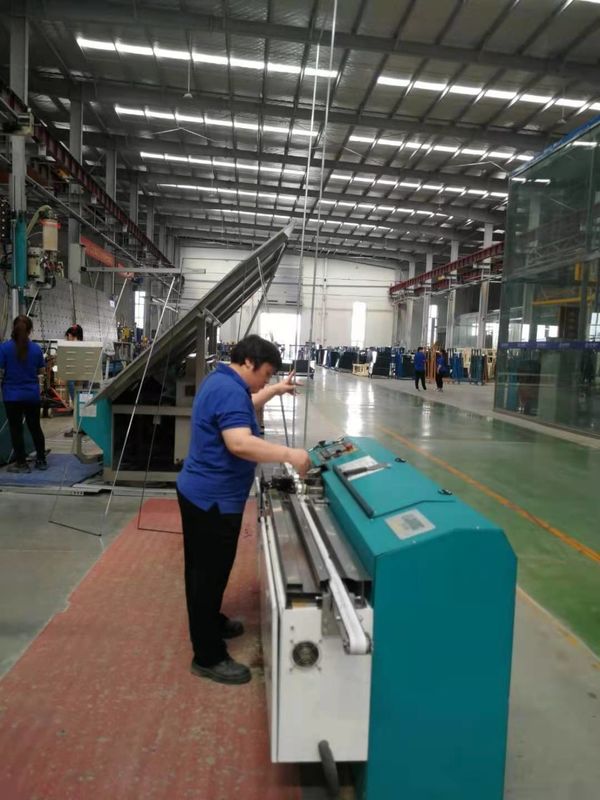

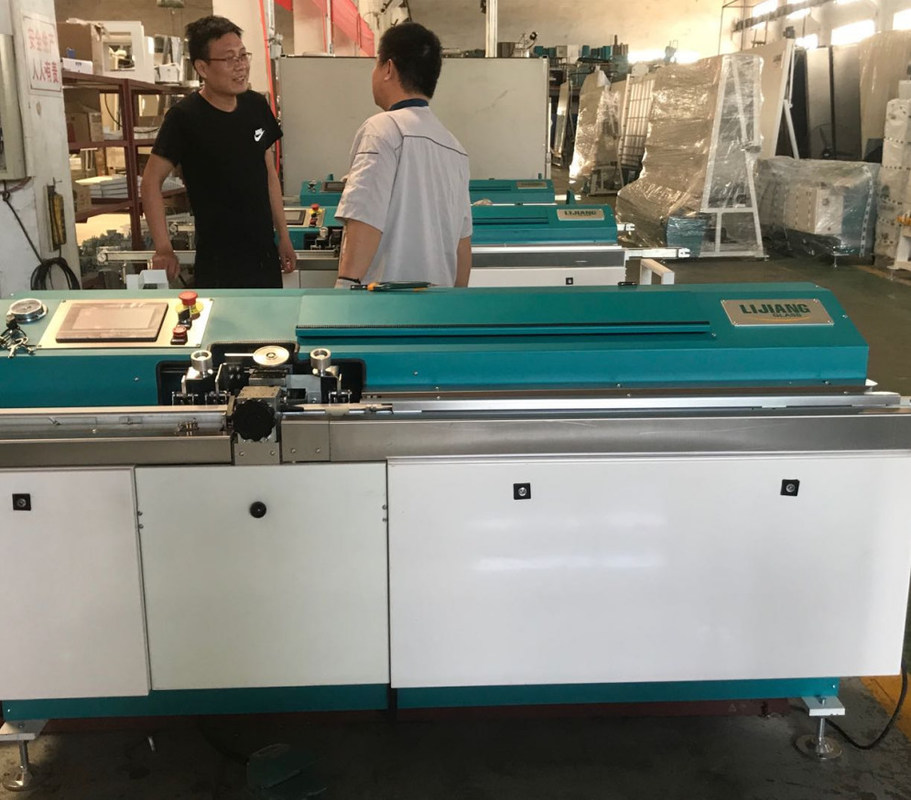

LJTB01 butyl extruder machine is used to apply hot melt butyl to the aluminum spacers of insulating glass evenly. The use of large electrical control panel makes the operation easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min. The squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The machine is energy-saving. The dispensing cylinder uses rotate supporting system and this makes the refill of butyl easier. The system can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.
Butyl extruder parameters
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
