Product Details:
|
| Name: | Butyl Extruder Machine | Aluminum Spacer Width: | 6A-27A |
|---|---|---|---|
| Coating Pressure: | 10-18mpa | Coating Temperature: | 110-140 ° |
| Total Power: | 5.7kw | Machine Size: | 2800*700*900mm |
| Coating Speed: | 0-47m/min | Butyl Plug Weight: | 7kg |
| Electricity Compoents: | Germany Simens | ||
| High Light: | 47m/Min Butyl Extruder Machine,47m/Min Hot Melt Butyl Machine,Silicone Sealant Butyl Extruder Machine |
||
HOT MELT BUTYL MACHINE 47M/MIN BUTYL EXTRUDER MACHINE BUTYL SILICONE SEALANT
Extrusion Coating Machine Insulating Glass Machine

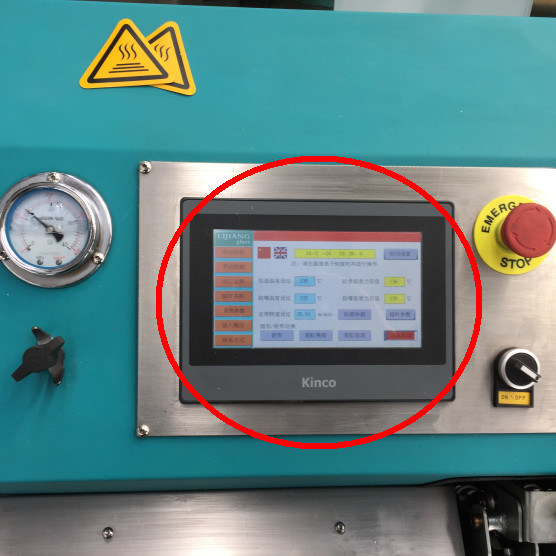

1. Touch-screen operation, simple and practical
2. Auto-measure the width of spacer, nozzle automatic positioning
3. Auto-centering and auto-clamping

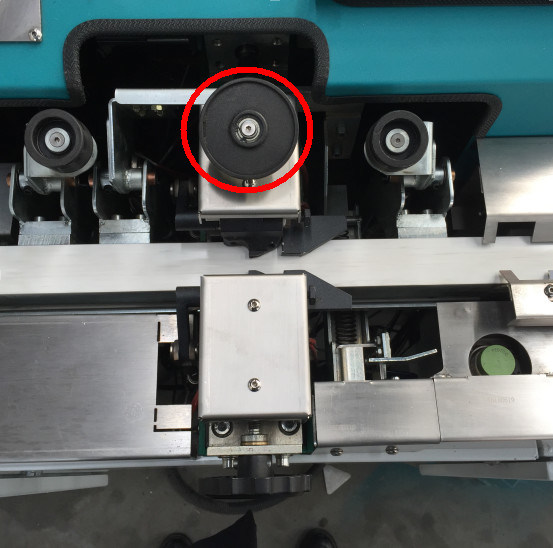

4. The bigger wheel help to coat the arc frame
5. Coating nuzzle is Teflon brand ,non-stick coating
6. The coating speed is up to 47m/min,saving materials up to 30％,( 5g/m)
7. The crossbeam height is easy to adjust,we can control the height of butyl
8. The special part controls both sides of nozzle opening and closing at the same time
9. Alarm device when use out of butyl and easy to load butyl
10. Pre-heading function,set a regular time before working time
11. Glue cylinder Adopt the upright structure, easy to change butyl.
12. Automatic filter function Automatically filter debris, keep spreading evenly.

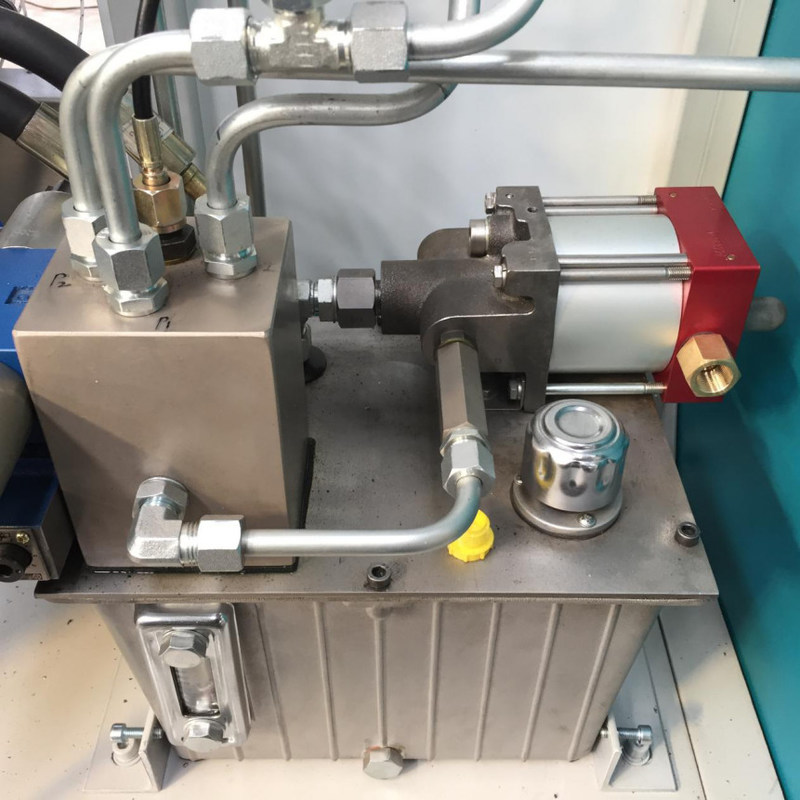

13. Hydralic and Pneumatic supercharging pump ,German MAXIMATOR brand
14. Pressure release valve German HAWE brand ,high pressure resistance ,keep the butyl well proportioned
15. Pneumatic component Taiwan Airtac
16. Japan OMROM Relay
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6-27A |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
² Main components
| Name | Brand |
| Pressure release Valve | German HAWE |

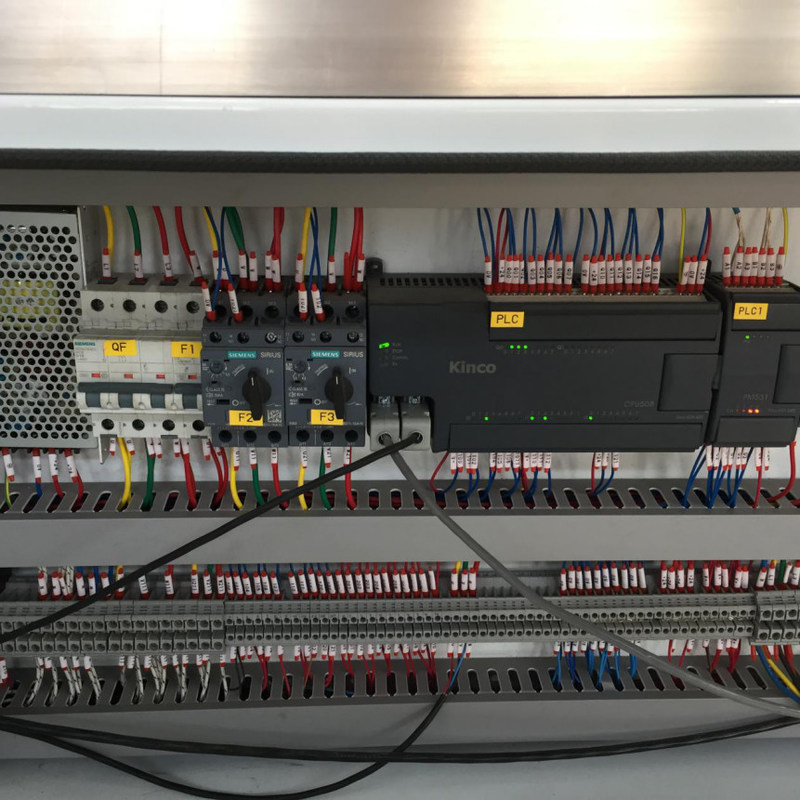

| Low voltage electrical apparatus | German SIEMENS |
| Hydraulic and pneumatic supercharging system | German MAXIMATOR |
| Quick exhaust valve/Vacuum generator | Japan SMC |
| Pneumatic components(cylinder/valve) | Taiwan ARTAC |
| Travel light | Japan OMRON |
| Relay | Japan OMRON |
| Optical fiber | Japan OMRON |
| PLC | KINCO |
| Frequency converter | KINCO |
