Product Details:
|
| Name: | Glass Washing And Drying Machine Horizontal Model | Advantage: | Max Size Can Be Customeized |
|---|---|---|---|
| Material: | Stailess Steel | ||
| High Light: | 400mm×400mm Horizontal Glass Washer And Dryer,2600mm Horizontal Glass Washer And Dryer,400mm×400mm flat glass washing machine |
||

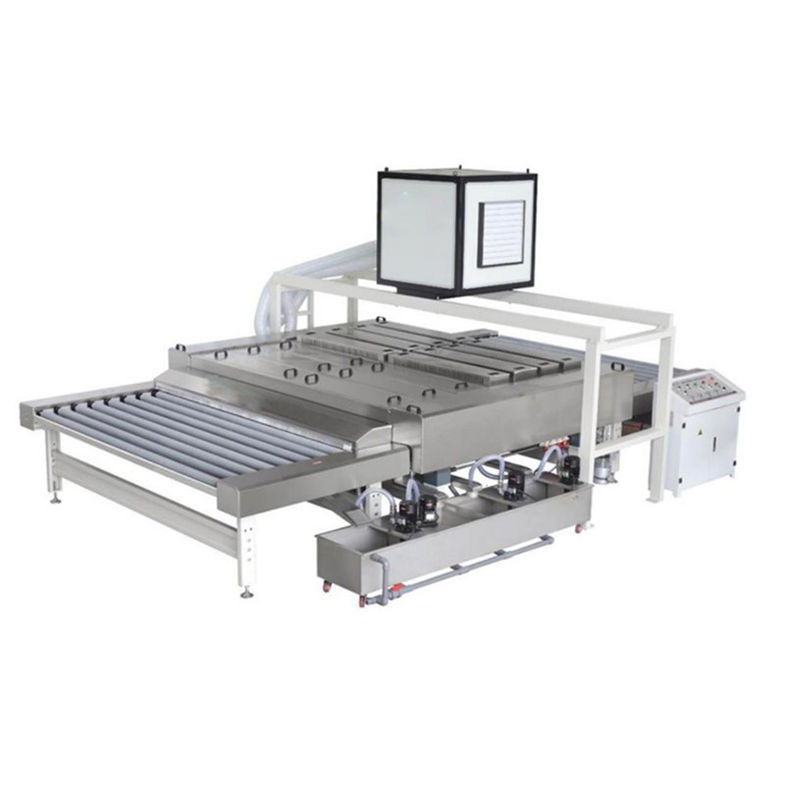

Horizontal Glass washing and drying machine processing size can be customized the max size can reach to 2600mm
Glass washing machine used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.
The machine for washing and also drying of glass products, performs automatic washing of products from two sides at the same time, via the upper and lower brushes. The equipment must perform the following operations:
- Glass loading (Automatic from the processing line);
- Glass washing (Automatic);
- Glass drying (Automatic);
- Unloading (Manual).
Pressure – 6 bar.
Pressure-4 bar.
Water tank details►
The washing part in contact with water is made of stainless steel

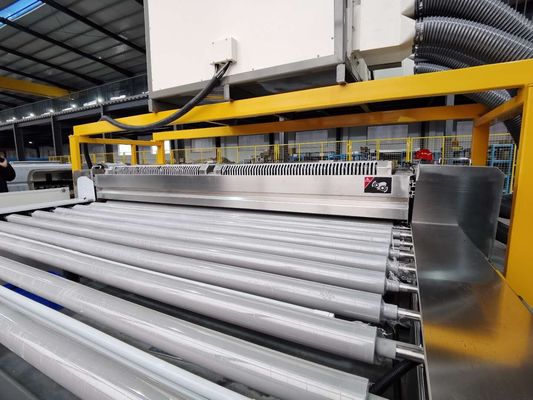

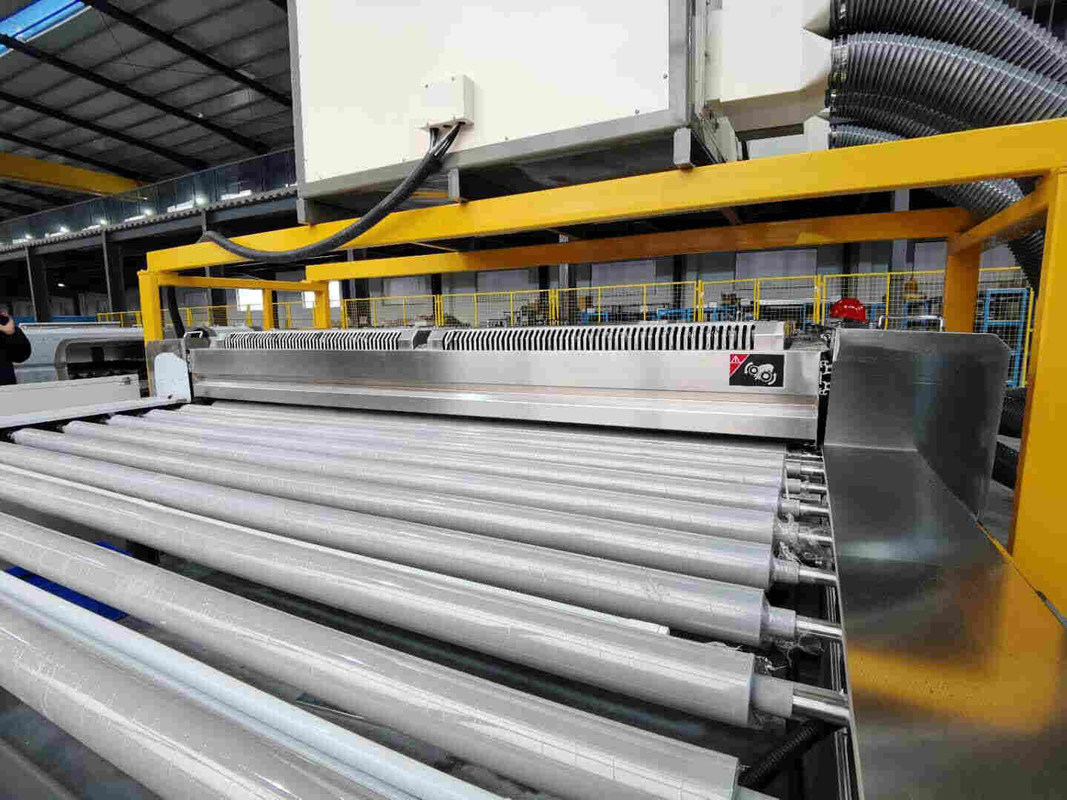

Air knives detail ►
Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing)
High quanlity profile detail►
Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency

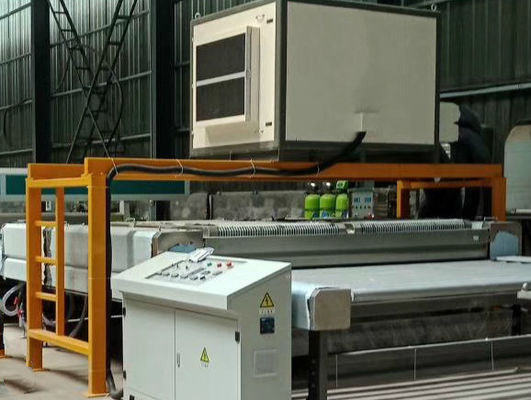

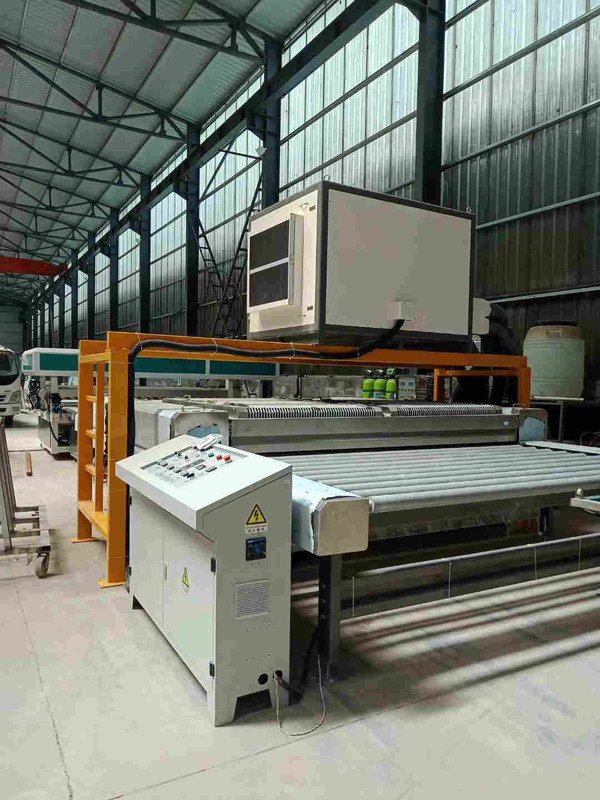

The fan detail►
The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,The whole fan box is installed in the upper part of the workshop, with the air filter screen on the side for easy inspection and cleaning
1. Maximum glass width: 2500mm (effective maximum: 2650mm)
2. Minimum glass specification: 400mm×400mm (limited to single row on left and right sides)
3. Glass thickness: 3mm-25mm (digital display)
4. Speed range: glass thickness within 3-25mm Vmax=1-12m/min
5. Main drive, brush speed regulation method: frequency control
6. Table height :900±25mm
| Maximum glass width | 2500mm (effective maximum: 2650mm) |
| Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
| Glass thickness | 3mm-25mm (digital display) |
| Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
| Main drive, brush speed regulation method | frequency control |
| Table height | 900±25mm |
| Total power | 42KW(water-bearing wind heating: 15KW) |
| Water source | self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer) |
| Power source | 380V 50Hz |
| Dimensions (length × width × height) | approximately 6260*4800*3100 |
| Weight | 3940kg |
Vacuum glass electric suction cup lifter KX4
Manual rotation: 360° edgewise, with locking at each quarter point.
Manual tilt: 90° between upright and flat, with automatic latching in upright position.
1. The vacuum glass lifter is for handling the glass sheet.
2. Glass lifter max. carrying capacity 200kg. 400kg. 600kg.800kg ( a safety factor 4.0 include).
3. The vacuum pump, valve, switch and some important spare parts we are import from oversea.
4. Stable performance, easy to maintain, efficient, safe, quick, easy.
5. The material of suction pad is NBR (oil resistance,skid resistance, corrosion resistance) , Be able to effectively and steel vacuum suction and produce vacuum.
6. The suction pad can be adjustable, can be turned off and open individually.
7. The vacuum lifter is equipped with a buzzer and warning light units, in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
8. The vacuum lifter is equipped with safety tank&Pressure switch warning, when the power is turned off in sudden, always can keep the work piece not falling down for 30 minutes.
9. The design of vacuum lifter by our company is passed to EU CE passed.It is CE identification product.
