Product Details:
|
| Name: | Glass Washing And Drying Machine Horizontal Model | Advantage: | Max Size Can Be Customeized |
|---|---|---|---|
| Material: | Stailess Steel | ||
| High Light: | Thickness 25mm Horizontal Glass Washing Machine,W2500mm Horizontal Glass Washing Machine,W2500mm Flat Glass Washer |
||

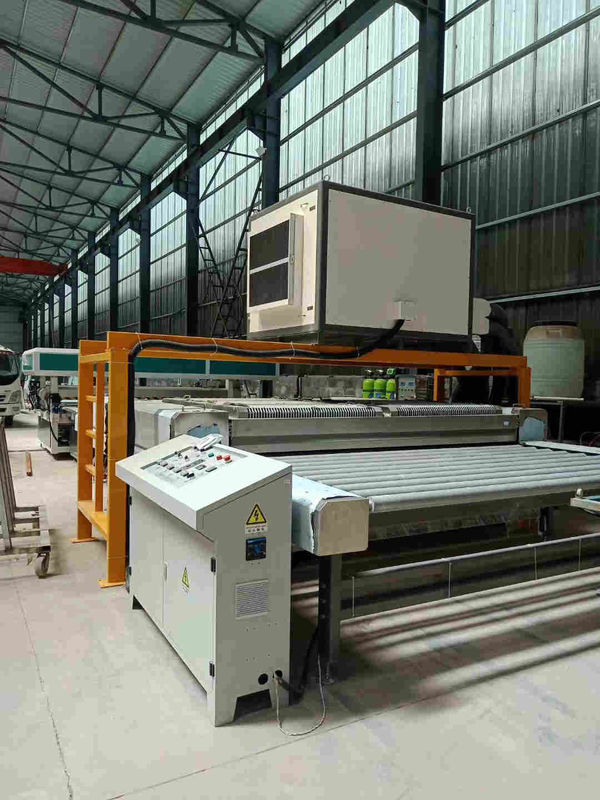

Horizontal Glass washing and drying machine processing size can be customized the max size can reach to 2600mm
The machine for washing and also drying of glass products, performs automatic washing of products from two sides at the same time, via the upper and lower brushes. The equipment must perform the following operations:
- Glass loading (Automatic from the processing line);
- Glass washing (Automatic);
- Glass drying (Automatic);
- Unloading (Manual).
Pressure – 6 bar.
Pressure-4 bar.

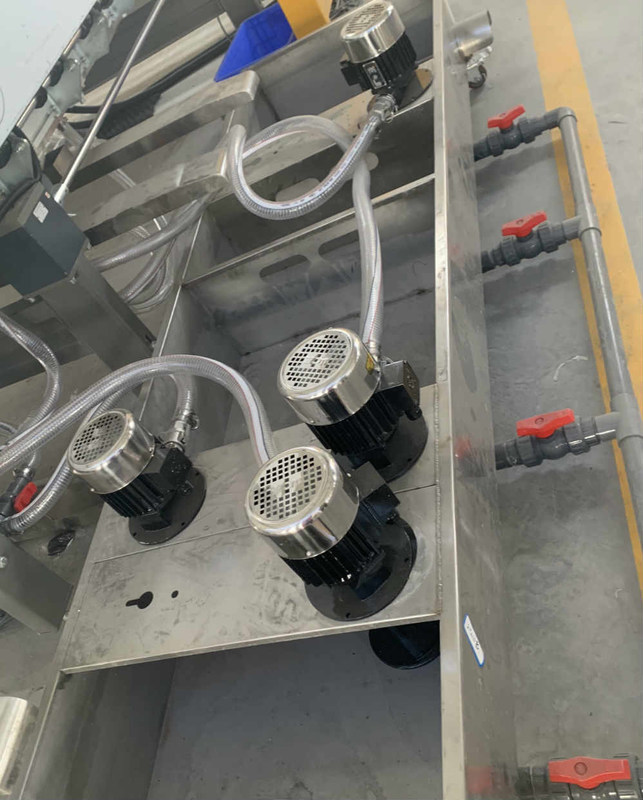

Water tank details►
The washing part in contact with water is made of stainless steel
Air knives detail ►
Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing)
High quanlity profile detail►
Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency
The fan detail►
The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,The whole fan box is installed in the upper part of the workshop, with the air filter screen on the side for easy inspection and cleaning
1. Maximum glass width: 2500mm (effective maximum: 2650mm)
2. Minimum glass specification: 400mm×400mm (limited to single row on left and right sides)
3. Glass thickness: 3mm-25mm (digital display)
4. Speed range: glass thickness within 3-25mm Vmax=1-12m/min
5. Main drive, brush speed regulation method: frequency control
6. Table height :900±25mm
| Maximum glass width | 2500mm (effective maximum: 2650mm) |
| Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
| Glass thickness | 3mm-25mm (digital display) |
| Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
| Main drive, brush speed regulation method | frequency control |
| Table height | 900±25mm |
| Total power | 42KW(water-bearing wind heating: 15KW) |
| Water source | self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer) |
| Power source | 380V 50Hz |
| Dimensions (length × width × height) | approximately 6260*4800*3100 |
| Weight | 3940kg |

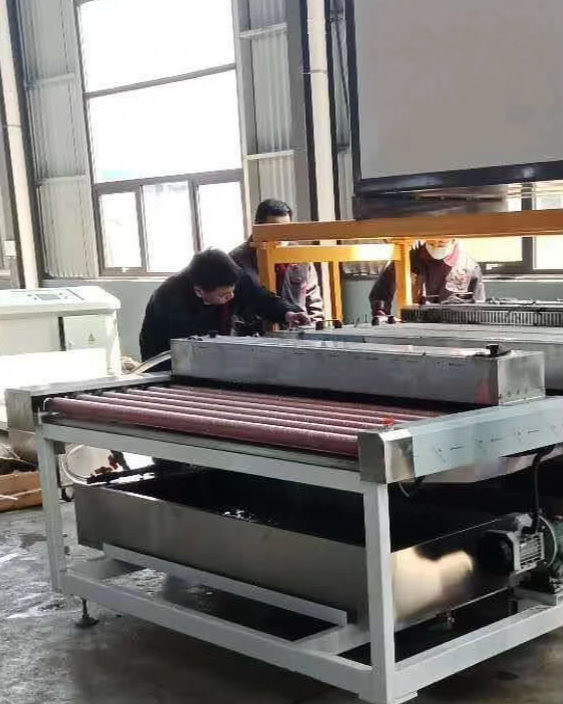

Glass washing machine used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.
| Main drive motor | Zhejiang province |
| Brush motor | Zhejiang province |
| High pressure air blower | Guangdong province |
| The water pump | Shanqing |
| brush | Anhui province |
| Rubber roller | Guangdong province |
| Frequency converter | VEICHI/Rexroth |
| Electric parts | Schneider |
