Product Details:
|
| Production Name: | Butyl Extruder Machine | Glue Barrel: | 7 Kg |
|---|---|---|---|
| Coating Speed: | 47m/min | Heating Time: | 5 - 15 Mins |
| Machine Control: | PLC And Servo | Warranty: | 1 Year |
| Voltage: | 380V 50Hz 3P | Control: | PLC Control |
| High Light: | 47m/Min Butyl Extruder Machine,Insulting Glass Butyl Extruder Machine,47m/Min hot melt butyl extruder |
||

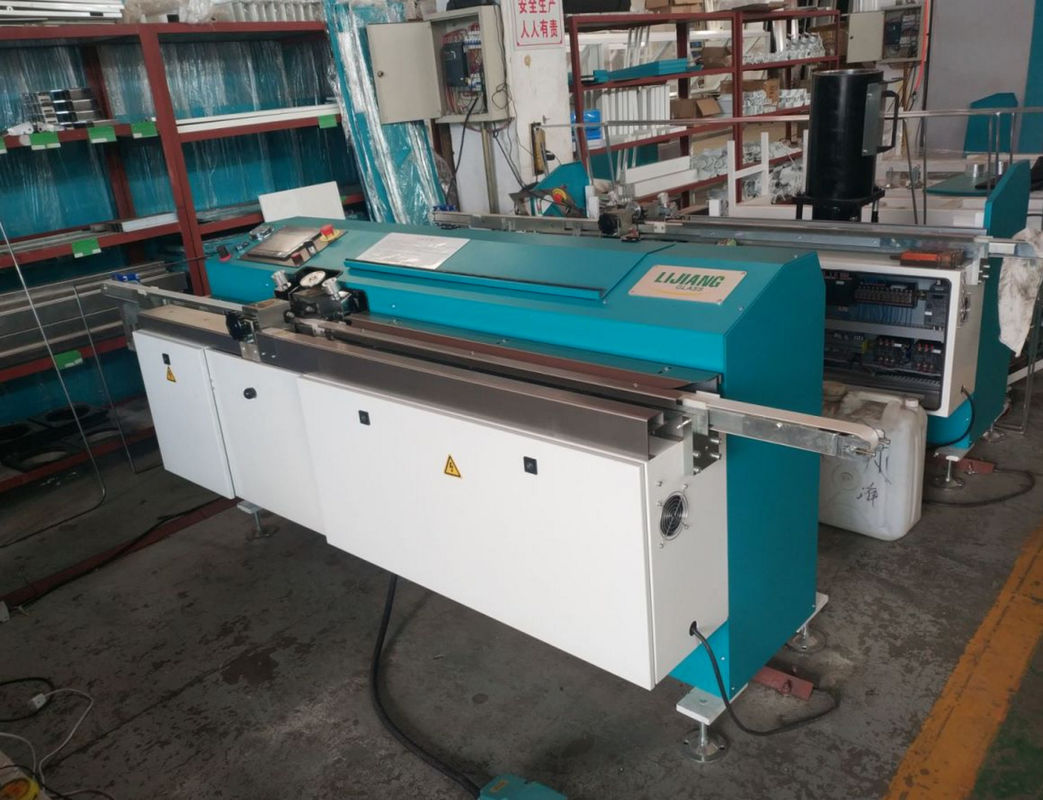

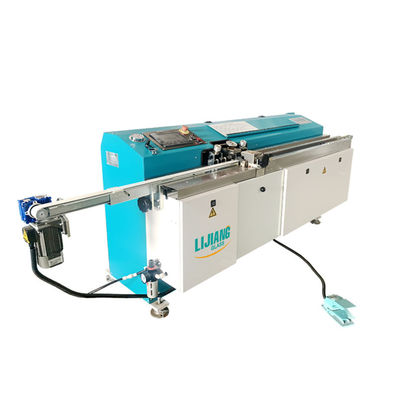

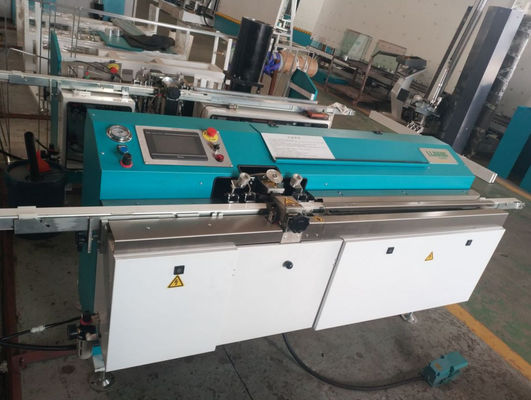

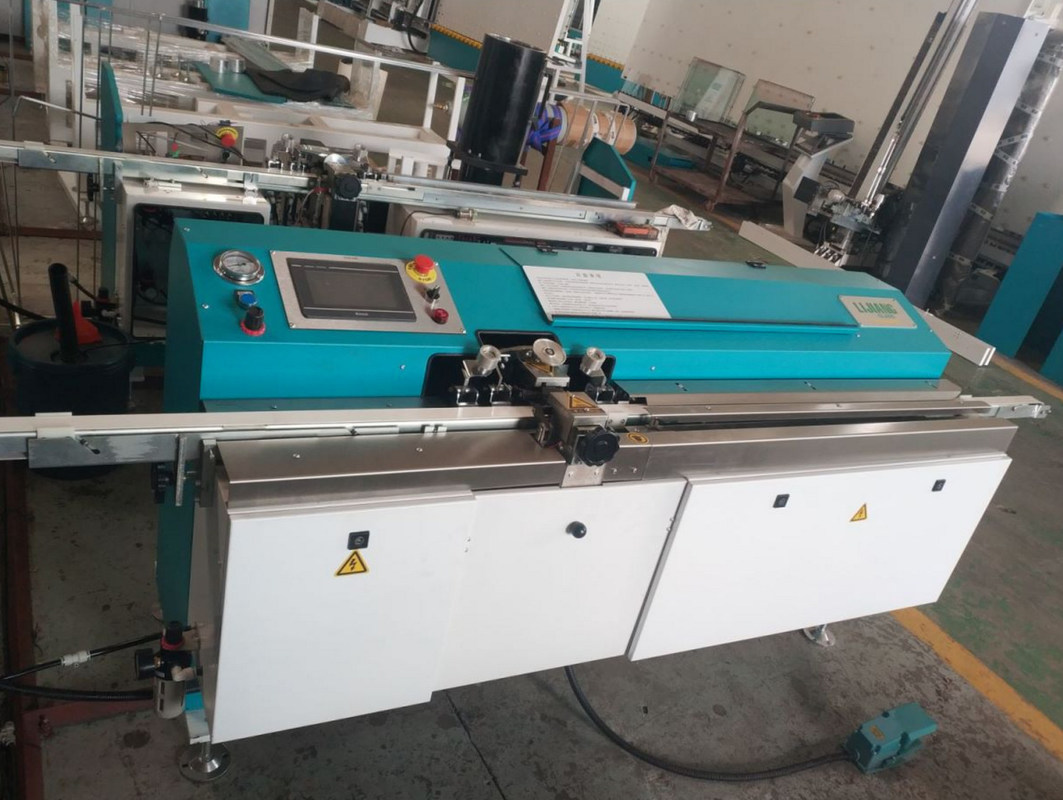

Super Fast Speed Butyl Extruder Machine With 7 KG Glue Barrel
The butyl extruder machine main performance characteristics of the insulting glass butyl glue coater :
Main feature :

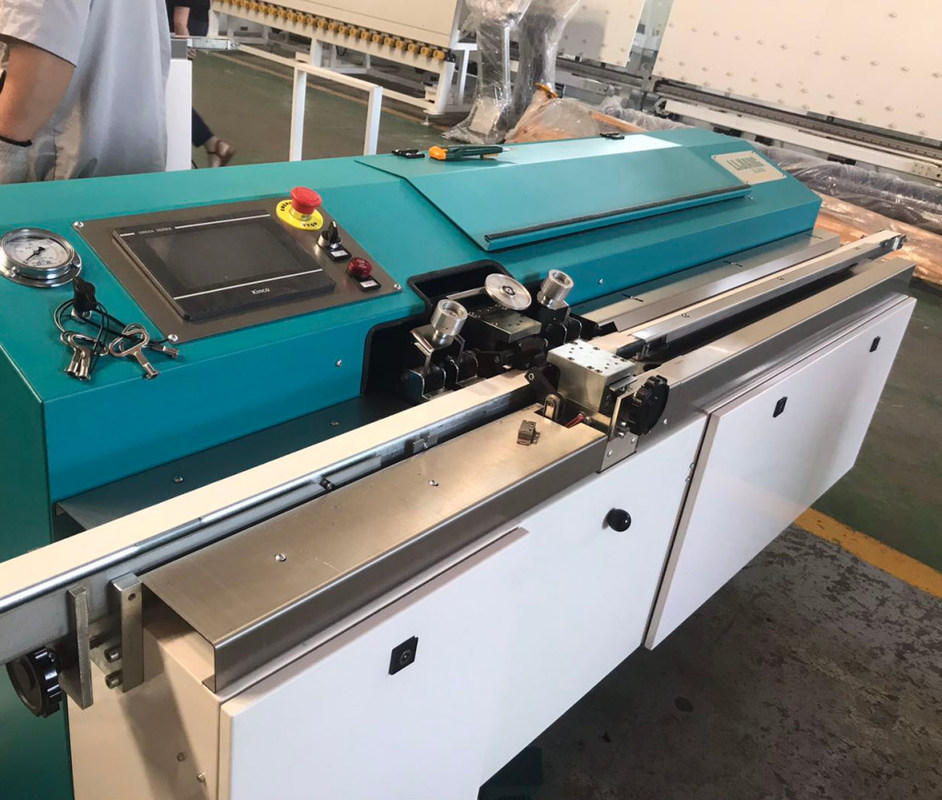

• PLC control system, KINCO touch screen interface
• Flood control system using German brand
• Reminds us of the addition of an alarm system, butyl rubber
• The sensor can automatically measure the width of the frame and the nozzle distance is adjustable
• Exhaust function
• Short preheating time improves work efficiency
• Coating shape frame and roller device can be freely selected
• High speed coating speed, up to 47m / min
• Stable pressure and uniform coating
• Adhesive savings. The amount of adhesive on both sides can reach 4 g / m
1. Butyl adhesive coating machine is the first equipment required for double glazing production. A semi-active strip coater, a manually held aluminum distance frame for operation, the aluminum distance frame is placed on the conveyor belt. The manual aluminum distance frame is operated by a conveyor belt.
When the aluminum distance frame passes through the sensor, the transmission roller and glue valve are activated according to the cylinder operation, press wheel press, and aluminum feed valve press setting procedure. Perform a distance frame. When the aluminum distance frame reaches the rubber tapping head, apply the adhesive evenly to the aluminum distance frame. As the distance frame approaches the press wheel on the opposite side of the distance frame, the rollers are lifted and the rubber valve actively stops adhesive tapping as it leaves the rubber tapping head.
Technical data :
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Electrical parameters :
| Name | Original | Brand |
| PLC | China | KINCO |
| Valve | German | HAWE |
| Low voltage electrical apparatus | German | SIEMENS |
| Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
| Frequency converter | China | KINCO |
| Pneumatic components | Taiwan | ARTAC |
| Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
| Travel light | Japan | OMRON |
| Optical fiber | Japan | OMRON |
Other type of automatic butyl extruder machine LJTB02
Introduction :
The fully automatic butyl extruder can realize fully automatic production alongside the insulating glass assembly line, eliminating the need for the entire coating process to be done manually. This automatic butyl extruder consists of a press wheel system (linear press wheel, arc press wheel). Centering wheel, glue nozzle unit, extrusion unit, transmission unit, rotation mechanism, support mechanism, frame unit, pneumatic system, hydraulic system, control system.
Machine features:
(1) If there is an alarm device and there is no adhesive, an alarm will be issued automatically (a prompt will be displayed on the touch screen).
(2) The timing heating function allows the operator to set the start-up time of the equipment in advance, and the equipment automatically starts system heating before formal work.
(3) The distance between the front and rear adhesive nozzles is automatically adjusted according to the width of the aluminum spacer.
(4) The transmission motor is controlled by a servo motor, and the transmission speed can reach up to 50m / min.
(5) A large frame support mechanism that prevents the large aluminum frame from shaking significantly at corners and deforming the frame.
(6) Simple, stable and reliable operation, accurate coating effect, fast coating speed, high production efficiency.
