Product Details:
|
| Name: | Glass Washing Machine Technical Parameters | Maximum Glass Width: | 2500mm (effective Maximum: 2650mm) |
|---|---|---|---|
| Minimum Glass Specification: | 400mm×400mm (limited To Single Row On Left And Right Sides) | Glass Thickness: | 3mm-25mm (digital Display) |
| Speed Range: | Glass Thickness Within 3-25mm Vmax=1-12m/min | ||
| High Light: | Width 2500mm Flat Glass Washing Machine,Feeding Section Flat Glass Washing Machine,Width 2500mm horizontal glass washer |
||

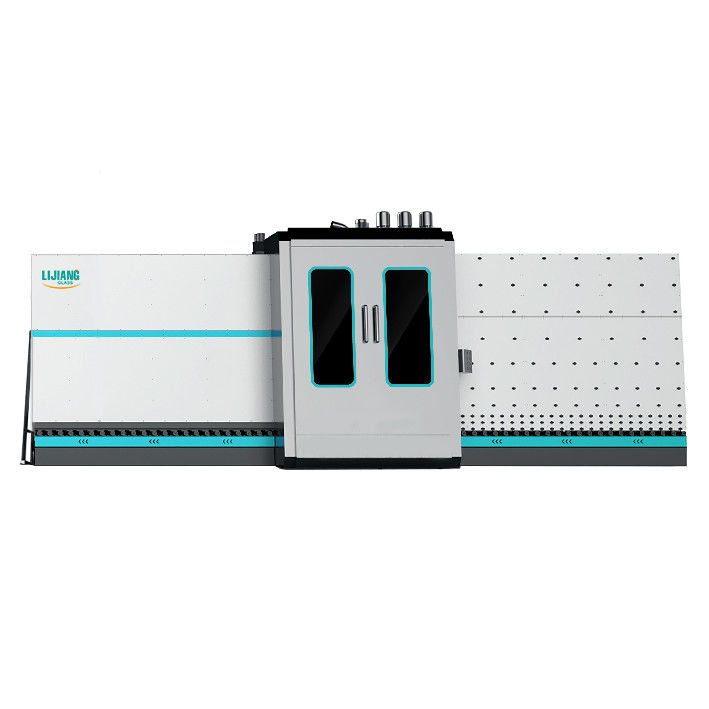

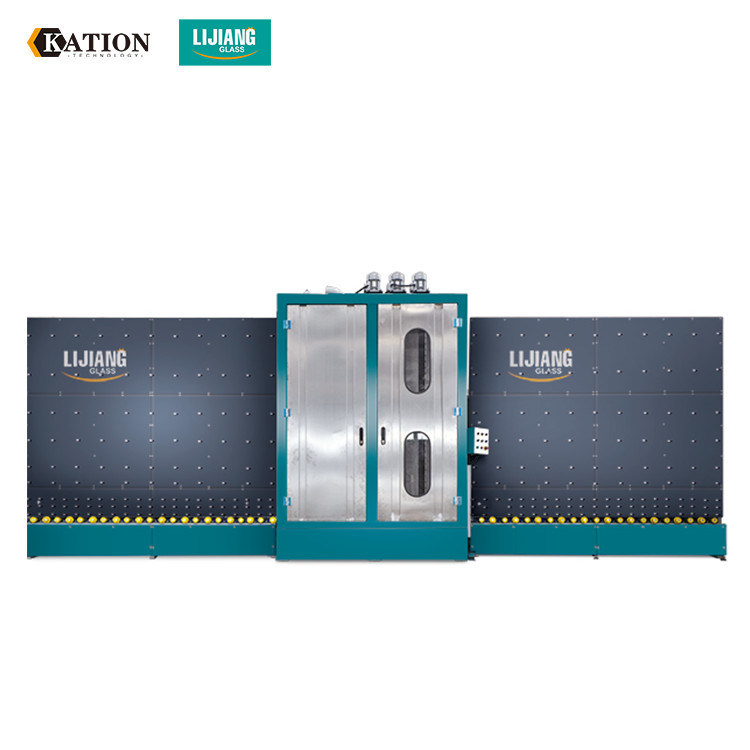

Glass washing machine technical parameters CP-2500A (12 m/min)
1, USES of glass cleaning machine
glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces of ordinary
plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment
and outgoing segment.
Aluminum alloy assembled structure, no scrap concept, permanent use,
high efficiency, energy saving 70% efficiency；,
2. The rest of the sheet metal parts are sprayed with advanced mechanicalpaint or powder；
3. The rubber roller is made of vulcanized rubber with stainless steel shaft；
4. The washing part in contact with water is made of stainless steel；
5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain；

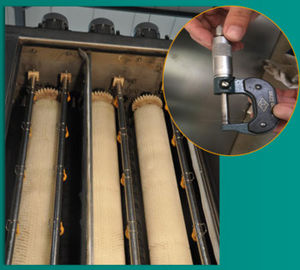

6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass
and sunshine coated glass can be washed without damaging the coated surface)；
7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying
effect, with heating system(with temperature control device, optional opening and closing)；
8. The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,
The whole fan box is installed in the upper part of the workshop, with the air filter screen on the side for
easyinspection and cleaning；
| Maximum glass width | 2500mm (effective maximum: 2650mm) |
| Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
| Glass thickness | 3mm-25mm (digital display) |
| Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
|
Main drive, brush speed regulation method |
frequency control |
| Table height | 900±25mm |
| Total power | 42KW(water-bearing wind heating: 15KW) |
| Water source | self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer) |
| Power source | 380V 50Hz |
| Dimensions (length × width × height) | approximately 6260*4800*3100 |
| Weight | 3940kg |
