Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine

Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine
Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine

Large Image :  Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJZW2020A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: 20GP container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine

Description
Name: Automatic Bendable Aluminum Spacers Machine Max Bending Size: 2000mm*2000mm
Spacer Width: 6mm - 27mm Min.bending Size: 250mm*200mm
High Light:

2000mm*2000mm Spacer Bar Bending Machine

,

width 27mm Spacer Bar Bending Machine

,

2000mm*2000mm aluminum pipe bending machine

Automatic bendable aluminum spacers machine Spacer Bar Bending Machine

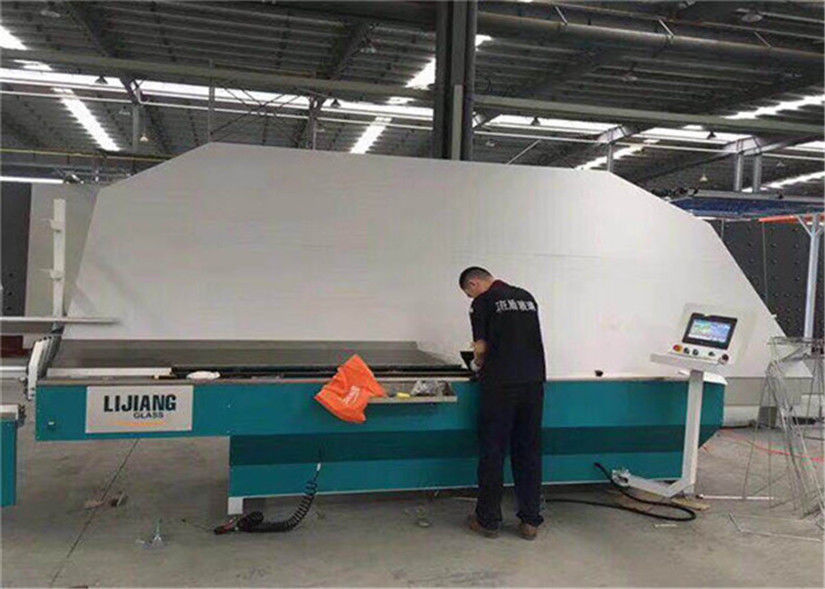

Overview of  Automatic bendable aluminum spacers machine
Automatic bendable aluminum spacers machine is used to make the different shape and different sizes of frames for pressing inside the Insulated glass by automatically with PLC control. Aluminum bending machine can bend normal aluminum spacers , stainless steel bars (SS) and warm edge spacer bars (plastic bars) by different bending tools. Aluminum spacer width can be from 6mm - 27mm.Spacer bending machine can bend for 8 different shapes, such as circle.





Main features of Automatic bendable aluminum spacers machine




1.  The CNC bending angle control system is adopted, with an adjustable accuracy of 0.1 °.
2. In addition to start stop operation, all operations are completed on the touch screen, and the mobile operation platform is available. Chinese / English or other languages operation interface, easy to operate, natural, easy to understand.
3.There are four automatic storage tanks, which can store 4-6m aluminum strip materials of four specifications.
4.It can set 4 specifications and 32 sizes (8 for each specification) of the original glass sheet size data. The bending machine automatically calculates the aluminum frame data according to each size for sorting, continuous processing, greatly improving efficiency and speed.
5.The CNC servo feeding system is adopted, and the adjustable precision of aluminum frame size is 0.1M m/m
6.There is no tailing design, except for cutting loss, zero head processing can be realized.

7. It has the function of high-speed automatic continuous cutting of aluminum strip.

8. Spacer bending speed shall be adjusted automatically according to the size of aluminum frame to avoid deformation of large frame and ensure high-speed and continuous small frame.

9. Aluminum spacer bar is automatically connected, and the aluminum strip joint is designed with intelligent avoidance (to avoid bending or cutting to the joint part).
Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine 0
Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine 1

Optional functions :
1. Printing label with 3 sizes one the paper sticker
Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine 2


2. With ERP function

3.Printing logo and data on spacers with ink.
Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine 3

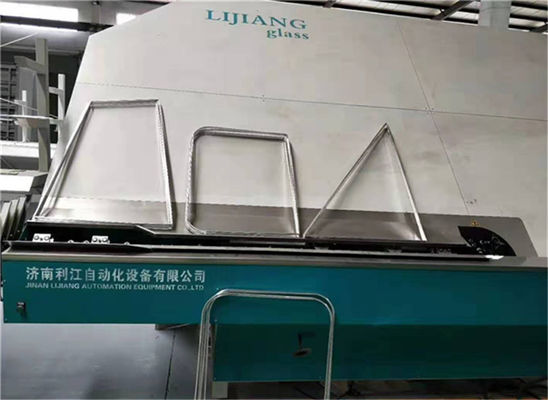

4. Bending different shapes
 Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine 4

Technical data of Aluminum spacer bending machine

Max.bending size 2000mm*2000mm
Min.bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm

Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine 5

Related Product

Aluminum frame transfer machine LJSKJ02

Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine 6



Main feature

  • Spacer frame transport
  • Easy operating, simple and flexible

Technical data



Power supply 380V 50Hz
Total power 0.18kw
Dimension 2520*3012*3000mm

Spacer trip cutting machine

Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine 7

Main feature

• Spacer cutting machine is used for cutting aluminum strip

• Allowed to cut many spacers,keep high efficiency

Technical data

Power supply 380V 50Hz
Total power 0.55kw
Dimension 5000*1050*415mm






Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine 8Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine 9
Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine 10Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine 11Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine 12
Bendable Aluminum 2000mm*2000mm Spacer Bar Bending Machine 13
