Product Details:
|
| Name: | Industrial Vacuum Glass Lifter | Rotation: | Manual360° |
|---|---|---|---|
| Max Lifting Weight: | 800KG | Advantage: | With Lifting Sucker |
| Turn Over: | Manual90° | ||
| High Light: | 360° Glass Lifting Crane,800KG Glass Lifting Crane,360° glass vacuum lifter |
||

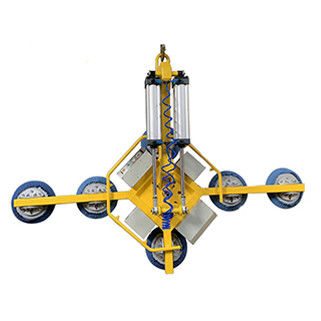

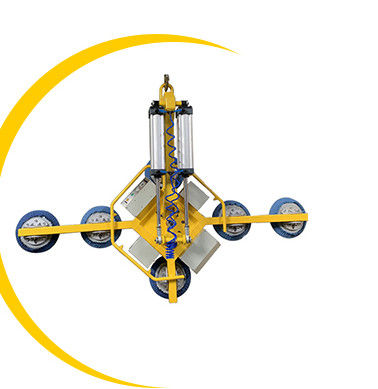

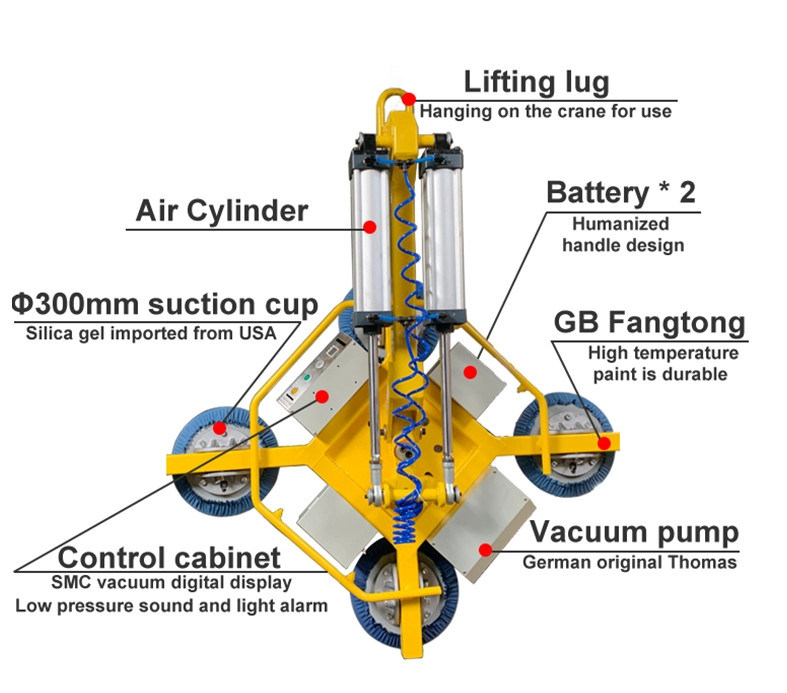

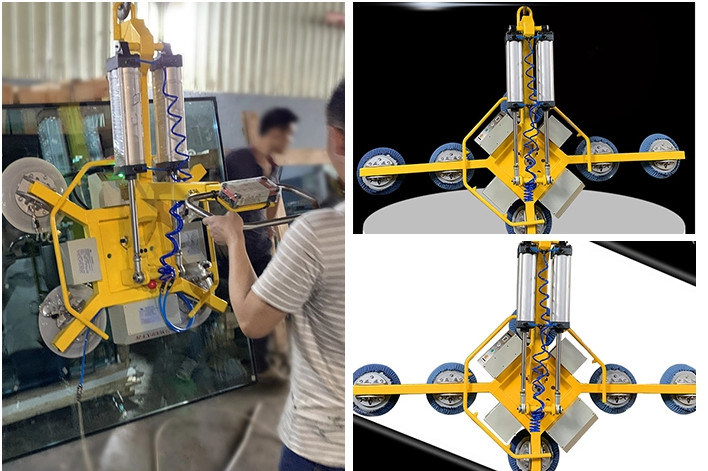

Industrial vacuum glass lifter glass crane for glass lifting
Features of glass crane
1. Stable performance, easy to maintain, efficient, safe, fast and easy.
2. Maximum glass lifter. Capacity 200 kg. 400 kg. 600kg.800kg (including safety factor 4.0).
3. Vacuum pumps, valves, switches, and some important spare parts imported from abroad.
4. The material of the suction pad is NBR (oil resistance, slip resistance, corrosion resistance), which enables effective vacuum suction and vacuum generation made of steel.
5. The vacuum glass lifter is for handling glass plates.
6. The suction pads are adjustable and can be individually turned off and opened.
7. Our vacuum lifter design will be passed to EU CE passed. CE identification product.
8. The vacuum lifter is equipped with a buzzer and warning light unit, which immediately turns off the optical and acoustic signals in the event of a power outage or vacuum leak, alerting the operator to perform an emergency operation.
9. The vacuum lifter is equipped with a safety tank and pressure switch warning to prevent the workpiece from falling for 30 minutes at all times if the power is suddenly turned off.
Manual tilt: 90° between upright and flat, with automatic latching in upright position.
Manual rotation: 360° edgewise, with locking at each quarter point.
Application of glass crane
- Loading and Unloading glass sheet on glass cutting table,
- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Instaling car windscreen.
Butyl Extruder Machine LJTB 01
Main feature of butyl extruder machine
• PLC control system, touch screen interface
• Automatically identify the width of the aluminum bar and automatically adjust the adhesive nuzzle
• High-speed preheating, improved work efficiency
• With preheating function
• An important part of a hydraulic system that uses components imported from Germany to evenly fill the plastic
• Exhaust inflatable feature improves sealing quality and saves plastic time
• Rapid coating speed, up to 47m / min
• Save the amount of glue
Technical data of butyl extruder machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
