Product Details:
|
| Certification: | CE | Production Name: | Double Glass Molecular Sieve Filling Machine |
|---|---|---|---|
| Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm | Filling Aluminum Frame's Minimal Size: | 300mm*250mm |
| Aluminum Specifications: | 6-27A | Faction: | Automatically Drilling,filling And Sealing |
| Application: | Insulating Glass Making | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Molecular Sieve Diameter Needed: | 0.5- 0.9 Mm | Optional: | Big Barrel |
| High Light: | Molecular Sieve Desiccant Filling Machine,300mm*250mm Desiccant Filling Machine,Molecular Sieve glass filling machine |
||

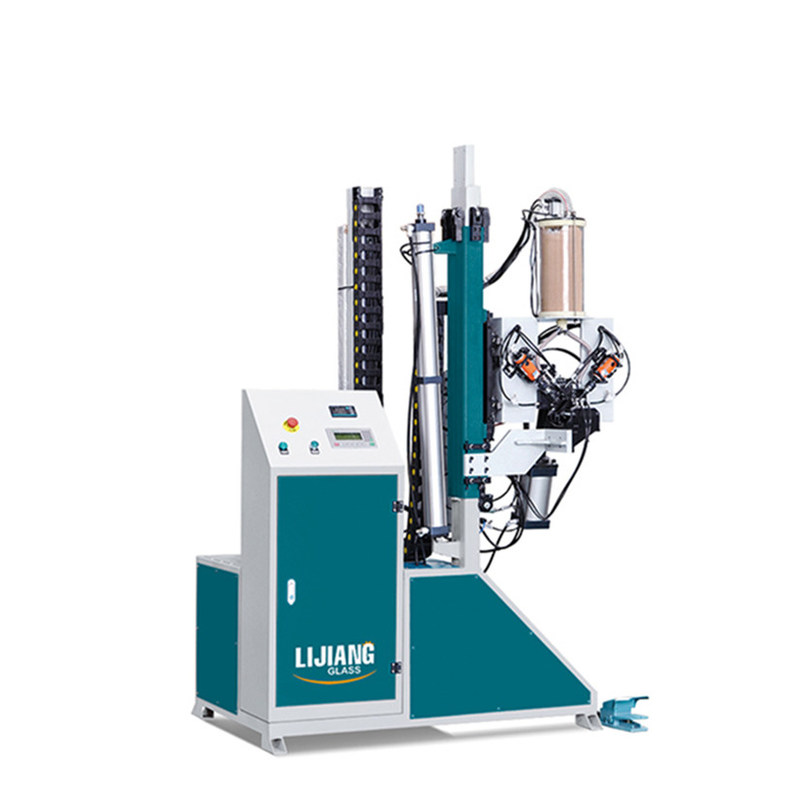

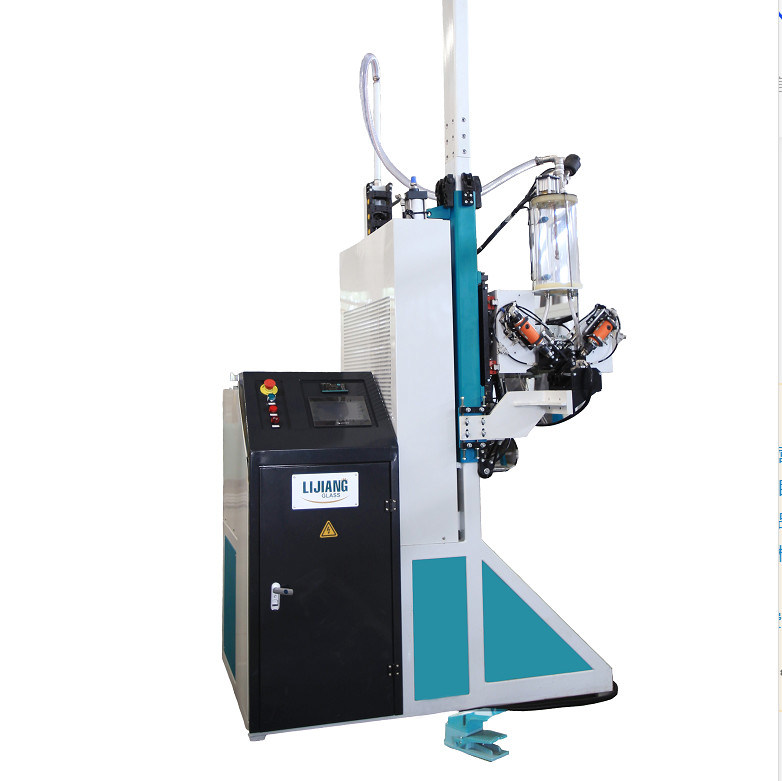

Double glass molecular sieve filling machine Adopting Siemens PLC servo control system with stable performance, glass size, adhesion depth, adhesion speed can be automatically measured by linear adjustment, glass is coated with silicone, glass corners are air bubbles There is no glass and the surface is smooth.
Features of Double Glass Molecular Sieve Filling Machine
•Adopt Siemens PLC control system automatic desiccant filling machine
Product overview of Double Glass Molecular Sieve Filling Machine
1.Auto drilling, filling and sealing function,Molecular sieve can be 0.5 -0.9mm or 1.0 -1.5mm sizes
2.Electrical component are all Germany Brand-Siemens.
•Adopt Siemens PLC control system automatic desiccant filling machine
3.Desiccant filling machine height can be adjusted according to the size of spacer frame
4.Desiccant automatically loading from the Materials bucket.
5.Molecular sieve filling machine have Protection device for machine head.
6.All the electrical wires have the ID number,it can match with specification , So it will be very easy for the further communication in the after sales service .
Technical parameter of Automatic Desiccant filling machine
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
Related products
Butyl Extruder Machine LJTB 03
Main feature
• Imported pneumatic and hydraulic supercharging system
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• PLC control system, touch screen interface
• Frequency control system
• Arc frame coating structure
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A-27A |
| Speed | 0-40m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW,50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| weight | 650kg |
