Product Details:
|
| Name: | Industrial Vacuum Glass Lifter | Rotation: | Manual360° |
|---|---|---|---|
| Max Lifting Weight: | 800KG | Advantage: | With Lifting Sucker |
| Turn Over: | Manual90° | ||
| High Light: | 800kg Vacuum Hoist Lifting Systems,600kg Vacuum Hoist Lifting Systems,600kg vacuum glass lifter |
||

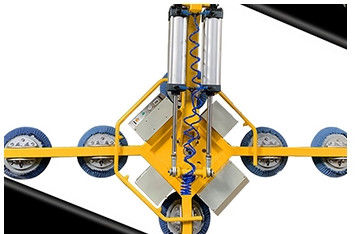

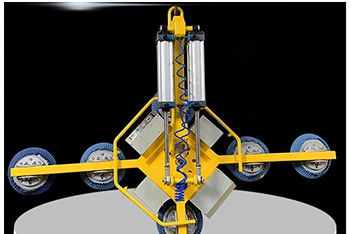

Industrial vacuum glass lifter glass crane for glass lifting
Features of glass crane
1. Stable performance, easy to maintain, efficient, safe, quick, easy.
2. Glass lifter max. carrying capacity 200kg. 400kg. 600kg.800kg ( a safety factor 4.0 include).
3. The vacuum pump, valve, switch and some important spare parts we are import from oversea.
4. The material of suction pad is NBR (oil resistance,skid resistance, corrosion resistance) , Be able to effectively and steel vacuum suction and produce vacuum.

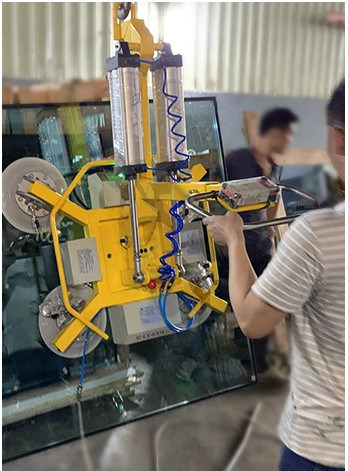

5. The vacuum glass lifter is for handling the glass sheet.
6. The suction pad can be adjustable, can be turned off and open individually.
7. The design of vacuum lifter by our company is passed to EU CE passed.It is CE identification product.
8. The vacuum lifter is equipped with a buzzer and warning light units, in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
9. The vacuum lifter is equipped with safety tank&Pressure switch warning, when the power is turned off in sudden, always can keep the work piece not falling down for 30 minutes.
Manual tilt: 90° between upright and flat, with automatic latching in upright position.
Manual rotation: 360° edgewise, with locking at each quarter point.
Application of glass crane
- Loading and Unloading glass sheet on glass cutting table,
- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Instaling car windscreen.
Butyl Extruder Machine LJTB 01
Main feature of butyl extruder machine
• PLC control system, touch screen interface
• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust
• Fast preheat, improve work efficiency
• with preheating function
• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
• With exhaust inflatable function, improve the quality of sealing and save time for plastic
• Quickly coating speed,can up to 47m/min
• Saving the amount of glue
Technical data of butyl extruder machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
