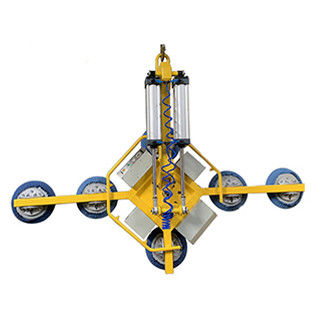

Remote Control Suction Pad 8PCS Glass Lifting Suckers

Remote Control Suction Pad 8PCS Glass Lifting Suckers
Remote Control Suction Pad 8PCS Glass Lifting Suckers Remote Control Suction Pad 8PCS Glass Lifting Suckers

Large Image :  Remote Control Suction Pad 8PCS Glass Lifting Suckers

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: KX4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 10days
Payment Terms: L/C, T/T
Supply Ability: 20set/month

Remote Control Suction Pad 8PCS Glass Lifting Suckers

Description
Name: Glass Vacuum Suckers Lifter Feature: With Lifting Sucker
Max Loading Size: 6000*2000*20mm Suction Pad Qty: 8PCS
Max Lifting: 800KG
High Light:

Suction Pad 8PCS Glass Lifting Suckers

,

Remote Control Glass Lifting Suckers

,

Suction Pad 8PCS glass lifting machine

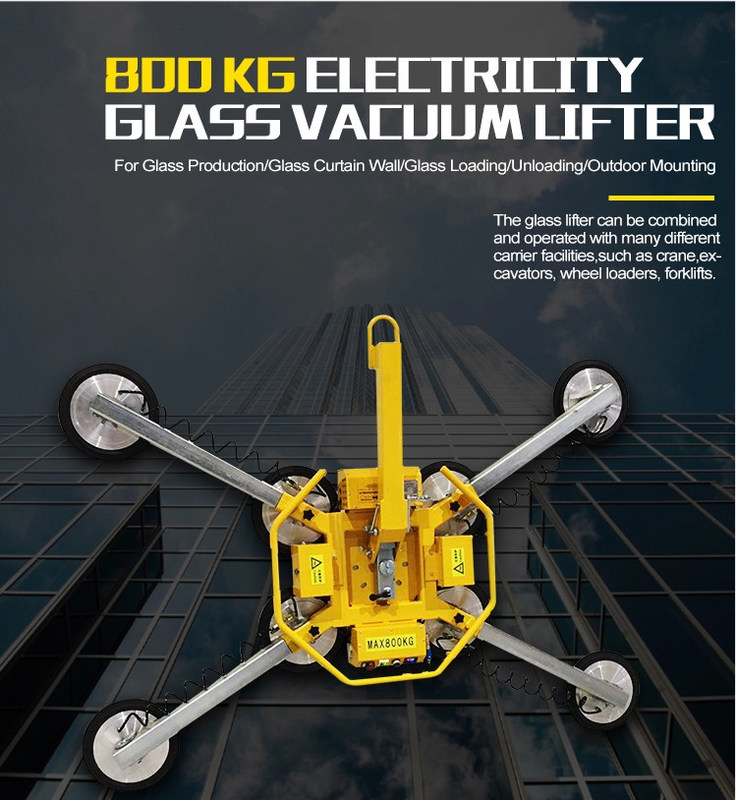

Glass vacuum suckers lifter with Remote Control for glass lifting​





Manual rotation: 360° edgewise, with locking at each quarter point.

Manual tilt: 90° between upright and flat, with automatic latching in upright position.

Technical parameters of Glass vacuum suckers lifter



Mode
KX4
KX5
KX6
Cap
400KG
500KG
600KG
Suction Pad Dia
300mm
300mm
300mm
Suction Pad Qty
4PCS
6PCS
8PCS
Dimension(L*W*H)
900*730*240mm
1800*1190*240mm
1800*1190*240mm
Rotation
Manual360°
Manual360°
Manual360°
Turn over
Manual90°
Manual90°
Manual90°
Voltage
DC12V
DC12V
DC12V
Charging Voltage
110V/220V
110V/220V
110V/220V
Net Weight
110KG
110KG
110KG
Package Size
950*950*400mm
950*950*400mm
950*950*400mm
Cross Weight
130KG
140KG
150KG
Max Loading Size
4000*2000*20mm
5000*2000*20mm
6000*2000*20mm
NOTE:
Considering the effect of plate span and gravity for reference only.



Features of glass lifting equipment



1. The vacuum pump, valve, switch and some important spare parts we are import from oversea.

2. Stable performance, easy to maintain, efficient, safe, quick, easy.

3. The material of suction pad is NBR (oil resistance,skid resistance, corrosion resistance) , Be able to effectively and steel vacuum suction and produce vacuum.

4. The vacuum glass lifter is for handling the glass sheet.

5. Glass lifter max. carrying capacity 200kg. 400kg. 600kg.800kg ( a safety factor 4.0 include).

6. The suction pad can be adjustable, can be turned off and open individually.

7. The vacuum lifter is equipped with a buzzer and warning light units, in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.

8. The design of vacuum lifter by our company is passed to EU CE passed.It is CE identification product.

9. The vacuum lifter is equipped with safety tank&Pressure switch warning, when the power is turned off in sudden, always can keep the work piece not falling down for 30 minutes.

Remote Control Suction Pad 8PCS Glass Lifting Suckers 0

Application

- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.



Remote Control Suction Pad 8PCS Glass Lifting Suckers 1

Remote Control Suction Pad 8PCS Glass Lifting Suckers 2

Related Product

Automatic Aluminum Spacer Bending Machine

Remote Control Suction Pad 8PCS Glass Lifting Suckers 3



Main feature of spacer bending machine

• Automatically cut and feed aluminum spacers

• Adopt Siemens PLC control system, touch screen interface

• Automatically avoid the connection while bending and cutting

• Siemens servo control system

• Four spacer size storage units

• Auxiliary function of adjustment for bending large aluminum frame

• Aluminum spacers are available in different sizes and sizes

• Bend shaped spacer frames continuously

• Separated guard board outside of bender

• Pause and Reset device for handling equipment failures

• Can bend aluminum spacer and stainless steel ( Optional)

• USB input function, read the excel format file directly etc (Optional)

• Spacer printing code function (Optional)

• Printing label sticker function (Optional)

• Automatic drill gas filling hole (Optional)

• Connect to ERP system (Optional)



Technical data of Aluminum spacer bending machine

Max. bending size 2000mm*2000mm
Min. bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm



Remote Control Suction Pad 8PCS Glass Lifting Suckers 4

Remote Control Suction Pad 8PCS Glass Lifting Suckers 5Remote Control Suction Pad 8PCS Glass Lifting Suckers 6

Remote Control Suction Pad 8PCS Glass Lifting Suckers 7
