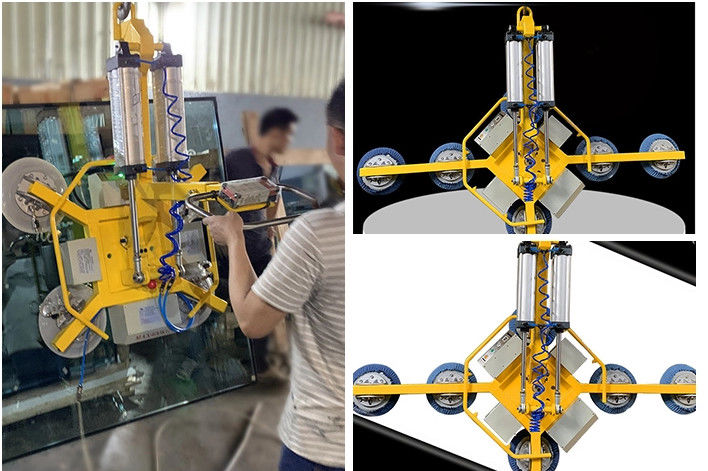

Yellow Double Cup 800KG glass lifting suction cups

Yellow Double Cup 800KG glass lifting suction cups
Yellow Double Cup 800KG glass lifting suction cups Yellow Double Cup 800KG glass lifting suction cups

Large Image :  Yellow Double Cup 800KG glass lifting suction cups

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: KX4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 10days
Payment Terms: L/C, T/T
Supply Ability: 20set/month

Yellow Double Cup 800KG glass lifting suction cups

Description
Name: Glass Cantilever Crane Advantage: With Lifting Sucker
Max Lifting Weight: 800KG
High Light:

800KG Glass Lifting Suction Cups

,

400KG Glass Lifting Suction Cups

,

800KG glass handling suction cups

Factory direct glass vacuum lifter yellow double cup vacuum glass suction cup quality assurance



Vacuum glass electric suction cup lifter KX4



Yellow Double Cup 800KG glass lifting suction cups 0

Yellow Double Cup 800KG glass lifting suction cups 1



Vacuum glass electric suction cup lifter KX4





Manual rotation: 360° edgewise, with locking at each quarter point.

Manual tilt: 90° between upright and flat, with automatic latching in upright position.

Product Features



Mode
KX4
KX5
KX6
Cap
400KG
500KG
600KG
Suction Pad Dia
300mm
300mm
300mm
Suction Pad Qty
4PCS
6PCS
8PCS
Dimension(L*W*H)
900*730*240mm
1800*1190*240mm
1800*1190*240mm
Rotation
Manual360°
Manual360°
Manual360°
Turn over
Manual90°
Manual90°
Manual90°
Voltage
DC12V
DC12V
DC12V
Charging Voltage
110V/220V
110V/220V
110V/220V
Net Weight
110KG
110KG
110KG
Package Size
950*950*400mm
950*950*400mm
950*950*400mm
Cross Weight
130KG
140KG
150KG
Max Loading Size
4000*2000*20mm
5000*2000*20mm
6000*2000*20mm
NOTE:
Considering the effect of plate span and gravity for reference only.

Yellow Double Cup 800KG glass lifting suction cups 2



Yellow Double Cup 800KG glass lifting suction cups 3Useing For

- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.



Yellow Double Cup 800KG glass lifting suction cups 4

Yellow Double Cup 800KG glass lifting suction cups 5



Yellow Double Cup 800KG glass lifting suction cups 0

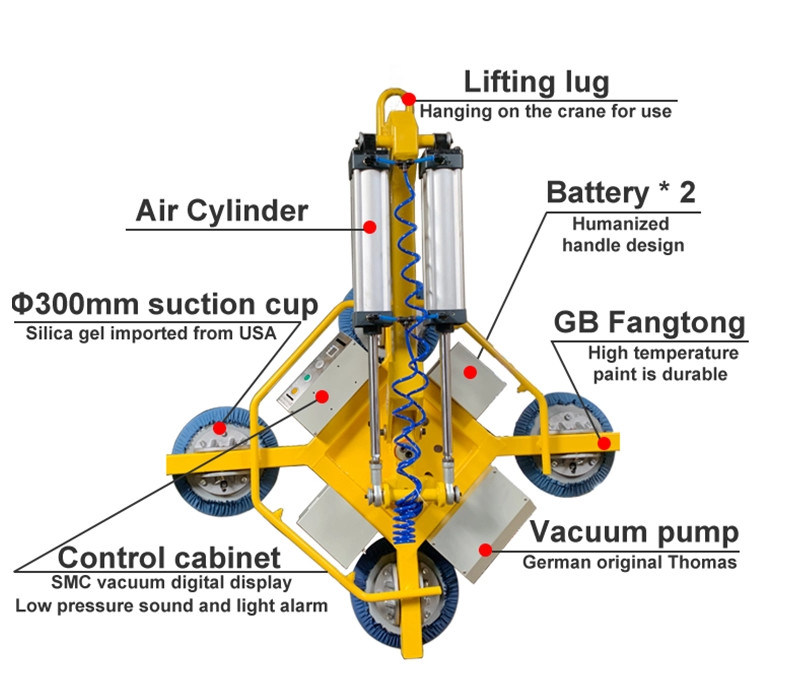

lSealed cover for components protection,safe and reliable. Usually copperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job .

lAdjustable type, can be changed the position of the suction cup to absorb glass of different shapes and sizes (also can be customized according to the glass size)

lManually rotated 360° in the vertical side, and manually rotated 90° in the horizontal side, but taking and releasing by electric

lAdopt American THOMAS vacuum pump and high quality maintenance-free battery, no need the air source or power supply during use.

lJapan Panasonic digital display vacuum pressure switch , battery fuel gauge, clearly monitor the safty use.

lWith vacuum pressure auto supply system, during handling glass, ensure the whole vacuum system maintained at a relatively constant safety pressure value

lEquipped with the power-cut but pressure-keeping device and alarm device. If power failure accidently,the pressure-keepping function can extend the handling time and make the use safer.

lEquipped with 12V backup battery, can be replaced in time to ensure the progress of the project.

Yellow Double Cup 800KG glass lifting suction cups 7



FAQ:

1: How to place an order?
Answer: Tell us your detailed requirements (including your product materials, product dimensions and product weight), and we will
send you detailed parameters and quotations as soon as possible.
2: What is your price?
Answer: The price depends on your requirements for the equipment. According to the model, the price is relatively different.
3: How should I pay?
Answer: We accept wire transfer; letter of credit; Alibaba trade guarantee.
4: How long do I need to order?
Answer: The standard vacuum suction cup spreader, the delivery time is 7 days, custom-made orders, no stock, you need to determine
the delivery time according to the situation, if you need urgent items, please contact customer service.
5: About the guarantee
Answer: Our machines enjoy a complete 1-year warranty, and important parts enjoy a 5-year warranty.
6: Mode of transportation
Answer: You can choose sea, air, rail transportation (FOB, CIF, CFR, EXW, etc.)



Yellow Double Cup 800KG glass lifting suction cups 8

Insulating glass silicone structural sealant

Product Description

Insulating glass silicone structural sealant is a two part, neutral, high modulus, room temperature cure structural silicone sealant; It is specially designed as a secondary seal in dual sealed insulation glass system for curtain wall, building façade; Structural adhesion of glass and aluminum cladding panel curtain wall, skylight and other metal structure.



Product Features - two part insulating glass silicone structural sealant

  • Outstanding strength, high elasticity
  • Great mechanical properties
  • Excellent adhesion to a wide variety of unprimed construction materials
  • Eco friendly
  • It forms a tough elastic rubber that is weatherproof, UV resistant, Ozone resistant and water tight etc.

Product Colors

  • Part A: White
  • Part B (catalyst): Black
  • It can be applied only after Part A and Part B are well mixed at ratio 10:1(by volume) or 15:1(by weight), the color of the mixture is black

Primary Applications

  • Used as the secondary seal in insulating glass system for curtain wall, building façade etc.
  • Structural adhesion of glass and aluminum cladding panel curtain wall, skylight and other metal structure



Yellow Double Cup 800KG glass lifting suction cups 9

Yellow Double Cup 800KG glass lifting suction cups 10Yellow Double Cup 800KG glass lifting suction cups 11
