Product Details:
|
| Name: | Glass Cantilever Crane | Advantage: | With Lifting Sucker |
|---|---|---|---|
| Max Lifting Weight: | 800KG | ||
| High Light: | 500kg Vacuum Hoist Lifting Systems,360 Degree Vacuum Hoist Lifting Systems,360 Degree Suction Glass Lifter |
||

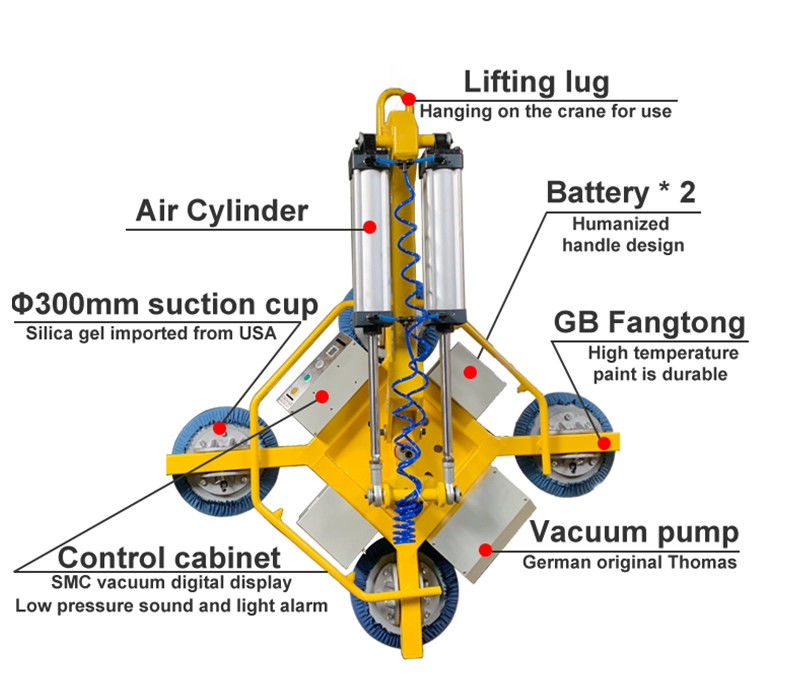

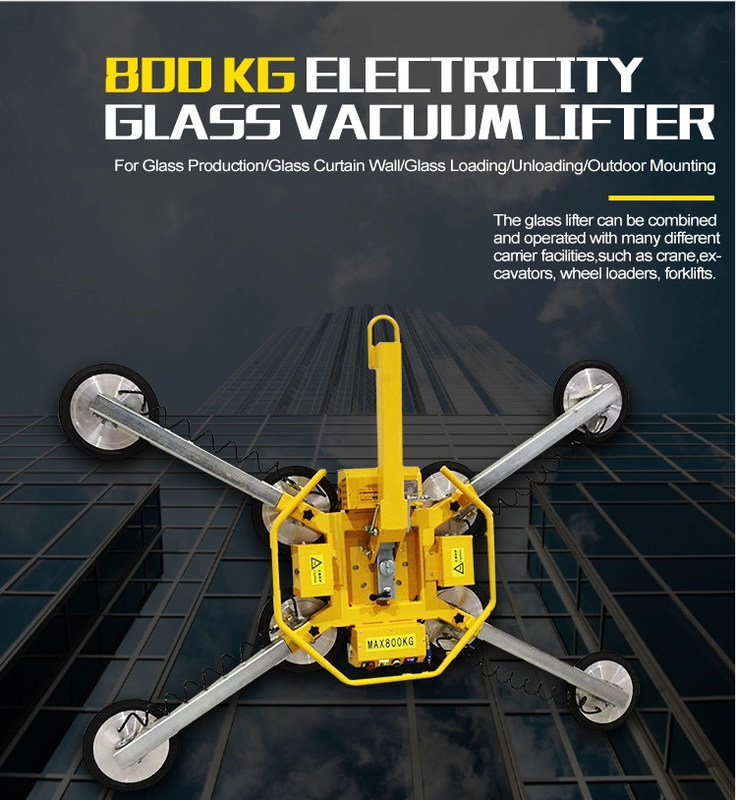

Vacuum glass electric suction cup lifter KX4
Vacuum glass electric suction cup lifter KX4
Manual rotation: 360° edgewise, with locking at each quarter point.
Manual tilt: 90° between upright and flat, with automatic latching in upright position.
1. The vacuum glass lifter is for handling the glass sheet.
2. Glass lifter max. carrying capacity 200kg. 400kg. 600kg.800kg ( a safety factor 4.0 include).
3. The vacuum pump, valve, switch and some important spare parts we are import from oversea.
4. Stable performance, easy to maintain, efficient, safe, quick, easy.
5. The material of suction pad is NBR (oil resistance,skid resistance, corrosion resistance) , Be able to effectively and steel vacuum suction and produce vacuum.
6. The suction pad can be adjustable, can be turned off and open individually.
7. The vacuum lifter is equipped with a buzzer and warning light units, in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
8. The vacuum lifter is equipped with safety tank&Pressure switch warning, when the power is turned off in sudden, always can keep the work piece not falling down for 30 minutes.
9. The design of vacuum lifter by our company is passed to EU CE passed.It is CE identification product.
Useing For
- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.
lSealed cover for components protection,safe and reliable. Usually copperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job .
lAdjustable type, can be changed the position of the suction cup to absorb glass of different shapes and sizes (also can be customized according to the glass size)
lManually rotated 360° in the vertical side, and manually rotated 90° in the horizontal side, but taking and releasing by electric
lAdopt American THOMAS vacuum pump and high quality maintenance-free battery, no need the air source or power supply during use.
lJapan Panasonic digital display vacuum pressure switch , battery fuel gauge, clearly monitor the safty use.
lWith vacuum pressure auto supply system, during handling glass, ensure the whole vacuum system maintained at a relatively constant safety pressure value
lEquipped with the power-cut but pressure-keeping device and alarm device. If power failure accidently,the pressure-keepping function can extend the handling time and make the use safer.
lEquipped with 12V backup battery, can be replaced in time to ensure the progress of the project.
