Product Details:
|
Name: | Butyl Extruder Machine | Aluminum Spacer Width: | 6A-27A |
---|---|---|---|
Coating Pressure: | 10-18mpa | Coating Temperature: | 110-140 ° |
Total Power: | 5.7kw | Machine Size: | 2800*700*900mm |
Coating Speed: | 0-47m/min | Butyl Plug Weight: | 7kg |
Electricity Compoents: | Germany Simens | ||
High Light: | 18mpa Butyl Extruder Machine,5.7kw Butyl Extruder Machine,18mpa extrusion coating machine |

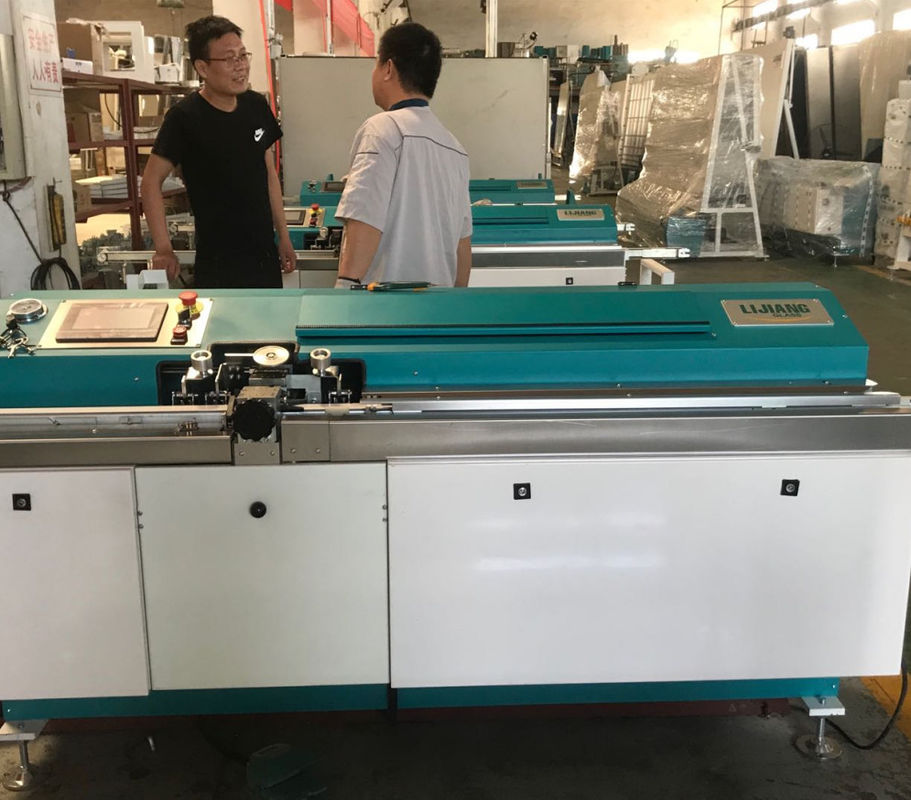

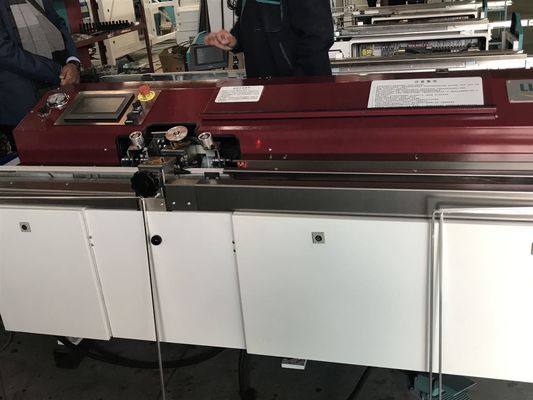

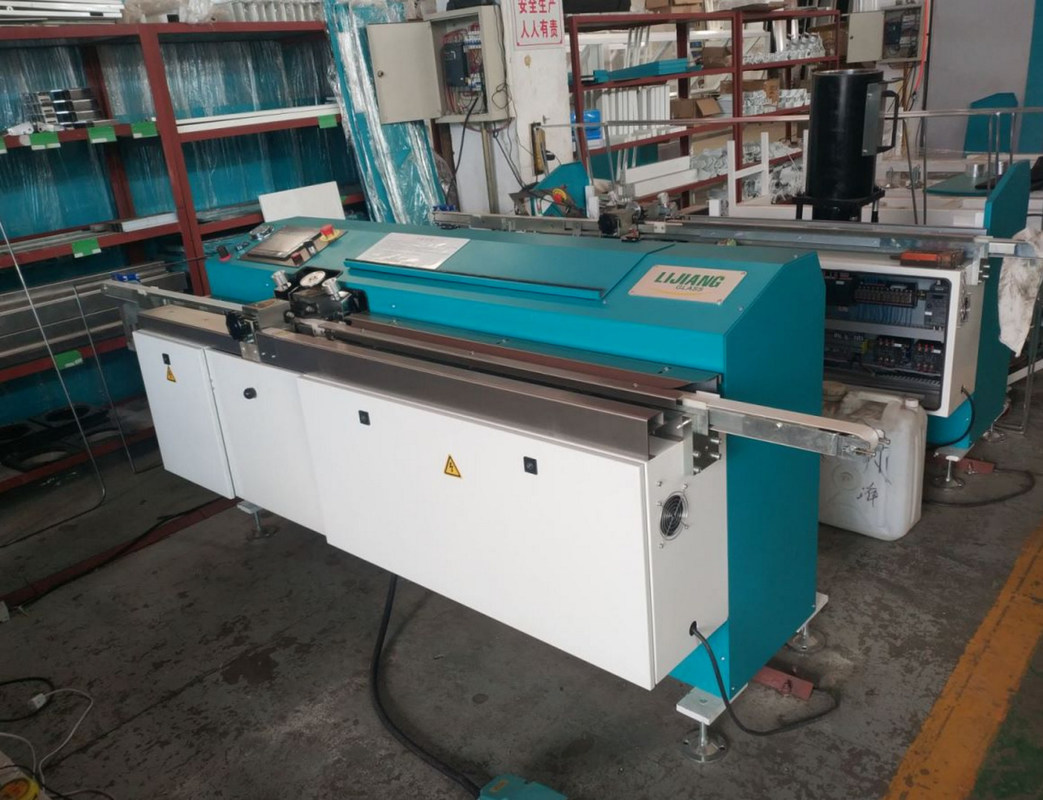

47m/Min 5.7kw 18mpa Extrusion Coating Machine Insulating Glass Machine
APPLICATION
LJTB01 butyl extruder machine is used to apply hot melt butyl to the aluminum spacers of insulating glass evenly.
Butyl extruder machine use of large electrical control panel makes the operation easier.
The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min.
The squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable.
Butyl extruder machine is energy-saving.
The dispensing cylinder uses rotate supporting system and this makes the refill of butyl easier.
system can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure.
The distance of squeezing head can be adjusted automatically according to different aluminum spacer.
Butyl extruder machine has reached the worldwide technology with the characteristic of complete function and stable working mode.
1,LJTB 01 Automatic butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl.
2,The butyl extruder uses large electrical control panel which makes the operation more easier than before.
3,The conveyor of aluminum is controlled by frequency converter.
4,The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now.
5,The butyl extruder is very popular with energy-saving.
6,Butyl extruder machine squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable.
7,Butyl extruder machine dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier.
8,The height of squeezing head can be adjusted automatically according to different kinds of aluminum spacers.
9,Finally, the butyl extruder has reached the worldwide technology with the characteristic of complete functions and stable working mode
Butyl extruder parameters
Name | Brand | Original |
PLC | KINCO | China |
Valve | HAWE | German |
Low voltage electrical apparatus | SIEMENS | German |
Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
Frequency converter | KINCO | China |
Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
Travel light | OMRON | Japan |
Optical fiber | OMRON | Japan |
Squeeze pressure | 10-18MPa |
Temperature | 110~140℃ |
Aluminum spacer width | 4-30mm |
Speed | 0-47m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 380V, 5KW, 50HZ |
Dimension | 2600×680×1100mm(L×W×H) |
Weight | 650kg |
