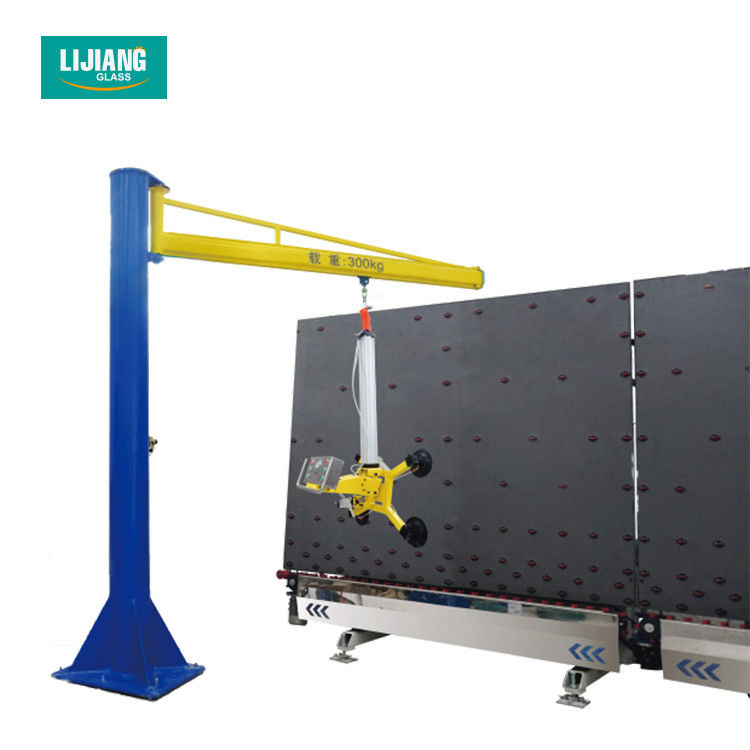

500kg Insulating Glass Cantilever Lift Crane With Suction Cups

500kg Insulating Glass Cantilever Lift Crane With Suction Cups
500kg Insulating Glass Cantilever Lift Crane With Suction Cups 500kg Insulating Glass Cantilever Lift Crane With Suction Cups

Large Image :  500kg Insulating Glass Cantilever Lift Crane With Suction Cups

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJXJ300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month

500kg Insulating Glass Cantilever Lift Crane With Suction Cups

Description
Production Name: Glass Vacuum Lifter Max Glass Weight: 300kg / 500kg
Suckers: 2 Or 4 Suckers Jib Crane: With Column
Column Length: 4 Meters Arm Length: 4 Meters
High Light:

500kg Cantilever Lift Crane

,

Insulating Glass Cantilever Lift Crane

,

glass vacuum IGU Machine

IGU machine Insulating Glass Processing Cantilever Lift Crane With Suction Cups

 Cantilever crane lifter machine is one kind of glass loading and unloading machine for glass factory or glass users. Glass loading equipment can be jib crane , can be the glass car and the glass lifter device.



Feature of cantilever crane lifter

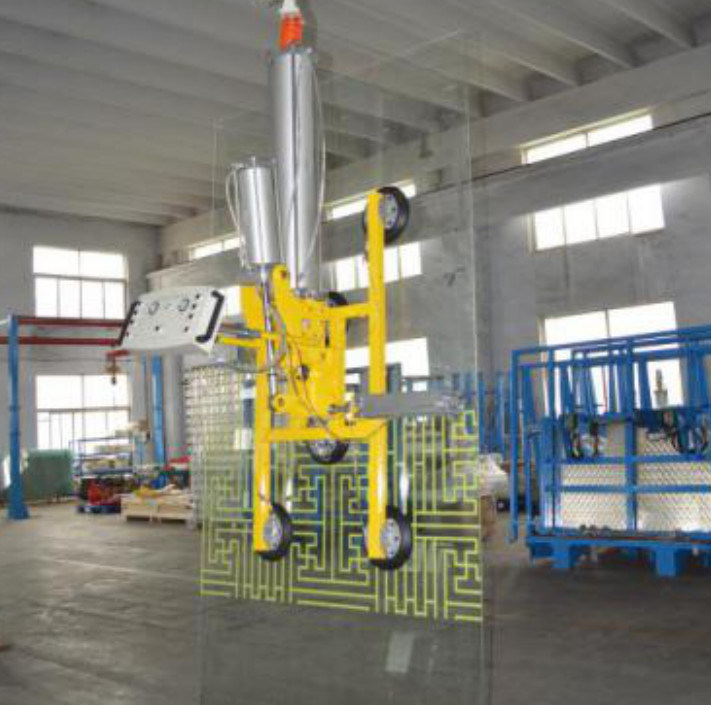

1. Cantilever vacuum glass lifter is for handling insulating glass sheet.

2 Glass lifter is stable, easy to use and safe.
3.Glass lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
4. Glass lifter is able to lift the glass sheet with 300kg / 500kg / 900kg ....
5. Glass lifting machine is equip with 2 / 4 / 5 suckers. The No.s of suckers can be add according to need of the client.



Advantage of glass lifter

  • Glass lifting equipment is common light lifting equipment in modern production. It is fit for frequent lifting work of short distance between fixed positions. It has advantages of high efficiency, energy saving, convenience, occupying a small area and easy operation and maintenance. Jib crane has two structures of pillar stationary type and binding type. You can choose either.
  • Glass lifter is operated by using compressed air instead of using electricity. All pneumatic components, we use Japanese SMC brand, while we use German SCHMALZ products for vacuum parts which is the most advanced technology of pneumatic and vacuum control in the world.
  • Glass Suction lifting equipment is reliable and safe, easy to operate. This device is usually used together with jib crane beam or gantry crane frame, depending on the client's requirements.The device is commonly used for glass loading and unloading work in glass deep processing process, such as cutting, grinding, cleaning, tempered, laminated and insulated.

Tech Parameters of Cantilever Lift Crane



Max Glass weight 300/500KG
Rotation angle

Rotate 90 °

Flip 90°

Left and Right

Up and Down

Suction cups 6 Pieces
Cup Materials Silicone
Sliding method Manual
Column height 4 meters Gas storage function
Arm length 4 meters
Air Control parts Airtac



Max Glass weight 400KG
Rotation angle

Rotate 90 °

Flip 90°

Left and Right

Up and Down

Suction cups 2 pieces
Cups Materials Silione
Sliding method Manual
Column height 4 meters Gas storage function
Arm length 4 meters
Air control parts Airtac



Related product

Automatic Butyl coating Machine LJTB 01

500kg Insulating Glass Cantilever Lift Crane With Suction Cups 0



Technical data



Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 6A - 27A
Speed 5-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5.7KW,50HZ
Dimension 2800×700×900mm(L×W×H)
weight 650kg



Main feature



• with preheating function

• PLC control system, touch screen interface

• Quickly coating speed,can up to 47m/min

• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust

• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full

• With exhaust inflatable function, improve the quality of sealing and save time for plastic

• Fast preheat, improve work efficiency

• Saving the amount of glue

500kg Insulating Glass Cantilever Lift Crane With Suction Cups 1500kg Insulating Glass Cantilever Lift Crane With Suction Cups 2

500kg Insulating Glass Cantilever Lift Crane With Suction Cups 3
