Product Details:
|
| Production: | Vertical Insulating Glass Washing Machine | Max Glass Size: | 2000mm*2500mm |
|---|---|---|---|
| Min Glass Size: | 250mm*400mm | Glass Thickness: | 3 - 15 Mm |
| Brushes: | 6 Pieces Of Soft Brushes | Material: | Stainless Steel |
| Warranty: | 1 Year | ||
| High Light: | 2000mm*2500mm Insulating Glass Washing Machine,0.8MPa Insulating Glass Washing Machine,0.5t/h Vertical glass cleaning machine |
||

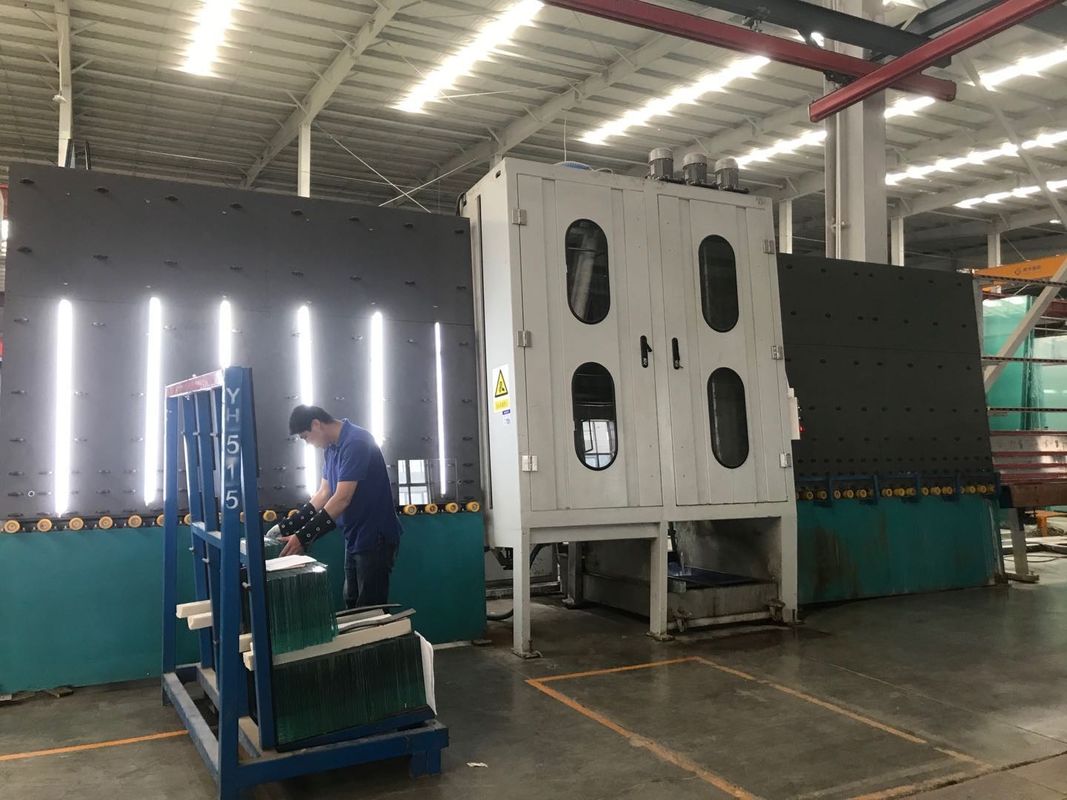

Vertical Insulating Glass Washing Machine With Six Pieces of Soft Brushes
Glass washing machine - LJBQX2025
Main feature:
• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass
• Pre-washing (Optional)
• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.
• The air knife can automatically adjust the width of the air knife according to the thickness
• The operation box with washing speed display, can accurately display washing speed (8-10m)
• Water tank automatic temperature control, water replenishing system
• European silencer system
• Stainless steel material
The glass washing machine is used to wash small size of glass specially, the brushes can be choosed in soft brushes or hard brushes, wash low-e glass or common float glass.
Technical introduction:
A, this machine adopts Siemens control system, which can freely adjust the cleaning speed of the machine.
B, the machine is divided into manual and automatic control mode, each section can be controlled separately, easy to use and concise.
C, LJBQX2000 vertical washing machine includes LJBQX2000 feed section, LJBQX2000 cleaning and drying section, LJBQX2000 discharge section.
LJBQX2000 feed section is inclined vertical structure. The conveyor roller is abrasion-resistant, acid and alkali resistant polyurethane roller, adopts stepless frequency conversion speed regulation, the glass can run smoothly at an appropriate speed, and the foot switch can start and stop the transmission at any time according to the working conditions. The coating detection alarm system can timely and accurately detect whether the coated surface of the glass is placed correctly or not, the placement is wrong, the buzzer alarms, and the transmission stops.
The LJBQX2000 cleaning discharge section is an inclined vertical structure. The transfer roller is a wear-resistant, acid and alkali resistant polyurethane roller, adopts stepless frequency conversion speed regulation, the glass can run smoothly at an appropriate speed, and is equipped with inspection lamps to check the effect of glass cleaning.
The glass must be edged before cleaning, otherwise it will scratch the supporting wheel and make the hair on the brush fall off, reducing the service life.
1. Adjust the water temperature controller in the electric box according to the actual situation to set the water temperature, generally in the range of 15 °C to 50 °C.
Neutral detergent can also be added to achieve the best cleaning effect.
2. Adjust the speed regulating knob on the cleaning machine panel and adjust the transmission speed according to the glass dirt.
3. The thickness of cleaning glass is 3 ~ 15 mm, and trace water droplets are allowed on the back edge of the glass after drying.
4. After the installation and adjustment, please run the test according to the operation instructions. If the glass is broken due to poor adjustment, it is necessary to quickly stop and clean the broken glass, so as not to scratch the brush and the transfer roller.
5. All parts of the machine are well grounded.
Technical parameters:
| Max.glass size | 2000*2500mm |
| Min.glass size | 280*400mm |
| Glass thickness | 3-15mm |
| Materials | Stainless steel |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz (Optional) |
