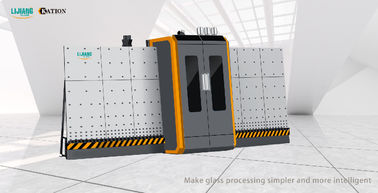

Stainless Steel 31KW Vertical Glass Washing Machine Drying Section

Stainless Steel 31KW Vertical Glass Washing Machine Drying Section
Stainless Steel 31KW Vertical Glass Washing Machine Drying Section Stainless Steel 31KW Vertical Glass Washing Machine Drying Section Stainless Steel 31KW Vertical Glass Washing Machine Drying Section Stainless Steel 31KW Vertical Glass Washing Machine Drying Section Stainless Steel 31KW Vertical Glass Washing Machine Drying Section

Large Image :  Stainless Steel 31KW Vertical Glass Washing Machine Drying Section

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: 2500 A
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 25000
Packaging Details: container
Delivery Time: 30
Supply Ability: 25sets

Stainless Steel 31KW Vertical Glass Washing Machine Drying Section

Description
Name: Vertical Glass Washing Machine Max.glass Size(Optional): 2500*3500mm
Min.glass Size: 280*450mm Glass Thickness: 3-15mm
Glass Washing Speed: 2-10m/min
High Light:

280*450mm Vertical Glass Washing Machine

,

31KW Vertical Glass Washing Machine

,

Vertical insulating glass production line

Vertical glass washing machine 2500



The whole washing and drying section adopt 304 stainless steel, including the plate and interior spare parts.



Stainless Steel 31KW Vertical Glass Washing Machine Drying Section 0

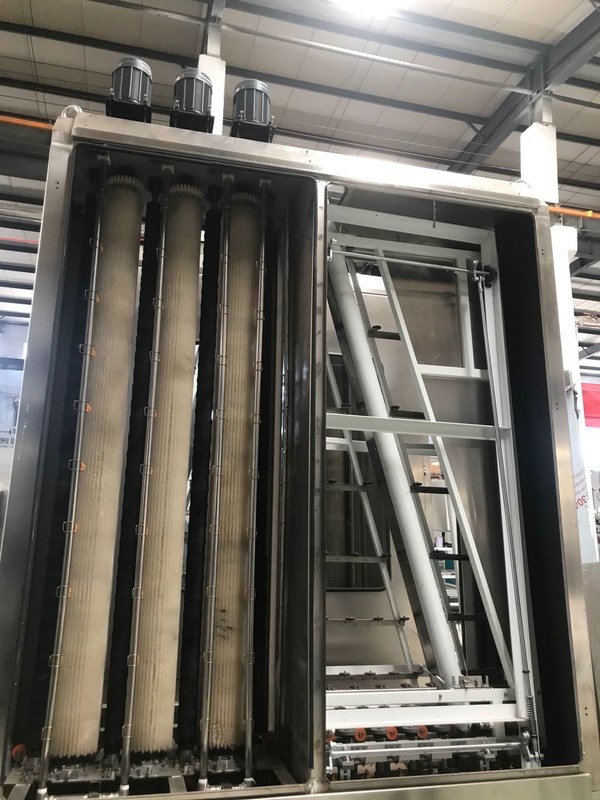

  • Six Brushes

It has 6 brushes which are all soft brushes, can wash flat glass, temper glass and low-e glass. It has a diameter of less

than 0.1mm bristles, never damage glass, especially for low-e glass .

  • Noise reduction device

The noise can be controlled below 90 decibels by using nylon gear and sponges.



Stainless Steel 31KW Vertical Glass Washing Machine Drying Section 1



  • Water heating system

Adopts air heating system, use soft water to wash glass clearly.



Stainless Steel 31KW Vertical Glass Washing Machine Drying Section 2



5. Automatically recognize glass thickness



1). There is a universal joint device, when the glass thickness was changed, the wind knife

will move forward and backward to adjust the distance so that the relative distance between

the wind knife and the glass is constant, so as to avoid damage to the glass due to the changes

of the glass thickness.



Stainless Steel 31KW Vertical Glass Washing Machine Drying Section 3



. There are chain gears on both sides of the bottom of the glass to actively transfer the glass which can keep

a fast speed, not only the large size, small size glass can also be passed quickly.



Stainless Steel 31KW Vertical Glass Washing Machine Drying Section 4



Inspection section

1.The checking part uses LED tubes to check whether the glass is clean or not.



Stainless Steel 31KW Vertical Glass Washing Machine Drying Section 5







Main feature:

l Automatic detect low-e & high performance glass

l Wash online and offline low-e glass, automatically recognizes Low-e film

l The air knife can automatically adjust the width according to the glass thickness

l Using intelligent intermittent energy-saving working methods

l Hierarchical type washing system

l Water tank automatic temperature control, water replenishing system

European silencer system&stainless steel drying system



Max.glass size(Optional) 2500*3500mm
Min.glass size 280*450mm
Glass thickness 3-15mm
Glass washing speed 2-10m/min
Glass conveyor speed 15m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Dimensions approximately 6260*4800*3100
Weight 3940kg
Total power 3P 31KW

Electrical parameters

NAME ORIGIN BRAND
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Photoelectric switch Korea AUTONICS
Button and indicator light France SCHNEIDER
Touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
Transfer motor Taiwan LINHAI
Brush motor China QINGHUA
Water pump China LINGXIAO
Pneumatic Components Taiwan AIRTAC



Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring

city------Jinan. It is an enterprise which integrated glass processing equipment research and development,

sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very

convenient.



The company is committed to building high-end insulating glass machinery and equipment by learning from

famous experts, establishing the research and development centers, cooperating with domestic and foreign

well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North

Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other

well-known enterprises. Since the establishment of the company, our products have been exported to Europe,

America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same

time, our company worked with the well-known domestic research institutes, such as the North China Industrial

Group, Shandong University and others, to constantly improve the level of technical research. So far, we haveStainless Steel 31KW Vertical Glass Washing Machine Drying Section 6

independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing

robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic

butyl extruder machine, its technology and quality have reached the highest leading level in China.



With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win

situation and jointly creating a new world.
