Product Details:
|
| Production Name: | Butyl Extruder Machine | Glue Barrel: | 7 Kg |
|---|---|---|---|
| Coating Speed: | 47m/min | Heating Time: | 5 - 15 Mins |
| Machine Control: | PLC And Servo | Warranty: | 1 Year |
| Voltage: | 380V 50Hz 3P | ||
| High Light: | 200mm Butyl Extruder Machine,18MPa Butyl Extruder Machine,servo Insulating Glass Butyl Extruder |
||

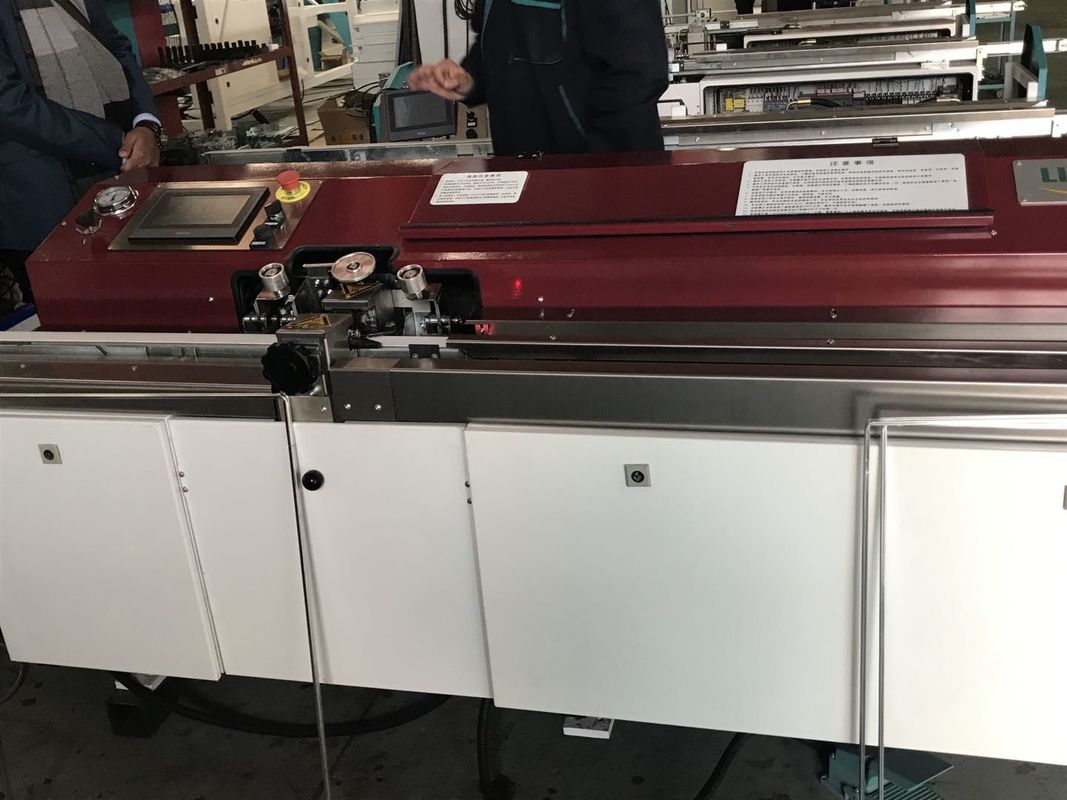

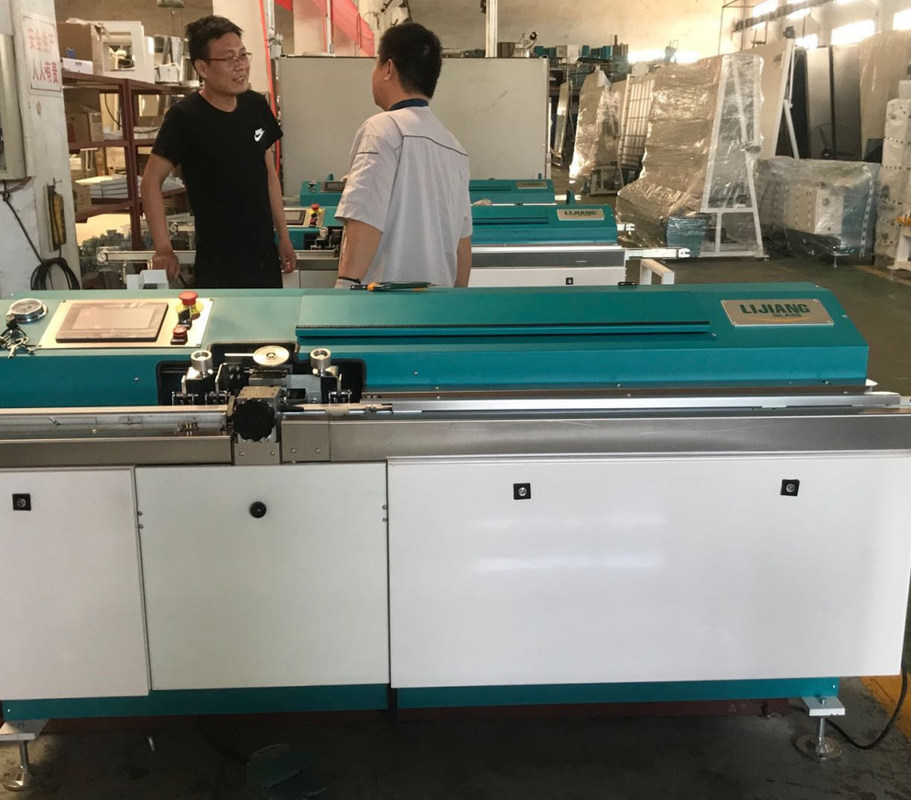

Insulating Glass Butyl Extruder With 7KG For Making Insulating Glass Units
Brief introduction of the aluminum strip butyl coating machine main performance characteristics of the insulting glass butyl glue coater door moving equipment 1. Butyl glue coating machine is the first necessary equipment for insulating glass production. It is semi-active strip coater, that is, manual holding aluminum distance frame for operation, and the aluminum distance frame is placed on the conveyor belt. The manual aluminum distance frame is operated with the conveyor belt. When the aluminum distance frame passes through the sensor, the transmission roller and the glue valve will run actively according to the setting procedure, namely, cylinder action, pressing wheel pressing, and pressing aluminum feeding valve Distance frame shall be carried out; when the aluminum distance frame reaches the rubber tapping head, glue shall be applied evenly on the aluminum distance frame. When the distance frame is near to the pressing wheel on the other side of the distance frame, the roller will be lifted and the rubber valve will stop the glue tapping actively when leaving the rubber tapping head.
Technical data :
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Electrical parameters :
| Name | Original | Brand |
| PLC | China | KINCO |
| Valve | German | HAWE |
| Low voltage electrical apparatus | German | SIEMENS |
| Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
| Frequency converter | China | KINCO |
| Pneumatic components | Taiwan | ARTAC |
| Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
| Travel light | Japan | OMRON |
| Optical fiber | Japan | OMRON |
Main feature :
• PLC control system, KINCO touch screen interface
• Hydraulic system using German brands
• Alarm system, reminding adding butyl glue
• The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable
• Exhaust function
• Short preheating time, improve work efficiency
• Coating shape frames, the roller device can be selected at will
• Fast coating speed, can up to 47m/min
• Stable pressure and even coating
• Saving glue. The amount of glue on both sides can reach 4g / m
Other type of automatic butyl extruder machine LJTB02
Introduction :
Fully automatic butyl extruder machine can line with the insulating glass assembly line to realize fully automatic production, and the whole coating process does not need manual work. This automatic butyl extruder machine consists of pressing wheel system (linear pressing wheel, arc pressing wheel), centering wheel, glue nozzle unit, extrusion unit, transmission unit, rotation mechanism, support mechanism, frame unit, pneumatic system, hydraulic system and control system.
Machine features:
(1) There is the alarm device, it will automatically alarm when there is no glue (there will be a prompt on the touch screen);
(2) Timing heating function, workers can set the start-up time of the equipment in advance, the equipment will automatically start the system heating before the official work quickly.
(3) Automatically adjust the distance between front and back glue nozzles according to the width of aluminum spacer.
(4) The transmission motor is controlled by servo motor, and the transmission speed can reach up to 50m / min.
(5) Large frame support mechanism, to prevent large-scale aluminum frame from shaking by a wide margin at the corner, resulting in frame deformation.
(6) Simple, stable and reliable operation, precise coating effect, fast coating speed and high production efficiency.
