Product Details:
|
| Production Name: | Glass Washing Machine | Max Glass Size: | 2500 Mm*3500 Mm |
|---|---|---|---|
| Min Glass Size: | 250 Mm*480 Mm | Glass Thickness: | 3 - 15 Mm |
| Glass Washing Speed: | 8 - 10 M/min | Brushes: | Common Brushes / Stainless Steel Brushes |
| Warranty: | 1 Year | Machine Brand: | LIJIANG GLASS |
| High Light: | Insulating Tempering Glass Washing Machine,15 mm Tempering Glass Washing Machine |
||

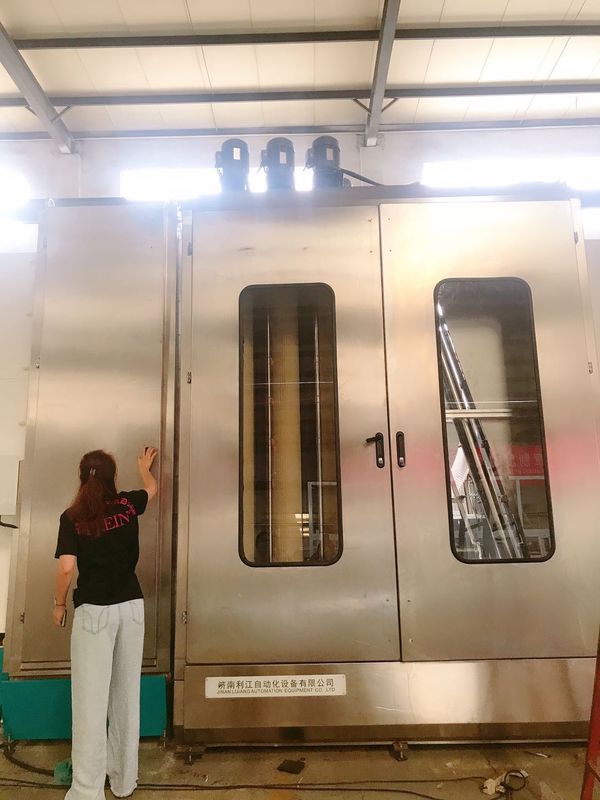

Vertical Insulating Tempering Glass Washing Machine With Soft Glass Washing Brushes
1. Usage
LJQX2500 vertical washing machine can complete the following functions: cleaning and drying of clear glass and low-e glass.
LJQX2500 vertical washing machine is a special equipment in the production of aluminum slotted insulating glass. The washing machine has the advantages of small occupation area, high efficiency, reliable performance and convenient maintenance.
2. Parameters
| Power supply | Voltage(V) | 380 |
| Frequency (Hz) | 50 | |
| Main power | kW | ≈36.7 |
| Washing speed | m/min | 2~10 |
| Max high speed | m/min | 10 |
| Min glass size | mm | 450×280 |
| Max glass size | mm | 2500×5000 |
| Glass thickness | mm | 3~15 |
| Total air consumption | L/ min | 500 |
| Roller height | mm | 920 |
| Total weight | kg | ≈3500 |
| Dimensions | Length×width×height (mm) | 9300×3500×3700 |
3. Technical introduction
A, this machine adopts Siemens control system, which can freely adjust the cleaning speed of the machine.
B, the machine is divided into manual and automatic control mode, each section can be controlled separately, easy to use and concise.
C, LJQX2500 vertical washing machine includes LJQX2500 feed section, LJQX2500 cleaning and drying section, LJQX2500 discharge section.
4. Structural features and functions:

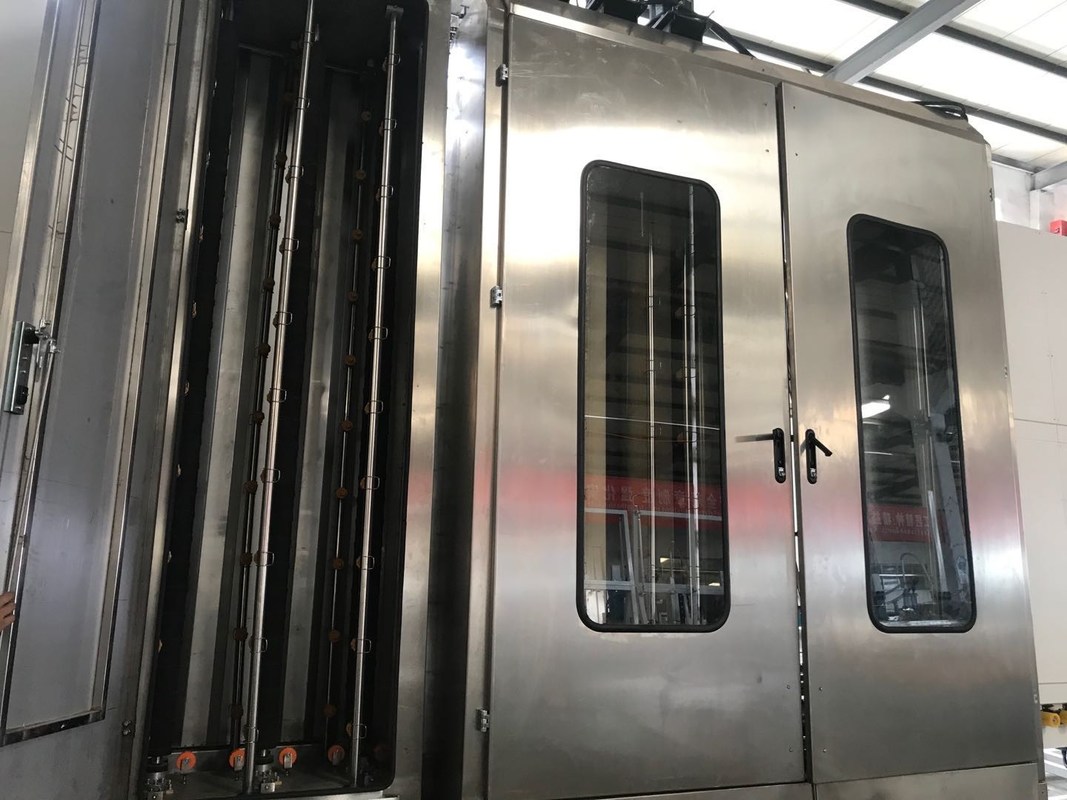

The LJQX2500 cleaning and drying section is placed in an inclined vertical position. The control box is arranged outside the cleaning section for easy operation. The cleaning section and the water tank are made of stainless steel and corrosion-resistant materials, and the transfer roller is an acid-alkali-resistant rubber roller. The distance between the front and back support is automatically adjusted according to the thickness of the glass. The washing and drying section adopts stepless frequency conversion speed regulation, and the glass can run smoothly at an appropriate speed. The cleaning section has three pairs of brushes equipped with a high-pressure water sprayer to clean LOW-E glass; the drying section has a pair of inclined air knives with a partition in the middle, which automatically adjusts the distance between the two air knives according to the thickness of the glass to ensure air drying Effect: The fan is a 15KW variable frequency fan. When drying the small glass, the fan runs at low frequency, and the air knife only uses the lower half of the air knife, which not only greatly reduces energy consumption, but also does not affect the drying effect.
The waterway system includes two independent waterway circulation systems: a primary cleaning waterway system and a secondary rinsing waterway system. The glass is first cleaned by the primary cleaning waterway and then rinsed by the rinsing waterway. The water is pumped out of the water tank by a water pump, sprayed onto the glass surface through a spray water pipe, and the glass is cleaned by a brush, and then flows back to the water tank for recycling. The first-level cleaning water tank is equipped with a temperature-controlled water heating device, which can automatically maintain the water temperature. In order to ensure the cleaning effect, the conductivity of the cleaning water must not be greater than 40μs. If the water quality is poor, a water treatment device is required. After the water is treated, the water enters the rinsing water tank and is recycled according to the above steps. The water treatment device is prepared by the user.
