Product Details:
|
| Machine Name: | Insulating Glass Line | Color: | Write / Green / Red And So On |
|---|---|---|---|
| Max Glass Size: | 2000 Mm*2500 Mm | Glass Thickness: | 3 - 15 Mm |
| IG Thickness: | 50 Or 60 Mm | Washing Machine Material: | Stainless Steel |
| Machine Length: | 16.7 M Or 19.5 M | Optional Function: | Triple Glass / Step Glass |
| Warranty: | 1 Year | Contacts: | Hermione : +86 18353163989 |
| High Light: | 2500mm Height Insulating Glass Line,2m/min Insulating Glass Line,0.8MPa glass processing machines |
||
2000 / 2500 Height Insulating Glass Line With Glass Washing And Pressing Machine
Company profile :
Jinan Lijiang Automation Equipment Co., Ltd (LIJIANG GLASS) specializes in the R & D and manufacturing of automatic insulating glass machinery since 2007. Domestic friendly partners include nearly one thousand customers, such as North glass, Xinfuxing, Yaohua, etc.
The products have been exported to Europe, the United States, the Middle East, Southeast Asia, South America,Romania, Bulgaria, Span and other countries (about 30 countries) of the world. At the same time, we have set up branches in New Delhi, India.
LIJIANG's products mainly include:
IG line series;
Sealing robot series;
Low-e film edge deletion machine;
Spacer bending machine series;
Butyl extruder machine series;
Desiccant filling machine;
Auxiliary insulating glass machines.
About 20 products are widely used in customized insulating glass industry, windows and doors, industrial aluminum alloy, building curtain wall, high-speed rail, elevator and advertising industry.
IG line series :
Sizes :
2000*2500
2500* 3500
3000* 4000
Functions :
double glazing glass
triple glazing glass
four sides step glazing glass
Special technology :
Shaped glazing glass
Filling argon gas online
Low-e film glazing glass
Making two pieces of IG units in once time
Air floating insulating glass line
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD
Address: Block B 1307, Green Square, Huaiyin District, Jinan, China
Salesperson: Hermione (+86 18353163989 / +86 13001733235)
Email: sales01@lijiang-glass.com
Website : www.lijiang-glass.com / www.insulatingglassproductionline.com

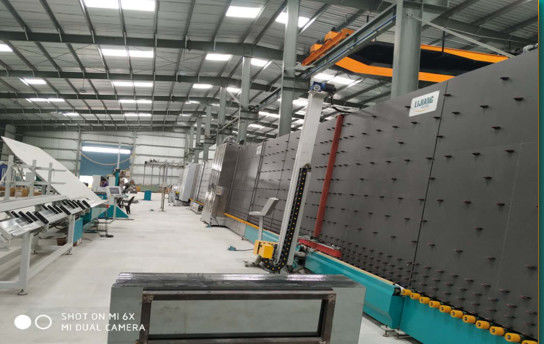

Vertical Insulating Glass Production Line - 2000*2500
Main Features:
• The line has 7 sections:
01 transfer section;
02 washing machine;
03 discharge section;
04 inspection and installation section;
05 transfer section;
06 pressing and filling section;
07 discharge section.
Washing machine:
Main feature:
• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass
• Pre-washing (Optional)
• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.
• The air knife can automatically adjust the width of the air knife according to the thickness
• The operation box with washing speed display, can accurately display washing speed (8-10m)
• Water tank automatic temperature control, water replenishing system
• European silencer system
• Stainless steel material
• pressing and filling section
Pressing machine :
Main feature:
• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice
• Adopts conveyor belt to transfer glass, uses servo motor to press glass
• The pressing plate can be opened for easy maintenance
• Pressing board with adjustable structure to guarantee long-lasting service life
Technical data:
| Max. glass size | 2000mm*2500mm |
| Total length | 19.5 meters |
| Min. glass size | 280mm*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 50mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ |
| Warranty | 1 year |
| Weight | 6500kg |
