Product Details:
|
| Max Glass Size: | 2500X3500mm | PLC: | SIEMANS |
|---|---|---|---|
| Advantage: | Stepped Glass And Triple Glass | ||
| High Light: | glass processing machines,insulating glass line,PLC Control Insulating Glass Line |
||

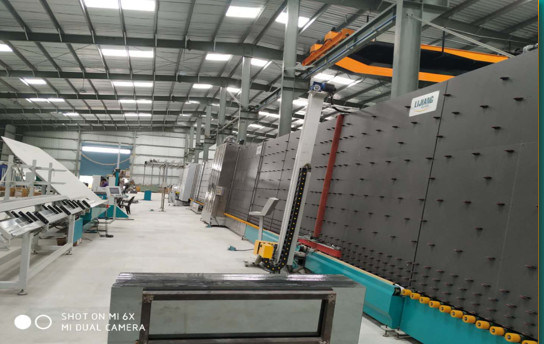

Vertical Insulating Glass Production Line with max Glass size 2500*3500mm
Automatic Insulating Glass Production Line LJBZ2535 |
• Adopt SIEMENS control system, keep stable performance • PLC control system, touch screen interface • Automatically adjust the depth of glue with digital display • Using servo to control system, modular function, superposition function • Applicable to produce stepped IG, triple IG and shaped IG • Two pieces of IGU can be made and filled with argon gas in one time (Optional) • Min & Max glass sizes can be optional
|
Electrical parameters
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Servo motor | Japan | FUJI |
| Photoelectric switch | Germany | SICK |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Brush motor | China | QINGHUA |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| IG line without filling gas online | ||
| NAME | ORIGIN | BRAND |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Transfer motor | Taiwan | LINHAI |
| Brush motor | Taiwan | LINHAI |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Germany | SICK |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| IG line with gas filling online | ||
| Max. glass size | 2500mm*3500mm |
| Min. glass size | 280mm*400mm |
| Glass thickness | 3-15mm / 19mm |
| Insulating glass thickness | 50mm / 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
Advantage of Press machine:
• Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon gas over 90%.
• Can be better prevented the pressing part to be out of shape by pressing two pieces of IGU in once time.
• High-speed IG processing line
• Solving the problem of waiting for working on the sealing robot. Improve work efficiency highly.
• Installing two spacer frames for two IGU by one workman.
• Automatically measuring glass size and labeling (labeling can be allowed before pressing and after pressing) with ERP system.
• From transfer part to pressing part, each part is divided.
• Suitable for mass production in a factory, Ultra-fast speed.
As professinal Insulating glass machine manufacture in China,except material such as Moleculaer sieve and aluminum spacer and sealant . We are good at develping and producing automatic vertical insulaing glass processing production line ,vertical low-e glass egde deleting machine,automatice robot insulaiting glass production line and so on.We sincerely invite you to visit our factory to see the whole production line, and please kindly send me email now so that we can send you the quotation list, have a good day!
