Product Details:
|
| Certification: | CE | Production Name: | Molecular Sieve Filling Machine |
|---|---|---|---|
| Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm | Filling Aluminum Frame's Minimal Size: | 300mm*250mm |
| Aluminum Specifications: | 6A-27A | Molecular Sieve Diameter Needed: | 0.5- 0.9 Mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Optional: | Big Barrel |
| Dimension: | 1300*1100*3600mm | Application: | Insulating Glass Making |
| High Light: | Molecular Sieve Desiccant Filling Machine,Insulating Glass Desiccant Filling Machine |
||

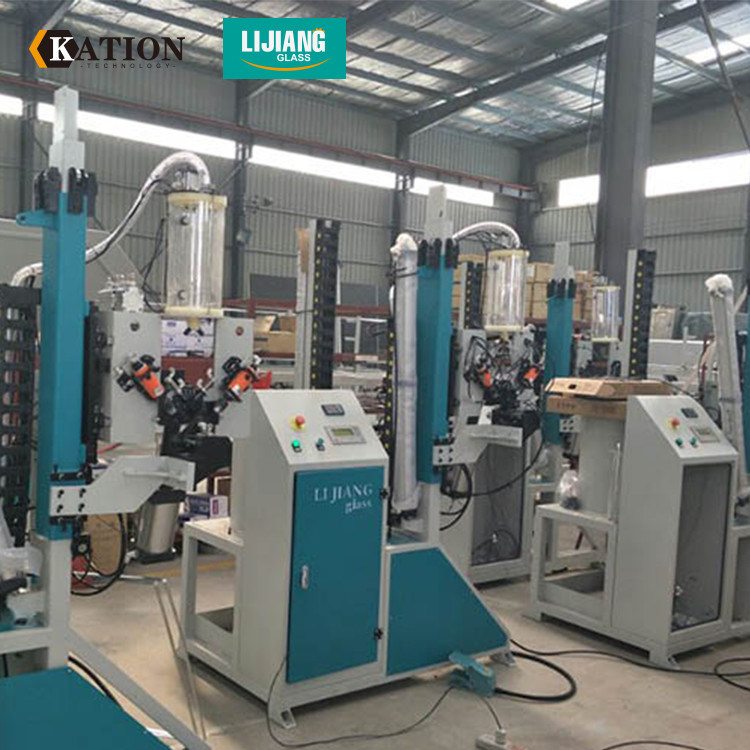

Overview of Desiccant Automatic Filling Machine
The desiccant automatic filling machine can automatically drill holes in the spacer frame and automatically perform the operation of filling the desiccant and sealant.
The desiccant automatic filling machine control system employs German Siemens, which ensures fast filling speed and stable operation to ensure effective sealing properties of the sealant.
The desiccant automatic filling machine improves the quality of double glazing. This is the equipment needed for the double glazing process.

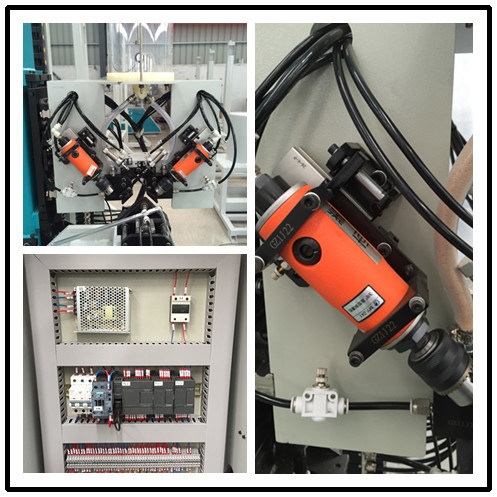

Detail of Automatic Automatic Molecular Sieve Desiccant Filling Machine
1. Molecular sieve Machine height can be adjusted according to the size of spacer frame
2.Automatic desiccant filling machine Adopt Siemens PLC control system,Touch screen interface, easy operation.Electrical component are all Germany Brand-Siemens.
3.Desiccant filling machine have Protection device for machine head.
4.Molecular sieve filling machine can auto drilling, filling and sealing.
5. Molecular sheaves can be automatically loaded from the material bucket.
(When the material is exhausted, the sensor will warn you and the desiccant will be loaded automatically)
6.All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .
7.All spare parts have ID Number for offering the convenience in after sales service.
8. The filling time can be adjusted according to the size of the spacer frame of the touch screen. Touch screen interface, simple and visible
9. Also has a big barrel to storage desiccant ,no need to put desiccant frequently,increasing efficiency.
10.Easy and safe for adding glue.
Technical parameter of automatic molecular filling machine
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
Related products
Manual Molecular sieve filling machine LJGJ03
Manual molecular sheave filling machine used to fill the spacer frame with molecular sheaves to improve the quality of double glazing
Main feature
1.Can effectively fill desiccant and keep dry
2.Manually filling desiccant into spacer frame
3.The desiccant can be recyclable
4.Easy operating, simple and flexible
Technical parameter
| Power supply | 220V 50Hz |
| Total power | 1kw |
| Dimension | 2490*400*2200mm |
