Product Details:
|
| Machine Name: | Spacer Transfer Machine | Using Way: | Transfer Spacer Frame |
|---|---|---|---|
| Warranty: | 1 Year | Machine Type: | New |
| Control Way: | Electric Control | Brand: | LIJIANG GLASS |
| High Light: | 120W Aluminum Spacer Transmit Machine,50Hz Aluminum Spacer Transmit Machine |
||

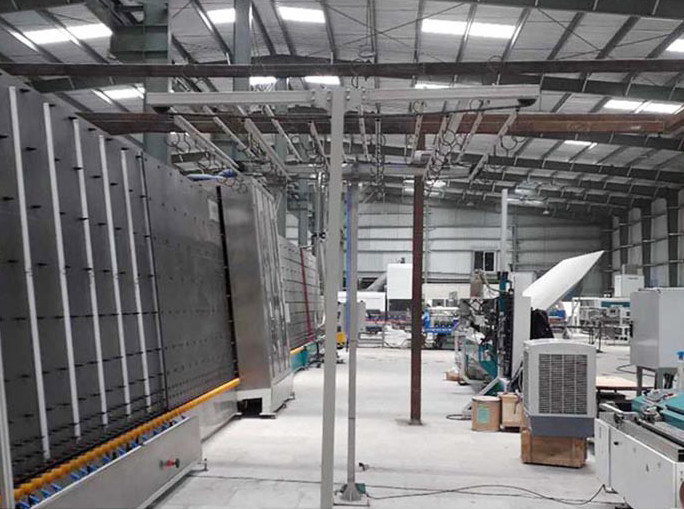

Easy spacer frame transfer tool for spacer frames storage in front of IG line

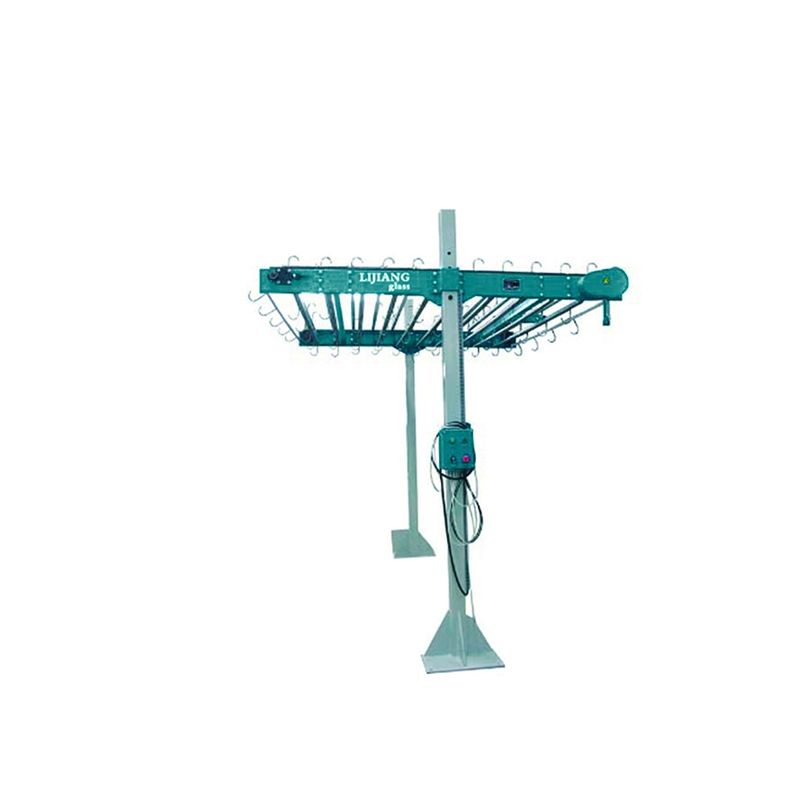

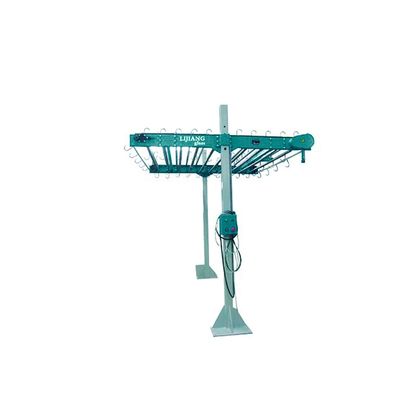

LJSJ02 Aluminum Spacer Transmit Machine is special equipment placing and transmitting aluminum spacer in the process of insulating glass production, can prevent aluminum frame deformation of spreading butyl sealant and adhesion to each other, can store large amounts of aluminum frame and forward through the foot switch.
The performance of this machine is stable, safe, reliable, simple to learn, is the indispensable ideal equipment in the production of insulating glass .
1. Main technical parameter
| Working Environment | Parameter | Unit | Remark |
| Working Temperature | 15~40℃ | ||
| Transport / Storage Temperature | -20~55℃ | ||
| Transport / Storage Relative Humidity | 30~90% | ||
| Basic Features | |||
| Input Power | 380V±10%,50Hz | ||
| Total Power | 120 | w | |
| Dimension(L×W×H) | 2100×1560×2400 | ㎜ | |
| Total Weight | 150 | ㎏ |
2. Structure and feature
The machine consists of four columns, the transmission system, and hook, transmission system consists of the frame, motor, sprockets, chain and tensioner device and so on.
3. Electrical control system
with electrical schematic.
4. Installation and operation
1) According to label connect the four columns with the transmission frame, and fix with foot bolt.
2) Hook will be installed in the board, tighten the nut.
3) Connect the power commissioning.
4) Transmission with foot switch control.
5. Maintenance
In order to ensure the good functioning of the machine, the machine should be strengthened daily maintenance and repair, during operation process if abnormality occurs, immediately stop and inspect, after troubleshooting and re-use.
According to the chain transmission adjust tension device.
Main feature
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.18kw |
| Dimension | 2520*3012*3000mm |
Our products mainly include: IG line series; Automatic sealing robot series; Low-e film edge deletion machine; Spacer bending machine series; Butyl extruder machine series; Desiccant filling machine and other auxiliary insulating glass machines. About 20 products are widely used in customized insulating glass industry, industrial aluminum alloy, building curtain wall, high-speed rail, elevator and advertising industry.
