Product Details:
|
Machine Name: | Automatic Sealing Machine | Max Size: | 2500*4000 |
---|---|---|---|
Glass Thickness: | 58 Mm | Machine Type: | New |
Using Way: | Sealing Insulating Glass | Warranty: | 1 Year |
Brand: | LIJIANG GLASS | ||
High Light: | Insulating Glass Sealants Robot Machine,58mm Glass Sealants Robot Machine,58mm Sealant Extruder |

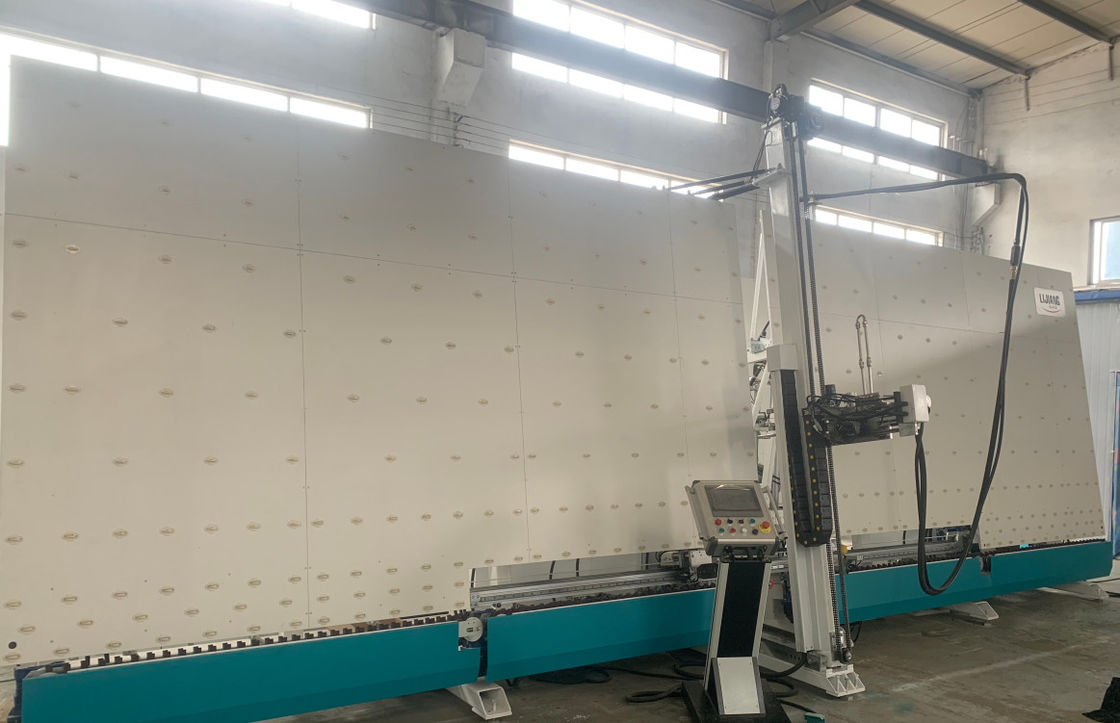

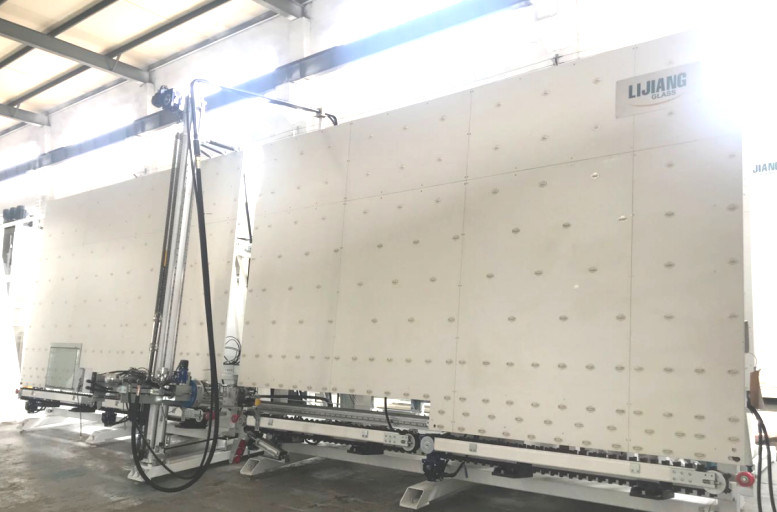

Automatic Vertical Insulating Glass Sealants Sealing Robot Machine
一. Specification
Model | LJTJ2540D |
Voltage Power | 380V 13KW |
Air Pressure | 0.5~0.7Mpa |
Extruding pressure | 32Mpa |
Max.Glass size | 2500*4000mm |
Min.Glass size | 400*300mm |
Glass thickness | 12~56mm |
Working speed | 5~40m/min |
Overall dimension | 11000*1500*4500mm |
2.2 Machine Noise
A-weighted sound pressure level | |
Stand-by state | Working state |
50 db | 85 db |
二. Function and feature
1.The machine is suitable for glass deep processing enterprise ,high automation, Reduce labor intensity, save manpower, improve production efficiency
2. Whole machine adopt man-machine touch screen interface,with memory function .
3.After coating sealant ,the glass edge and corner is full without air bubbles , smooth surface, no need to pare the corner
4. Using two sets of independent sealant supply system ( including the mixing device ), two kinds of sealants switch fast ,in one-button operation easily (Model II)
5.The width of machine is 1.5m ,small floor area, save space
6. The third section can prestore glass to improve the efficiency effectively
7.The smallest insulating glass size can be processed is 400*300mm
8.Equipped anti blocking device in the mixer
9. Servo control system adopts world famous brand (Japan YASKAWA ), the performance is stable
10. Shaft transmission to make the glass being transferred smoothly with accurate positioning.
11. Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass edge clean ,V type Block is changeable .
12. The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability
13.Suitable for triple glazing .
14.Conveying wheel on backboard adopts embedded wheel ,to make sure the glass be transported smoothly
Main Features:
• Japan Yaskawa servo system control, full automatic and high-efficiency sealing machine
• 4 sections, can storage glass
• Adopt timing belt, smooth transfer and accurate position
• Automatically repair glass corners with scraper and roller
• Automatically measure glass size, glue depth (30mm)
• Every auto-function is with manual operation
• Can coat double glass
• Shape glass with optional edges, step glass, triple glass (Optional)
• One set of booster pump controls two groups of sealants (Optional)
• Can use silicone, polysulfide and silicone structural sealants
• Glue head is in the front of the machine, which is easy for coating step glass
• Can be connected with insulating glass processing line
• With code scanning function (Optional)
Technical data
Max. glass size | 2500*4000mm |
Min. glass size | 400*300mm |
Glass thickness | 12-50mm |
Working speed | 5-40m/min |
Air pressure | ≥0.6MPa |
Squeeze pressure | 32MPa |
Voltage power | 380V 15kw |
Overall dimension | 11000*2000*3500mm |
Electrical parameters
NAME | ORIGIN | BRAND |
Servo motor | Japan | YASKAWA |
Servo driver | Japan | YASKAWA |
CPU | Japan | YASKAWA |
Low voltage component | Germany | SIEMENS |
Guideway | Taiwan | HIWIN |
Switching power supply | Taiwan | MW |
Sensor switch | Korea | AUTONICS |
Pneumatic component | Japan | SMC |
Touch screen | China | GAOSHAN |
Servo motor | Japan | YASKAWA |
Servo driver | Japan | YASKAWA |
