Product Details:
|
| Name: | Glass Edge Grinding Machine | Application: | Polishing Single Glass |
|---|---|---|---|
| Power Supply: | 50 Hertz | Total Power: | Three Kw |
| Dimension: | 2000*1200*820 Millimeter | Using Way: | Double Glazing Production Machine |
| High Light: | 3kw Glass Edge Grinding Machine,IG Glass Edge Grinding Machine,IG Glass Edge Polishing Machine |
||

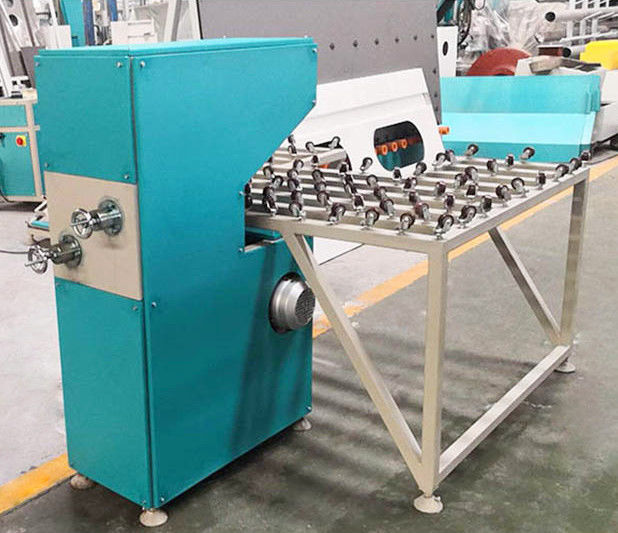

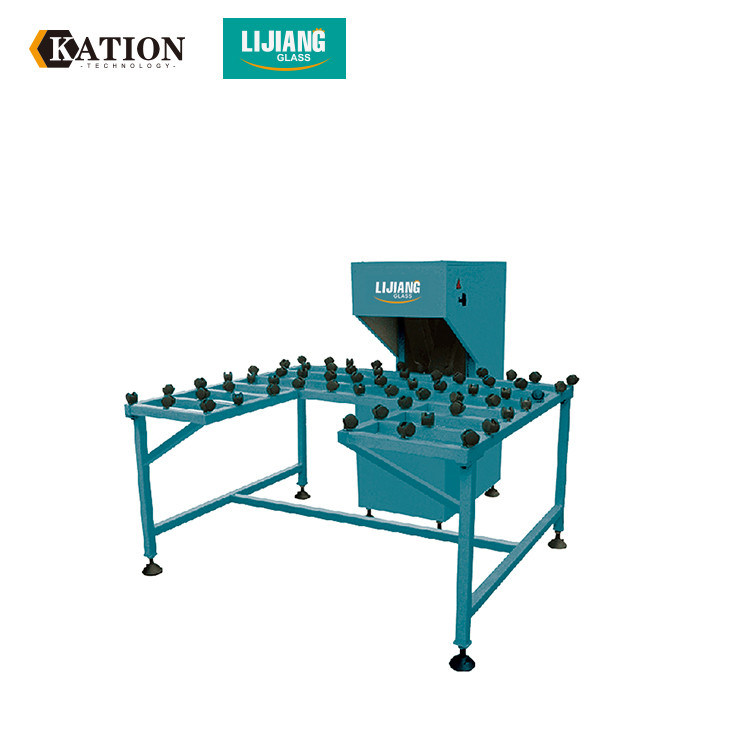

IG Glass Edge Polishing Machine Glass Edge Grinding Machine
1.Overview of IG Glass Edge Polishing Machine
IG Glass Edge Polishing Machine is used to carry out rough grinding and chamfering after the cutting of the original glass sheet. With easy and simple operation, low labor intensity and high production efficiency, it is indispensable for safety production of all kinds of windows and doors.
IG Glass Edge Polishing Machine is suitable for the edge-finishing of the raw glass for insulating glass.
2.Features of IG Glass Edge Polishing Machine
1. IG Glass Edge Polishing Machine is used for polishing single glass, to prevent to hurt workman from sharp glass edge
2. IG Glass Edge Polishing Machine adopts type of ‘x’ to polish the up and down edge at the same time
3. IG Glass Edge Polishing Machine can be Easy operating, simple and flexible
4.IG Glass Edge Polishing Machinee Used for Insulating glass production machine
Technical parameter
| Power supply | 380V 50Hz |
| Total power | 3kw |
| Dimension | 2000*1200*820mm |
